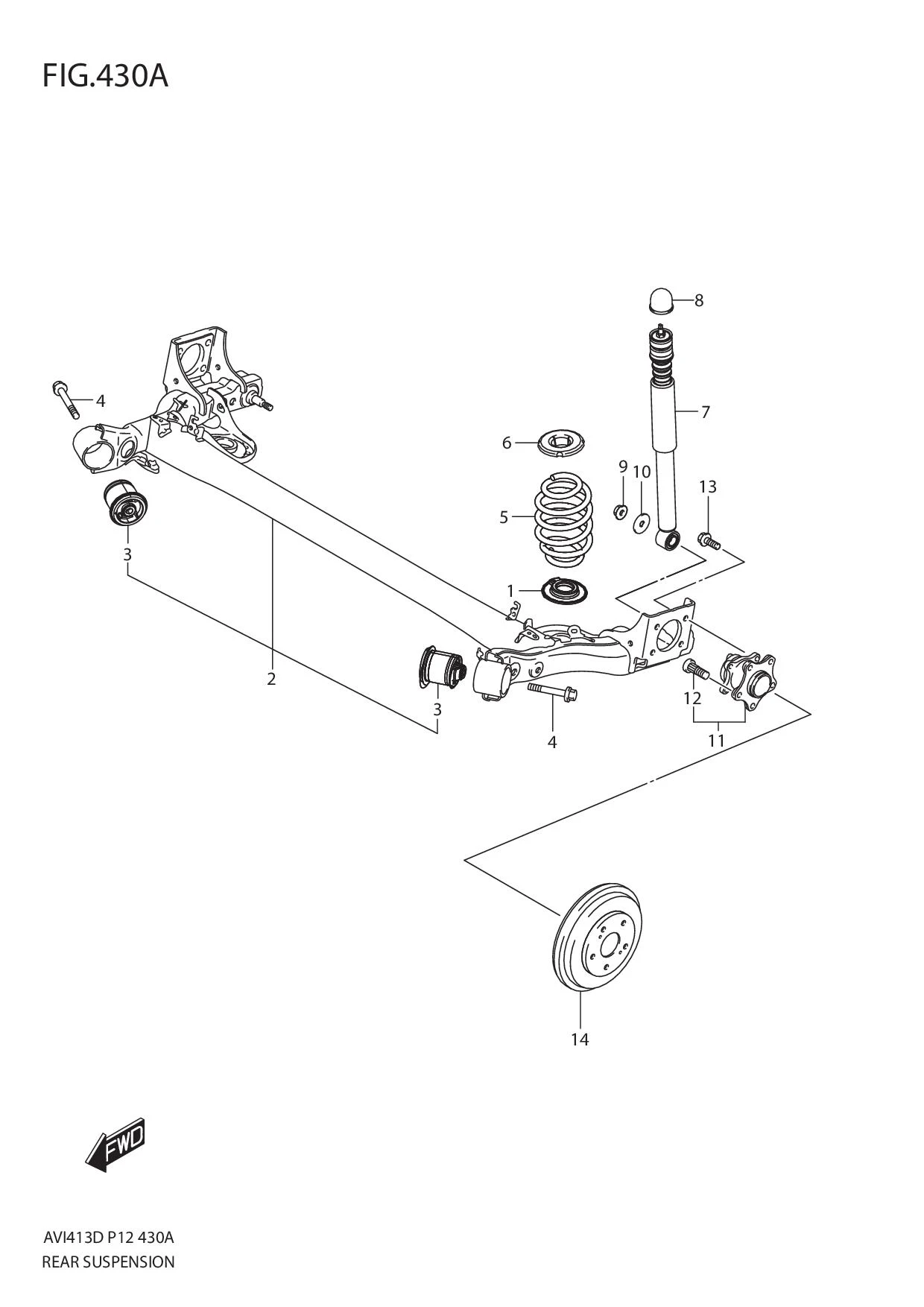

FIG.430A REAR SUSPENSION

FIG.430A REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 41312M74L00-000 SEAT,REAR SPRING RUBBER LOWER 2 Rp16.000
2 46500-77M00-000 BEAM,REAR SUSPENSION 1 Rp2.917.000
3 46221-77M00-000 •BUSHING,TRAILING ARM 2 Rp153.000
4 46411-60M00-000 BOLT REAR TRAILING 2 Rp82.000
5 41311-77M00-000
SUB: 41311B77M00N000		 SPRING,REAR COIL 2 Rp244.000
6 41341-77M00-000
SUB: 41341B77M00N000		 SEAT,REAR SPRING UPPER 2 Rp34.500
7 41800M60M01-000
SUB: 41800M60M00-000		 ABSORBER ASSY,REAR SHOCK 2 -
8 41951-77M00-000
SUB: 41951B77M00N000		 CAP,REAR SHOCK ABSORBER 2 Rp17.000
9 08316-1012C-000 NUT 2 Rp19.500
10 09164-12027-000 WASHER 2 Rp273.000
11 43402-77M00-000
SUB: 43402B77M00N000		 HUB ASSY,WHEEL 2 Rp1.717.000
12 09119-12012-000 •BOLT,HUB 10 Rp14.500
13 09103-12502-000 BOLT,REAR HUB 8 Rp39.000
14 43511-81K01-000
SUB: 43511B81K00N000		 DRUM,BRAKE REAR 2 Rp696.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
