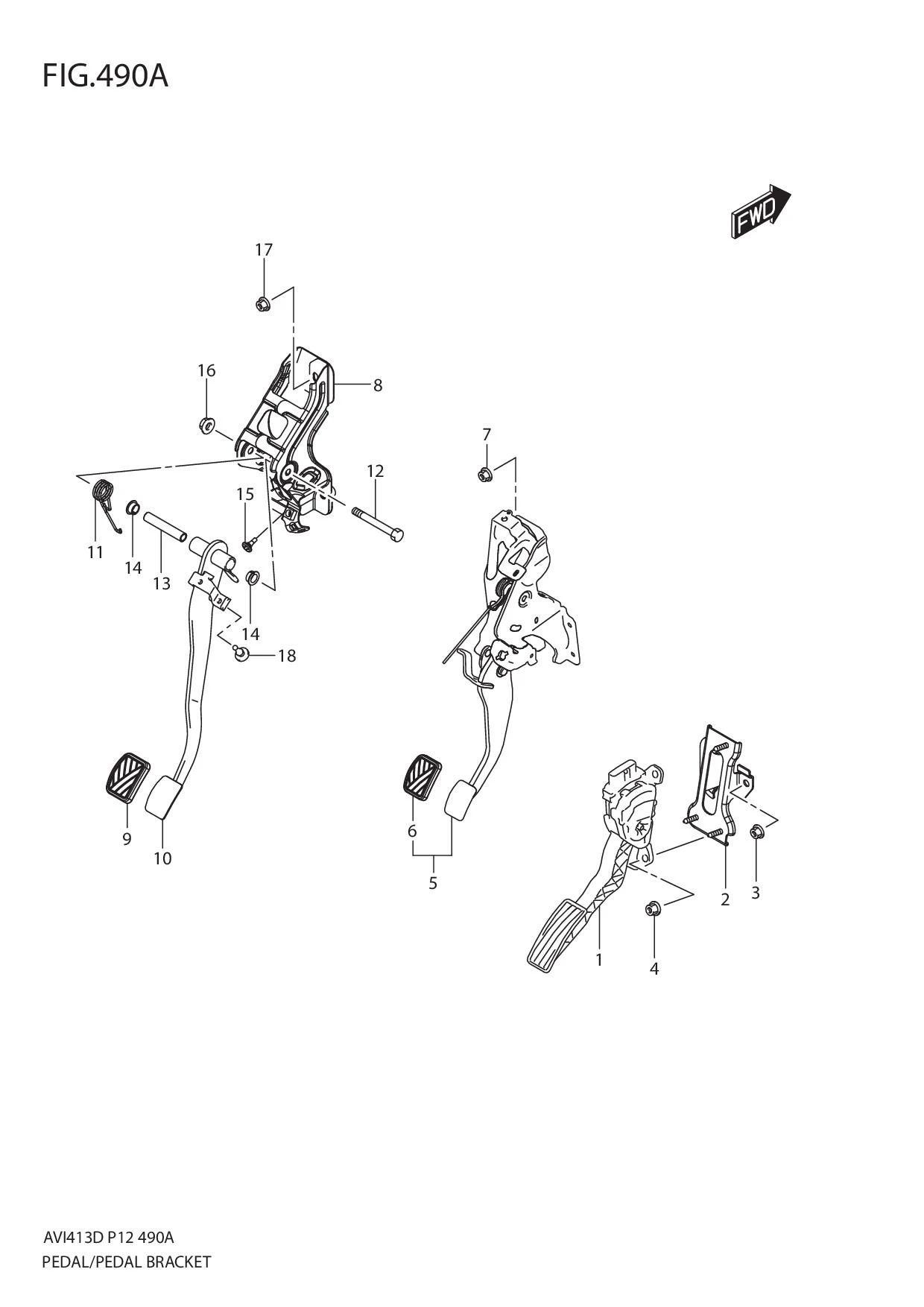

FIG.490A PEDAL/PEDAL BRACKET

FIG.490A PEDAL/PEDAL BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 49400M74L01-000 PEDAL ASSY,ACCELERATOR 1 Rp962.500
2 49511-68L00-000
SUB: 49511B68L00N000		 BRACKET,ACCELERATOR PEDAL 1 Rp58.000
3 09159-08127-000
SUB: 09159M08153-000		 NUT 3 Rp11.000
4 08316-1006A-000 NUT 3 Rp2.000
5 49600M60M30-000 PEDAL ASSY,BRAKE 1 Rp342.000
6 49751M58J00-000 •PAD,BRAKE PEDAL 1 Rp9.500
7 09159-08127-000
SUB: 09159M08153-000		 NUT 1 Rp11.000
8 49720M58R00-000 BRACKET,CLUTCH 1 Rp143.000
9 49751M58J00-000 PAD 1 Rp9.500
10 49810M58R00-000 PEDAL,CLUTCH 1 Rp121.000
11 49891-68L10-000
SUB: 49891-68L00-000		 SPRING,CLUTCH PEDAL 1 Rp69.500
12 09100-10226-000 BOLT (10X85) 1 Rp19.500
13 09180-10121-000 SPACER 1 Rp38.500
14 09306M13004-000
SUB: 09307M13005-000		 BUSH 2 Rp11.500
15 09321M06026-000 CUSHION 1 Rp4.500
16 08316-1010A-000 NUT 1 Rp3.500
17 09159-08127-000 NUT 1 Rp11.000
18 49825M74L00-000 CUSHION,CLUTCH PEDAL START SW 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
