ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFTFIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449B ROAD WHEEL/TIRE (W_ALM_WL)FIG.451B STEERING WHEEL (W_AUDIO SWITCH)FIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEM (W_ABS)FIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

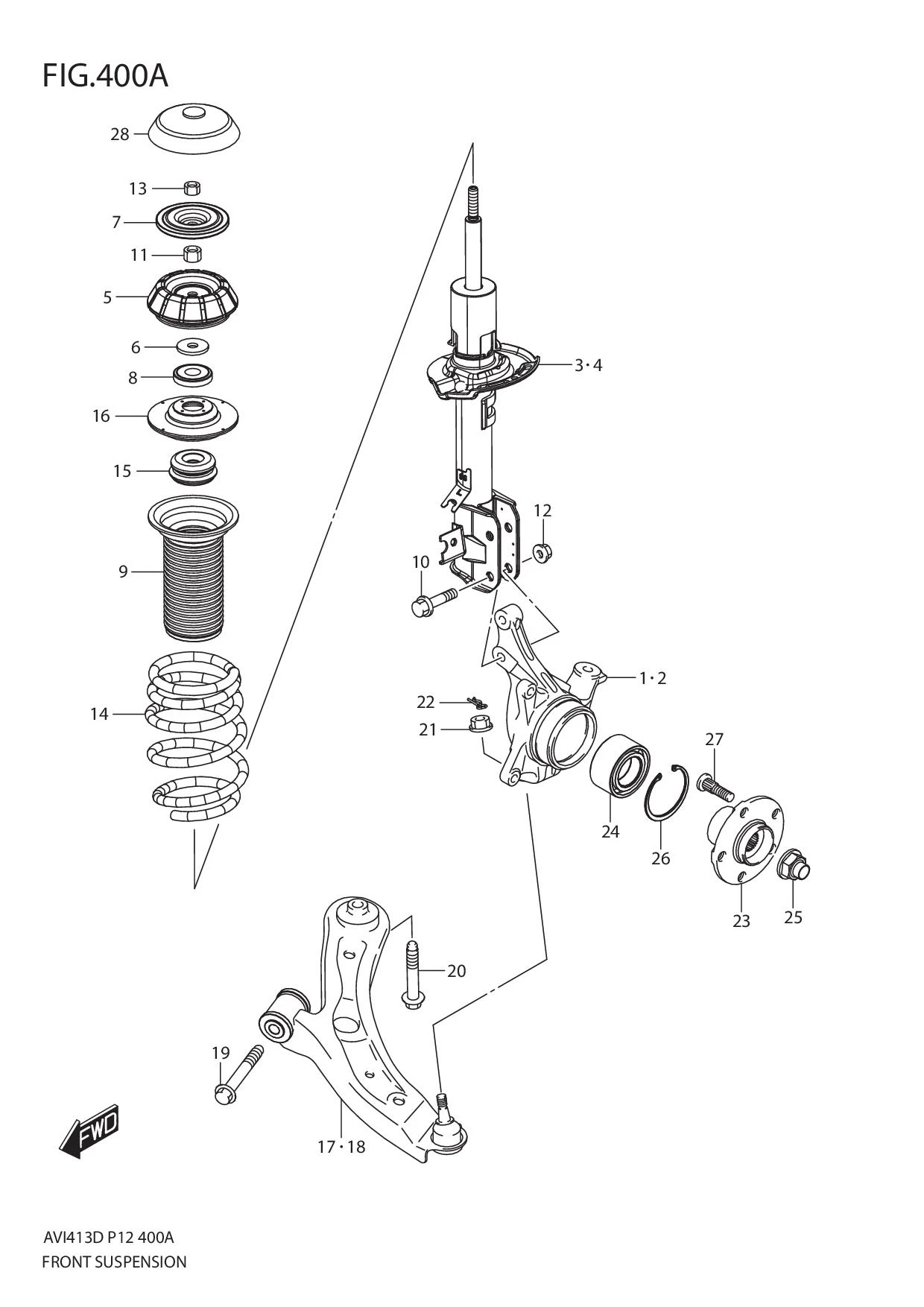

FIG.400A FRONT SUSPENSION

FIG.400A FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111-77M00-000
SUB: 45111B77M00N000		 KNUCKLE,STEERING RH 1 Rp867.500
2 45151-77M00-000
SUB: 45151B77M00N000		 KNUCKLE,STEERING LH 1 Rp867.500
3 41601-77M11-000
SUB: 41601B77M00N000		 STRUT ASSY,FR SUSPENSION RH 1 Rp1.311.000
4 41602-77M11-000
SUB: 41602B77M00N000		 STRUT ASSY,FR SUSPENSION LH 1 Rp1.311.000
5 41710M74L00-000 SUPPORT,FRONT STRUT 2 Rp219.000
6 41711M57K00-000 PLATE,STRUT BEARING 2 Rp10.500
7 41720M83K10-000
SUB: 41720B77M00N000		 STOPPER,FRONT STRUT REBOUND 2 Rp62.500
8 41742M57K10-000 BEARING,FRONT STRUT 2 Rp81.000
9 41931M68L10-000
SUB: 41931M68L00-000		 COVER,STRUT DUST 2 Rp104.000
10 09103-12118-000 BOLT (12X50) 4 Rp33.000
11 41721M83K00-000 NUT,STRUT SUPPORT LOWER 2 Rp10.000
12 41616M76M00-000 NUT,STRUT BRACKET 4 Rp15.000
13 08310-0012A-000
SUB: 08310-00123L000		 NUT 2 Rp17.500
14 41111M60M51-000 SPRING,FRONT COIL 2 Rp448.000
15 42111M74L00-000 STOPPER,FRONT BUMP 2 Rp103.000
16 41230M74L00-000 SEAT,FRONT SPRING UPPER 2 Rp103.000
17 45201-77M00-000 ARM ASSY,FRONT SUSPENSION RH 1 Rp562.000
18 45202-77M00-000 ARM ASSY,FRONT SUSPENSION LH 1 Rp562.000
19 09135-14011-000 BOLT (14X90) 2 Rp65.500
20 09135-14018-000 BOLT (14X77) 2 Rp70.500
21 09159-12069-000 NUT 2 Rp23.000
22 09385-12002-000
SUB: 09385B12002N000		 CLIP 2 Rp4.500
23 43421-77M00-000
SUB: 43421B77M00N000		 HUB,FRONT WHEEL 2 Rp522.000
24 43440-77M00-000
SUB: 43440B77M00N000		 BEARING,FRONT WHEEL 2 Rp522.500
25 43459-65J00-000 NUT,DRIVE SHAFT 2 Rp75.500
26 09381-84004-000 CIRCLIP 2 Rp53.500
27 09119-12012-000 BOLT,FRONT HUB 10 Rp14.500
28 41724-58M00-000 CAP,STRUT ROD 2 Rp33.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
