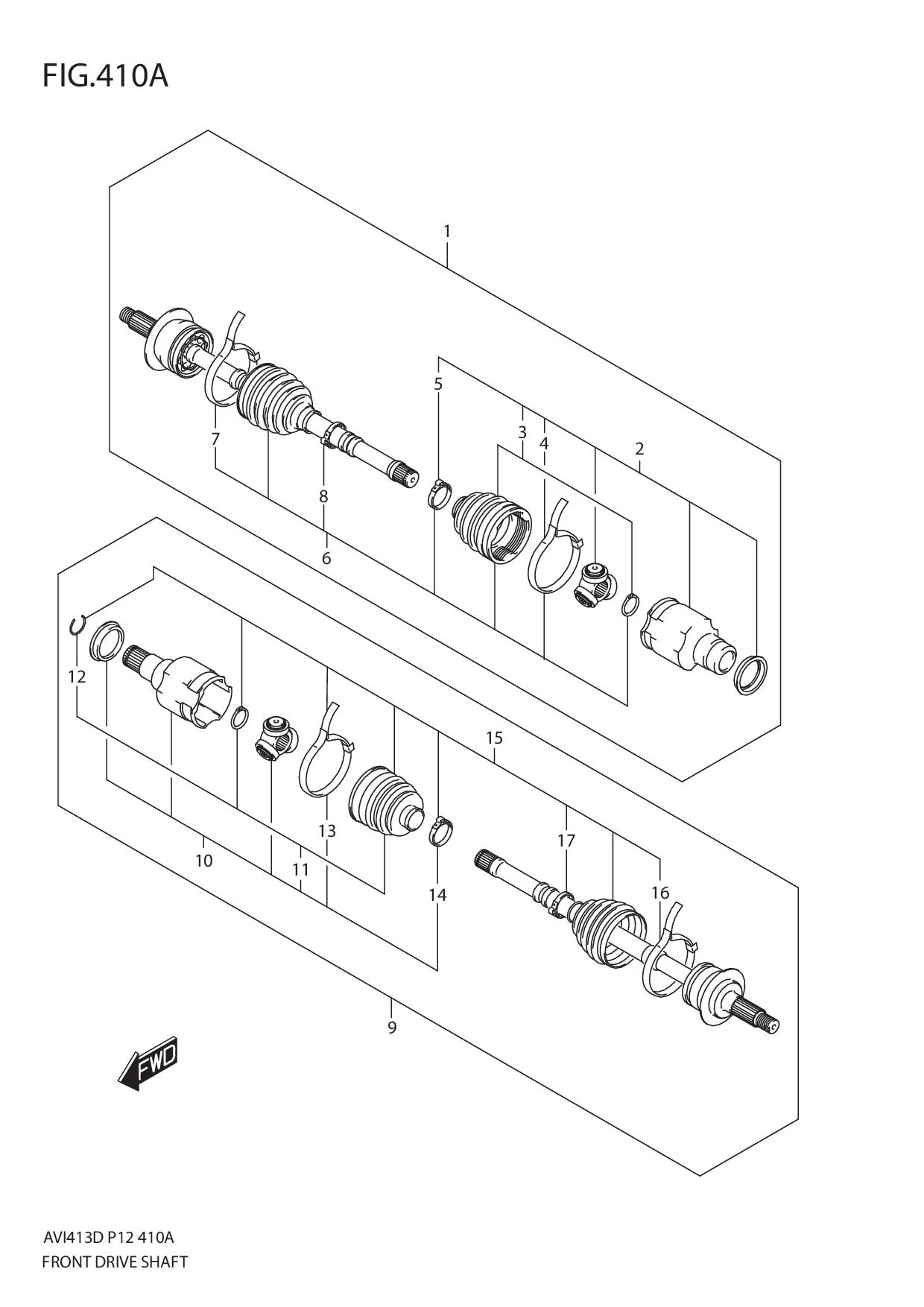

FIG.410A FRONT DRIVE SHAFT

FIG.410A FRONT DRIVE SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 44101M60M80-000 SHAFT ASSY,FRONT DRIVE RH 1 Rp3.041.000
2 44116M60M80-000 •JOINT ASSY,DIFF SIDE 1 Rp1.541.000
3 44120M60M80-000 ••BOOT SET,DIFF SIDE 1 Rp256.000
4 44121M60M80-000 ••BAND,BIG 1 Rp49.000
5 44123M60M80-000 ••BAND,SMALL 1 Rp43.500
6 44138M60M80-000 •BOOT SET,WHEEL SIDE 1 Rp528.000
7 44122M60M00-000 ••BAND,BIG 1 Rp75.500
8 44123M60M80-000 ••BAND,SMALL 1 Rp43.500
9 44102M60M80-000 SHAFT ASSY,FRONT DRIVE LH 1 Rp3.041.000
10 44117M60M80-000 •JOINT ASSY,DIFF SIDE 1 Rp1.531.000
11 44119M60M80-000 ••BOOT SET 1 Rp232.500
12 44111M60M00-000 •••CLIP 1 Rp25.000
13 44121M60M80-000 ••BAND,BIG 1 Rp49.000
14 44123M60M80-000 ••BAND SMALL 1 Rp43.500
15 44118M60M80-000 •BOOT SET,WHEEL SIDE 1 Rp531.500
16 44122M60M00-000 ••BAND,BIG 1 Rp75.500
17 44123M60M80-000 ••BAND,SMALL 1 Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
