ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFTFIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449B ROAD WHEEL/TIRE (W_ALM_WL)FIG.451B STEERING WHEEL (W_AUDIO SWITCH)FIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEM (W_ABS)FIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

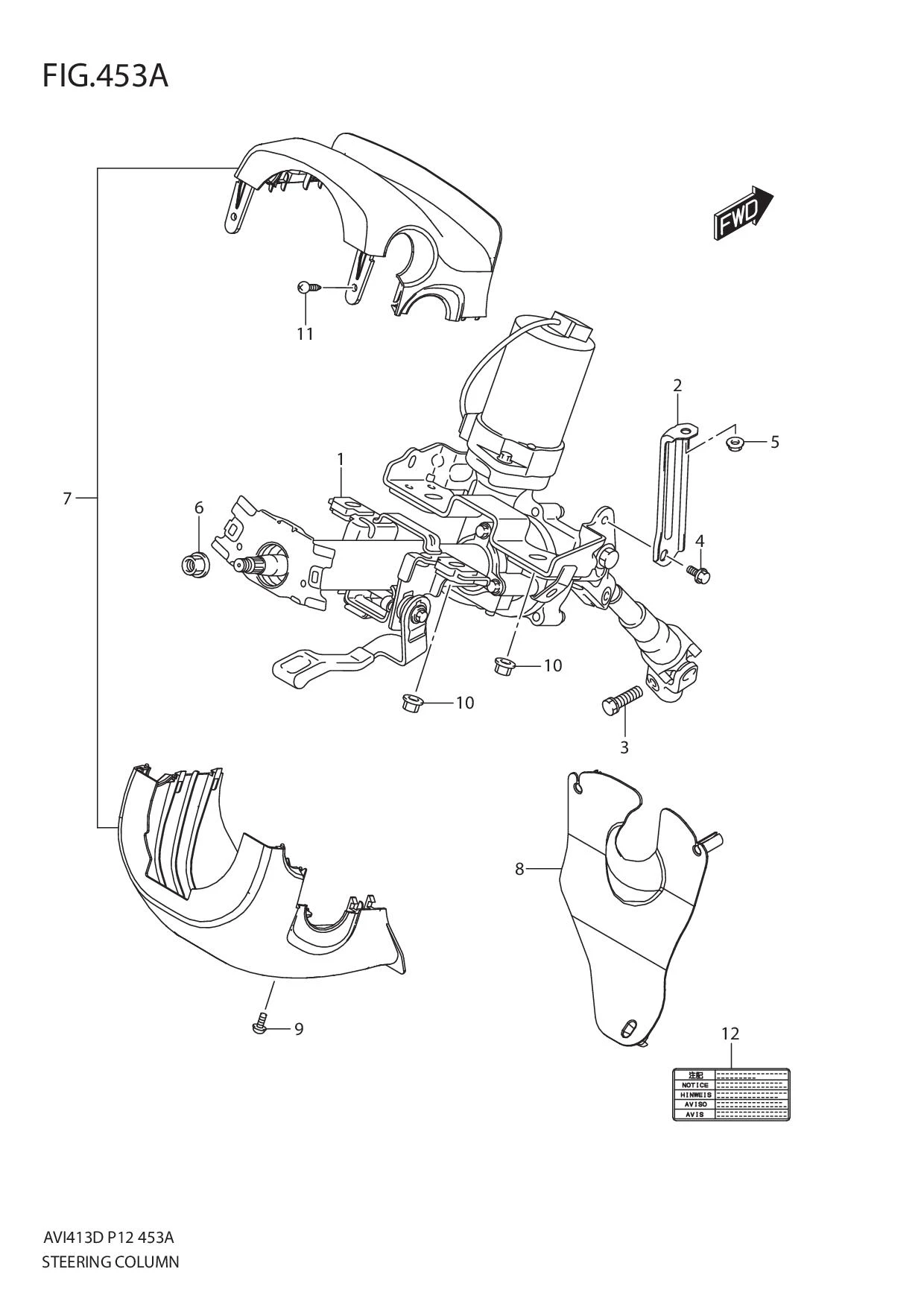

FIG.453A STEERING COLUMN

FIG.453A STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48200M60M10-000 COLUMN ASSY COLLAPSABLE STEERING 1 Rp13.835.500
2 48251-60M00-000
SUB: 48251B60M00N000		 REINF,STEERING COLUMN 1 Rp12.000
3 09117-08106-000 BOLT (8X30) 1 Rp23.500
4 01550-0612B-000 BOLT 1 Rp16.500
5 08316-1006A-000 NUT 1 Rp2.000
6 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
7 48400-60M00-V6N
SUB: 48400B60M00NV6N		 COVER ASSY,STEERING COLUMN (BEIGE) 1 Rp60.000
8 48481-68L00-000
SUB: 48481B68L00N000		 COVER,STEERING JOINT 1 Rp16.000
9 09136M05030-000 SCREW (5X12) 1 Rp4.500
10 09159-08127-000 NUT 4 Rp11.000
11 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 2 Rp3.500
12 DISCONTINUE
SUB: 79172-80G02-000		 LABEL,STEERING JOINT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
