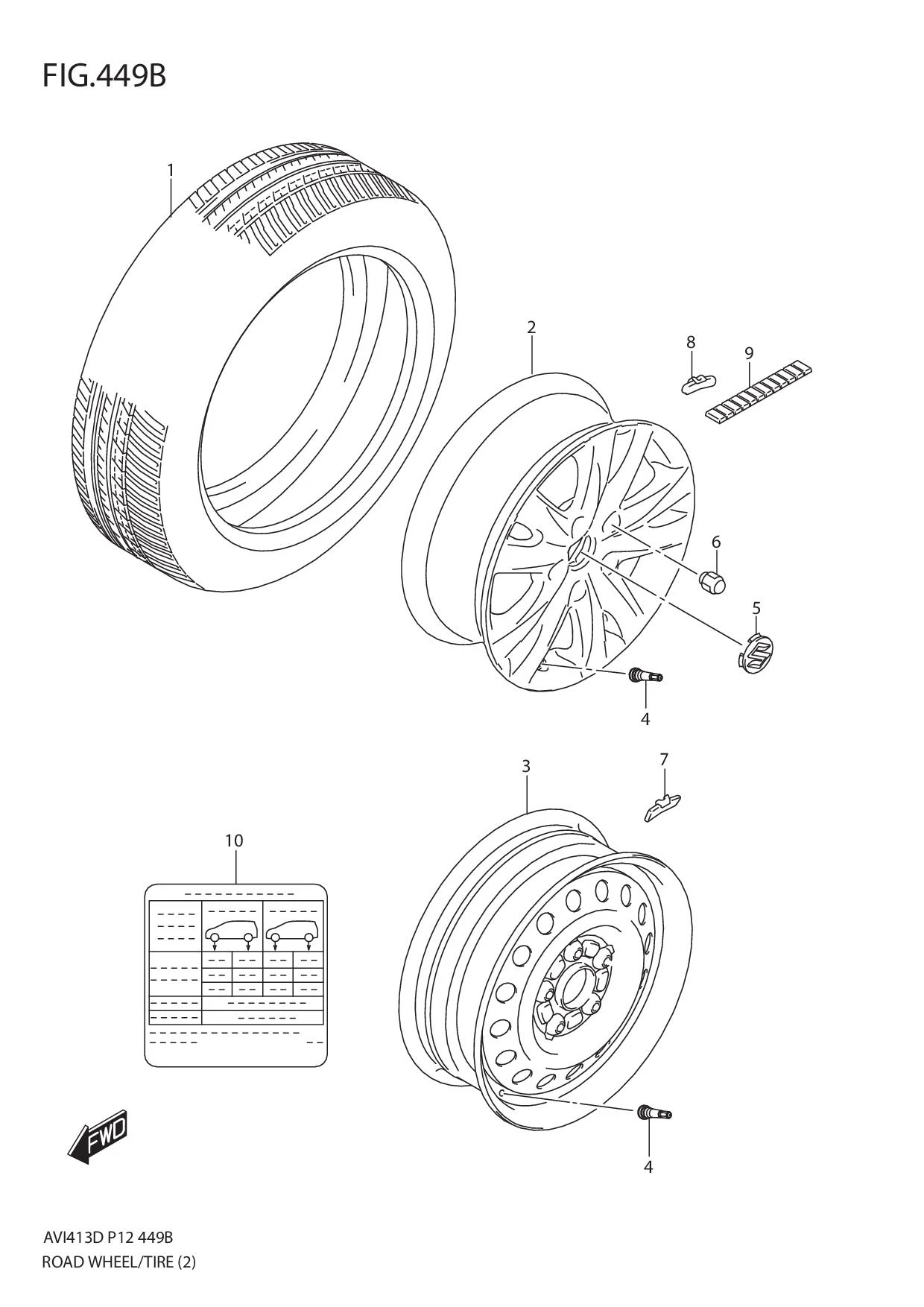

FIG.449B ROAD WHEEL/TIRE (W_ALM_WL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	43110-68J00-000	TIRE (185/65R15)	5	Rp1.214.000
2	43210-77M60-27N	WHEEL,ALUMI (15X5 1/2J) (SILVER)	4	Rp1.685.500	EXCEL
3	43210-77M00-09L SUB: 43210B77M00N09L	WHEEL,SPARE (15X5 1/2J)	1	Rp925.500	STEEL WHEEL
4-1	43130-60E10-000	VALVE (TR414) (BS)	5	Rp57.000	MADE IN JAPAN
5	43252-83S00-0PG SUB: 43252-63J10-0PG	CAP,WHEEL CENTER	4	Rp174.500
6	09159-12079-000 SUB: 09159B12050N000	NUT,WHEEL	20	Rp23.500
7-5	43221-59J40-000	WEIGHT,WHEEL BALANCE (25G)	0	Rp47.000	W_STL_WL
7-10	43221-59J90-000	WEIGHT,WHEEL BALANCE (50G)	0	Rp60.000	W_STL_WL
7-9	43221-59J80-000	WEIGHT,WHEEL BALANCE (45G)	0	Rp57.000	W_STL_WL
7-8	43221-59J70-000	WEIGHT,WHEEL BALANCE (40G)	0	Rp54.500	W_STL_WL
7-7	43221-59J60-000	WEIGHT,WHEEL BALANCE (35G)	0	Rp52.500	W_STL_WL
7-6	43221-59J50-000	WEIGHT,WHEEL BALANCE (30G)	0	Rp49.500	W_STL_WL
7-4	43221-59J30-000	WEIGHT,WHEEL BALANCE (20G)	0	Rp44.000	W_STL_WL
7-3	43221-59J20-000	WEIGHT,WHEEL BALANCE (15G)	0	Rp42.000	W_STL_WL
7-2	43221-59J10-000	WEIGHT,WHEEL BALANCE (10G)	0	Rp40.000	W_STL_WL
7-1	43221-59J00-000	WEIGHT,WHEEL BALANCE (5G)	0	Rp32.000	W_STL_WL
8-2	DISCONTINUE SUB: 43222-73H10-000	WEIGHT,WHEEL BALANCE (10G)	0	-	W_ALM_WL
8-9	DISCONTINUE SUB: 43231-54G10-000	WEIGHT,WHEEL BALANCE (45G)	0	-	W_ALM_WL
8-8	DISCONTINUE SUB: 43228-73H10-000	WEIGHT,WHEEL BALANCE (40G)	0	-	W_ALM_WL
8-7	DISCONTINUE SUB: 43227-73H10-000	WEIGHT,WHEEL BALANCE (35G)	0	-	W_ALM_WL
8-6	DISCONTINUE SUB: 43226-73H10-000	WEIGHT,WHEEL BALANCE (30G)	0	-	W_ALM_WL
8-5	DISCONTINUE SUB: 43225-73H10-000	WEIGHT,WHEEL BALANCE (25G)	0	-	W_ALM_WL
8-4	DISCONTINUE SUB: 43224-73H10-000	WEIGHT,WHEEL BALANCE (20G)	0	-	W_ALM_WL
8-3	DISCONTINUE SUB: 43223-73H10-000	WEIGHT,WHEEL BALANCE (15G)	0	-	W_ALM_WL
8-1	43221-73H10-000	WEIGHT,WHEEL BALANCE (5G)	0	Rp33.000	W_ALM_WL
9-1	DISCONTINUE SUB: 43221-73H00-000	WEIGHT,WHEEL BALANCE (5G)	0	-	W_ALM_WL
9-2	DISCONTINUE SUB: 43222-73H00-000	WEIGHT,WHEEL BALANCE (10G)	0	-	W_ALM_WL
9-3	DISCONTINUE SUB: 43223-73H00-000	WEIGHT,WHEEL BALANCE (15G)	0	-	W_ALM_WL
9-4	DISCONTINUE SUB: 43224-73H00-000	WEIGHT,WHEEL BALANCE (20G)	0	-	W_ALM_WL
9-5	DISCONTINUE SUB: 43225-73H00-000	WEIGHT,WHEEL BALANCE (25G)	0	-	W_ALM_WL
9-6	DISCONTINUE SUB: 43226-73H00-000	WEIGHT,WHEEL BALANCE (30G)	0	-	W_ALM_WL
9-7	DISCONTINUE SUB: 43227-73H00-000	WEIGHT,WHEEL BALANCE (35G)	0	-	W_ALM_WL
9-8	DISCONTINUE SUB: 43228-73H00-000	WEIGHT,WHEEL BALANCE (40G)	0	-	W_ALM_WL
9-9	DISCONTINUE SUB: 43231-73H00-000	WEIGHT,WHEEL BALANCE (45G)	0	-	W_ALM_WL
10	DISCONTINUE SUB: 79161B77M00N000	PLACARD,TIRE INFORMATION	1	-
