Suspension - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

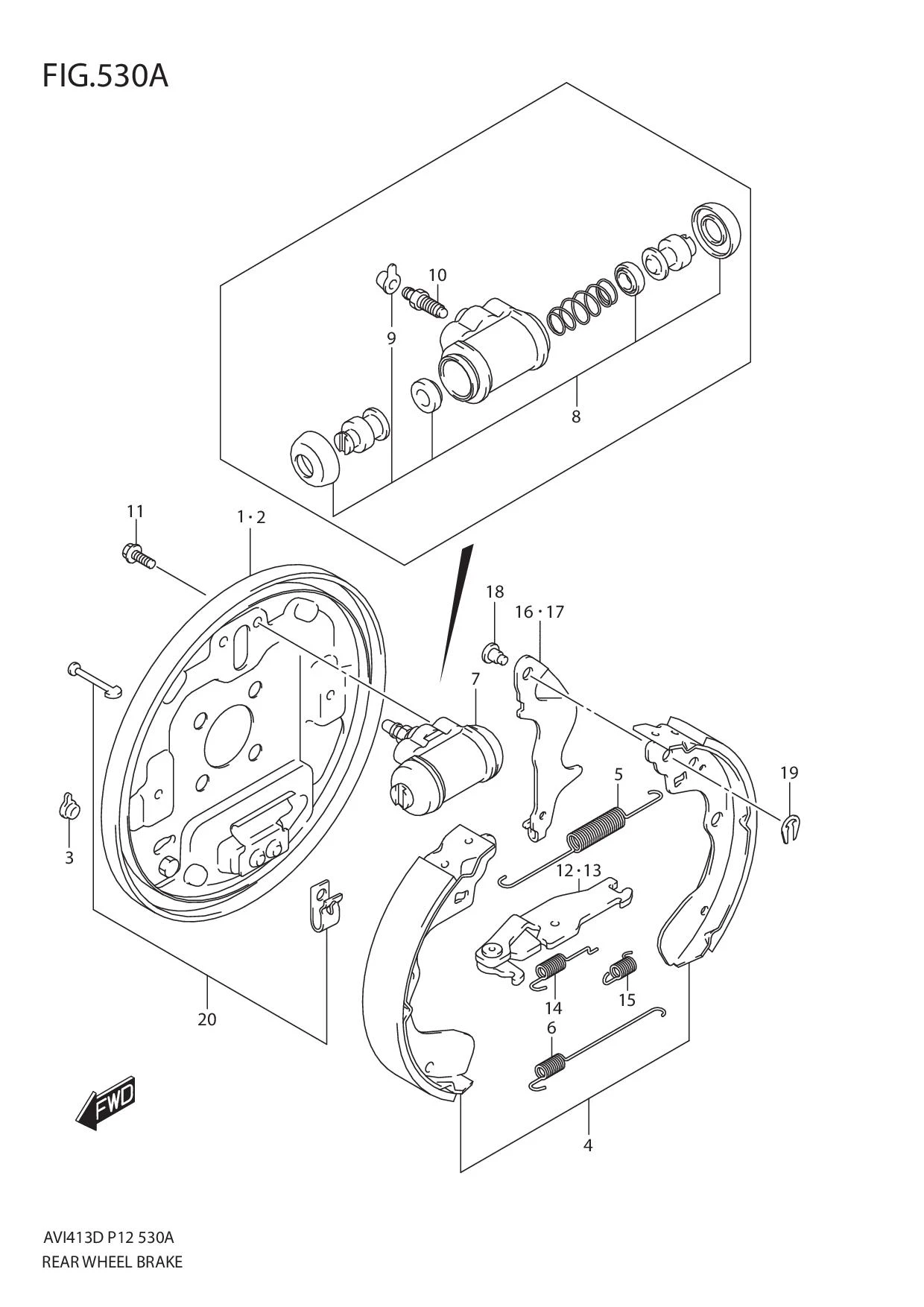

No	No. Part	Description	Qty	Price Per Pcs
1	53101M66T00-000 SUB: 53101M55K00-000	PLATE,RR BRAKE BACKING RH	1	Rp473.000
2	53102M66T00-000 SUB: 53102M55K00-000	PLATE,RR BRAKE BACKING LH	1	Rp473.000
3	53141M55K00-000	PLUG,BACKING PLATE	2	Rp12.000
4	53200M55K11-000 SUB: 53200M55K10-000	SHOE SET,BRAKE	1	Rp503.500
5	53231M55K00-000	SPRING,SHOE RETURN	2	Rp13.500
6	53232M55K00-000	SPRING,SHOE RETURN,LOWER	2	Rp12.500
7	53402M55K00-000	CYLINDER ASSY,REAR WHEEL	2	Rp305.500
8	53400M55K00-000	•CUP SET,REAR WHEEL CYLINDER	2	Rp42.500
9	55156M55K00-000	••CAP,BLEEDER PLUG	2	Rp5.500
10	55473M55K00-000	•PLUG,BLEEDER	2	Rp12.500
11	53131M55K00-000	BOLT	4	Rp9.000
12	53701M55K00-000	STRUT ASSY,BRAKE RH	1	Rp163.000
13	53702M55K00-000	STRUT ASSY,BRAKE LH	1	Rp163.000
14	53714M55K00-000	SPRING,QUADRANT	2	Rp9.000
15	53715M55K00-000	SPRING,ANTI RATTLE	2	Rp80.000
16	53751M55K10-000 SUB: 53751M55K00-000	LEVER,PARKING SHOE RH	1	Rp67.500
17	53761M55K10-000 SUB: 53761M55K00-000	LEVER,PARKING SHOE LH	1	Rp67.500
18	53731M55K00-000	PIN	2	Rp30.000
19	53753M55K00-000	E RING,PARKING LEVER	2	Rp33.000
20	53240M55K00-000	CLIP SET,SHOE HOLD DOWN	2	Rp44.500
