ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.410A FRONT DRIVE SHAFTFIG.418A FRONT SUSPENSION FRAMEFIG.430A REAR SUSPENSIONFIG.449B ROAD WHEEL/TIRE (W_ALM_WL)FIG.451B STEERING WHEEL (W_AUDIO SWITCH)FIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEM (W_ABS)FIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKE

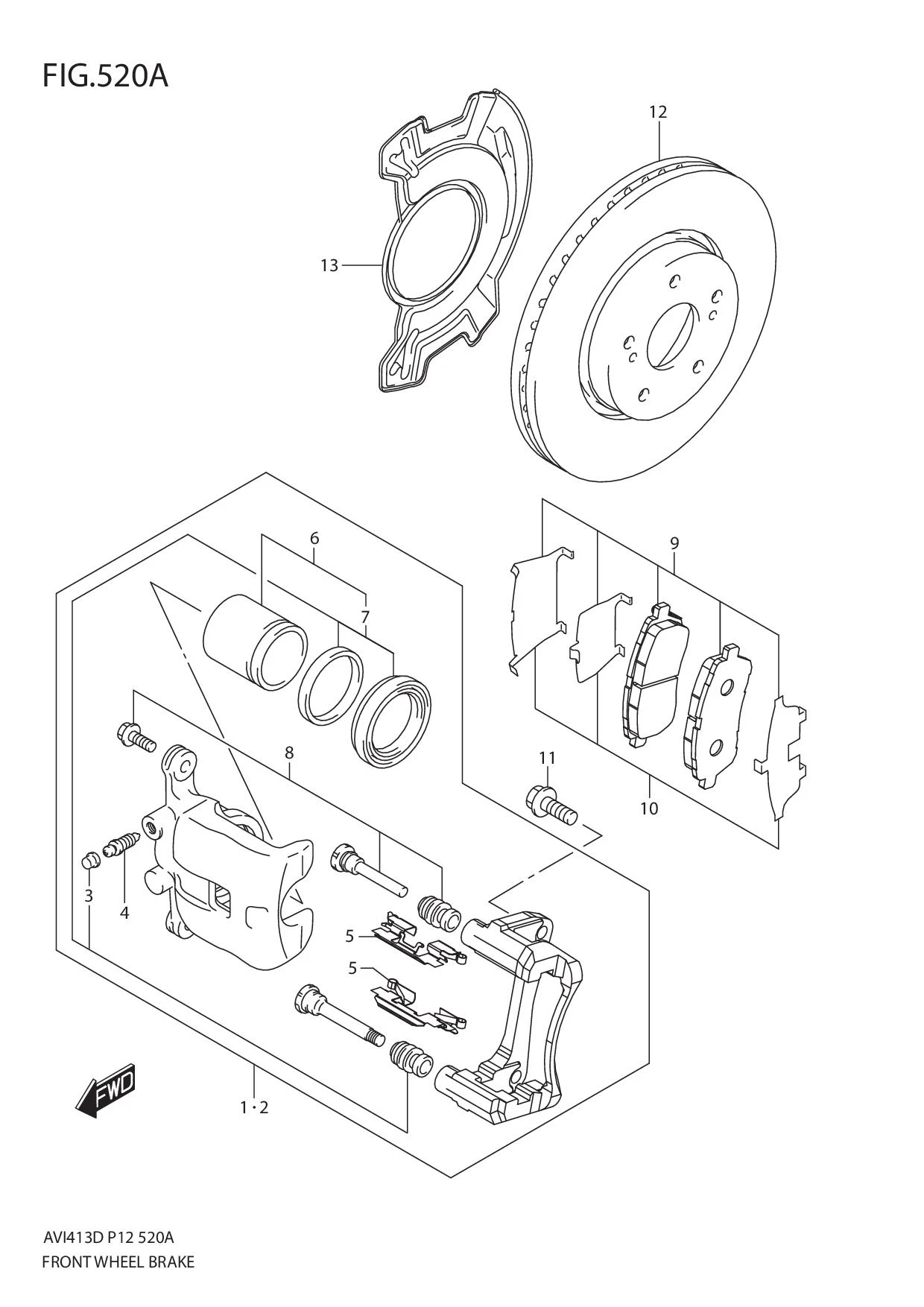

FIG.520A FRONT WHEEL BRAKE

FIG.520A FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55103M60M00-000 CALIPER ASSY,FRONT BRAKE RH 1 Rp2.012.000
2 55104M60M00-000 CALIPER ASSY,FRONT BRAKE LH 1 Rp2.022.000
3 55156M66310-000 •CAP,BLEEDER PLUG 2 Rp23.500
4 55151M55K00-000 •PLUG,BLEEDER 2 Rp11.500
5 55234M60M00-000 •CLIP 4 Rp90.500
6 55830M60M00-000 •BOOT & PISTON SET 2 Rp347.000
7 55840M60M00-000 ••BOOT SET 2 Rp190.500
8 55850M60M00-000 •PIN SET,SLIDING 2 Rp247.000
9 55810M60M00-000 PAD SET 1 Rp1.079.500
10 55820M60M00-000 •SHIM SET 1 Rp179.500
11 55164M74L00-000 BOLT,BRAKE CALIPER 4 Rp17.000
12 55311M60M00-000 DISC,FRONT BRAKE 2 Rp720.000
13 55321M60M00-000 COVER,BRAKE DISC DUST 2 Rp32.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
