< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSION FIG.408A FRONT STABILIZER FIG.410A FRONT DRIVE SHAFT FIG.418A FRONT SUSPENSION FRAME FIG.430A REAR SUSPENSION FIG.449B ROAD WHEEL/TIRE (W_ALM_WL)FIG.451B STEERING WHEEL (W_AUDIO SWITCH)FIG.453A STEERING COLUMN FIG.480A STEERING UNIT FIG.490A PEDAL/PEDAL BRACKET FIG.500A BRAKE MASTER CYLINDER FIG.503A BRAKE PIPING FIG.510A ANTI LOCK BRAKE SYSTEM (W_ABS)FIG.520A FRONT WHEEL BRAKE FIG.530A REAR WHEEL BRAKE FIG.542A PARKING BRAKE

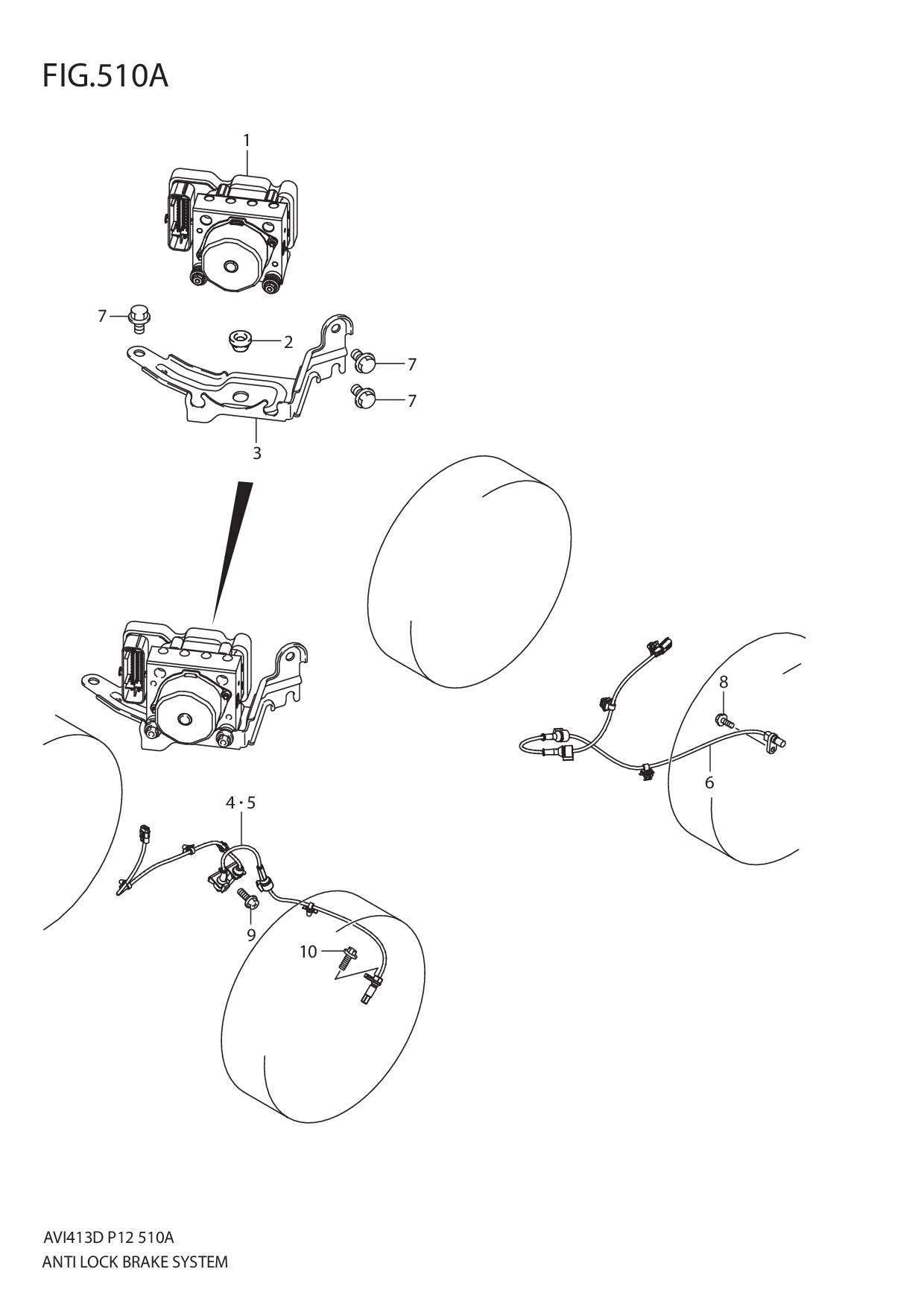

FIG.510A ANTI LOCK BRAKE SYSTEM (W_ABS)

FIG.510A ANTI LOCK BRAKE SYSTEM (W_ABS)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	56110-77M80-000	ACTUATOR SUB ASSY,ESP	1	Rp4.046.500
2	56121-58J00-000	DAMPER,ACTUATOR MOUNT	1	Rp40.500
3	56160M74L50-000	BRACKET,ACTUATOR	1	Rp103.500
4	56210-68L01-000	SENSOR,FR WHEEL RH	1	Rp648.500
5	56220-68L01-000	SENSOR,FR WHEEL LH	1	Rp640.000
6	56310-68L01-000	SENSOR,RR WHEEL	2	Rp567.500
7	01551-0812A-000	BOLT	3	Rp18.500
8	01550-0612B-000	BOLT	2	Rp16.500
9	02162-0616A-000	BOLT	2	Rp3.000
10	02162-0616A-000	BOLT	2	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
