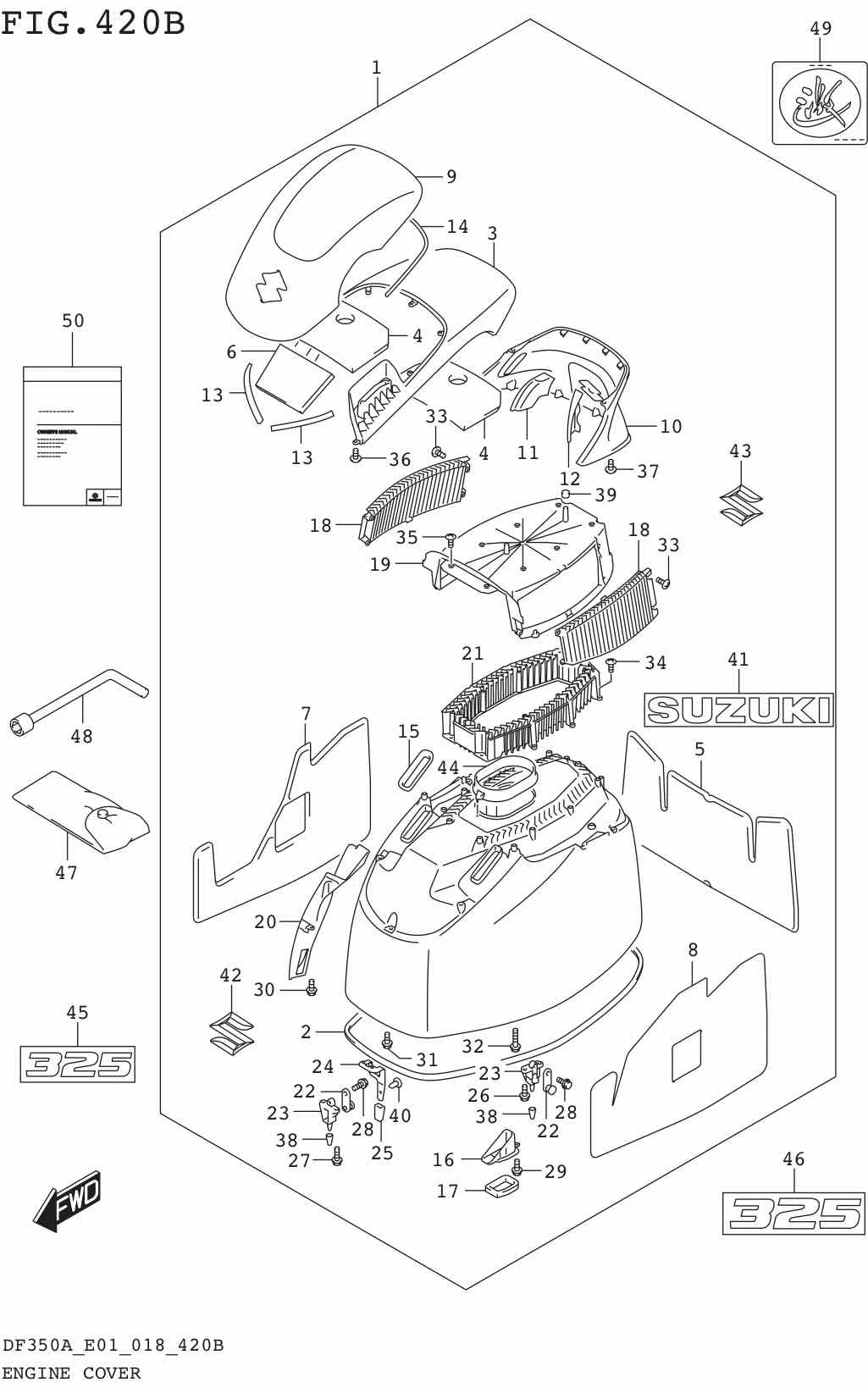

FIG.420B ENGINE COVER (DF325A E01)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	61420-98821-BBK	COVER SET, ENGINE (WHITE/SILVER)	1	-	FOR Y5S
1-1	61420-98821-AML	COVER SET, ENGINE (BLACK/SILVER)	1	Rp16.230.000	FOR YAY
2	61414-98L00-000	.SEAL, ENGINE COVER STRIP	1	Rp598.000
3-1	61421-98L00-YAY	.COVER, ENGINE TOP RR (BLACK)	1	Rp6.358.000
3-2	61421-98L00-Y5S	.COVER, ENGINE TOP RR (WHITE)	1	Rp6.640.000
4	61425-98L00-000	.SILENCER, TOP COVER	2	Rp277.000
5	61426-98L10-000	.SILENCER, ENGINE COVER	1	Rp745.500
6	61427-98L00-000	.SILENCER, ENGINE COVER	1	Rp188.000
7	61428-98L00-000	.SILENCER, ENGINE COVER STBD	1	Rp845.500
8	61429-98L00-000	.SILENCER, ENGINE COVER PORT	1	Rp845.500
9	61430-98L00-20H	.COVER, ENGINE TOP FR (SILVER)	1	Rp2.928.500
10	61432-98L00-20H	.GARNISH, AIR INTAKE (SILVER)	1	Rp3.790.000
11	61433-98L00-000	.COVER, AIR INTAKE STBD	1	Rp141.000
12	61434-98L00-000	.COVER, AIR INTAKE PORT	1	Rp141.000
13	61437-98L00-000	.SEAL, AIR INTAKE	2	Rp30.000
14	61438-98L00-000	.SEAL, ENGINE COVER TOP	1	Rp114.000
15	61439-98L00-000	.SEAL, AIR VENT NO.2	2	Rp63.000
16	61475-98L00-000	.GUIDE, AIR VENT	1	Rp63.500
17	61476-98L00-000	.SEAL, AIR VENT NO.1	1	Rp48.500
18	61561-98L00-000	.LOUVER, AIR INTAKE OUTER	2	Rp239.500
19	61562-98L00-000	.FRAME, AIR INTAKE	1	Rp413.500
20	61565-98L00-000	.DUCT, AIR INTAKE	1	Rp224.000
21	61591-98L00-000	.LOUVER, AIR INTAKE INNER	1	Rp542.000
22	61610-98L00-000	.FASTENER COMP	3	Rp148.000
23	61621-93J01-000	.BRACKET, FASTENER	3	Rp220.500
24	61682-98L00-000	.STAND, ENGINE COVER	1	Rp199.000
25	61683-98L00-000	.CUSHION, ENGINE COVER STAND	1	Rp102.000
26	01547-0616A-000 SUB: 01547-06167-000	.BOLT	4	Rp6.500
27	01547-0620B-000 SUB: 01547-06207-000	.BOLT	2	Rp6.500
28	01550-0616C-000	.BOLT	3	Rp3.500
29	01550-0616C-000	.BOLT	1	Rp3.500
30	01550-0616C-000	.BOLT	2	Rp3.500
31	01550-0616C-000	.BOLT	3	Rp3.500
32	01550-0630C-000	.BOLT	2	Rp15.000
33	03542-06169-000	.SCREW	8	Rp16.000
34	03542-06169-000	.SCREW	9	Rp16.000
35	03542-06169-000	.SCREW	14	Rp16.000
36	03542-06169-000	.SCREW	7	Rp16.000
37	03542-06169-000	.SCREW	13	Rp16.000
38	61619-98J00-000 SUB: 09329-10024-000	.CUSHION	3	Rp50.000
39	09329-12004-000	.CUSHION	2	Rp12.000
40	09409-05302-5PK	.CLIP (BLACK)	1	Rp11.500
41	61441-98L00-000	.MARK, SUZUKI	2	Rp1.365.000
42	68111-93J00-000	.EMBLEM, "S"	1	Rp133.000
43	77811M63J00-0PG SUB: 77811-63J00-0PG	.EMBLEM, "S"	1	Rp58.000
44	61416-98L00-000	.GUARD, AIR INTAKE	1	Rp247.500
45	61422-98L60-000	MARK, EMBLEM FRONT (325)	1	Rp544.500
46	61435-98L60-000	MARK, EMBLEM REAR (325)	1	Rp639.000
47	09800-81835-000	TOOL SET	1	Rp369.500
48	09816-00175-000	WRENCH, BOX (8)	1	Rp111.000
49-1	61424-98L00-000	MARK, EMBLEM (GEKI FOR YAY)	1	Rp612.000
49-2	61424-98L10-000	MARK, EMBLEM (GEKI FOR Y5S)	1	Rp612.000
50-1	99011-98L20-054	MANUAL, OWNER'S	1	Rp158.000
50-2	99011-98L20-059	MANUAL, OWNER'S	1	Rp158.000
