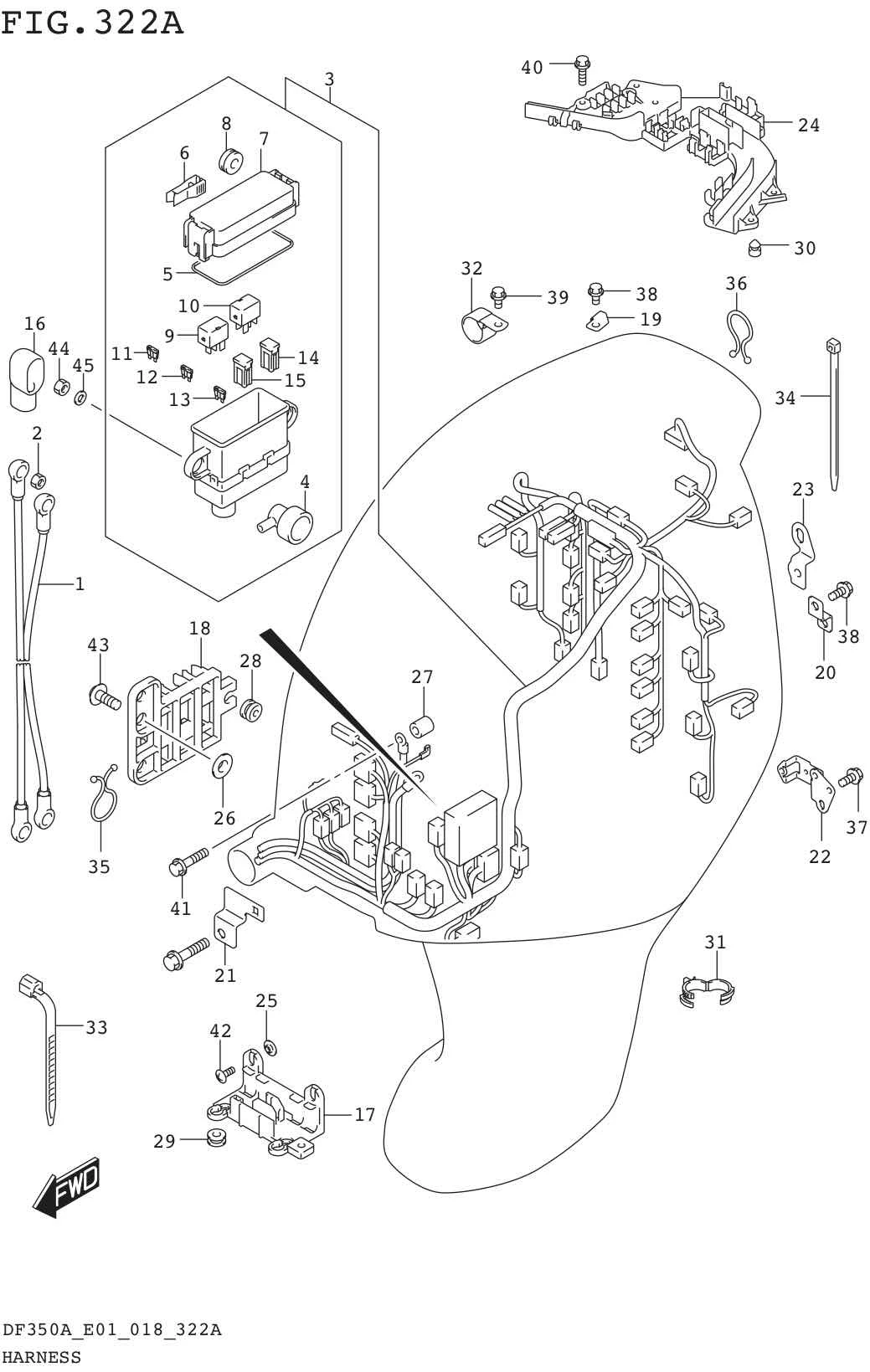

FIG.322A HARNESS (DF350A)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	33810-98L00-000	CABLE ASSY, STARTER MOTOR	1	Rp2.982.500
2	08316-10087-000	NUT	1	Rp17.000
3-2	36610-98L20-000	HARNESS ASSY, WIRING	1	Rp9.783.000	FROM VIN.811006
3-3	36610-98L11-000 SUB: 36610-98L10-000	HARNESS ASSY, WIRING	1	Rp16.008.000	FROM VIN.812086
3-1	DISCONTINUE SUB: 36610-98L00-000	HARNESS ASSY, WIRING	1	-	UP TO VIN.811005 ->36610-98L20 USED WITH 33411-98L10(6PCS)
4	36618-43410-000	.CAP, OIL PRESSURE SWITCH	1	Rp20.500
5	36721-96J00-000	.O RING, UPR COVER	1	Rp95.000
6	36737-96J00-000	.PULLER, FUSE	1	Rp81.500
7	36738-98J00-000	.COVER, FUSE CASE UPR	1	Rp154.000
8	09320-08510-000 SUB: 09320-08021-000	.CUSHION	2	Rp15.500
9	38860-76F01-000	.RELAY ASSY	1	Rp47.000	FOR MAIN
10	38860-76F01-000	.RELAY ASSY	1	Rp47.000	FOR START
11	09481-10501-000	.FUSE (10A)	2	Rp12.000
12	09481-15501-000	.FUSE (15A)	5	Rp12.000
13	09481-30501-000	.FUSE (30A)	3	Rp13.000
14	09481-40401-000	.FUSE (40A)	1	Rp49.500
15	09481-60401-000	.FUSE (60A)	2	Rp44.500
16	36612-96J00-000	CAP, TERMINAL	1	Rp37.500
17	36616-98L00-000	HOLDER, CABLE	1	Rp57.000
18	36616-98L10-000	HOLDER, CONNECTOR	1	Rp130.500
19	36617-88L00-000	BRACKET, PTT CABLE CLAMP	1	Rp36.000
20	36617-93J10-000	BRACKET, HARNESS	5	Rp17.000
21	36617-98L10-000	BRACKET, HARNESS	1	Rp33.000
22	36617-98L30-000	BRACKET, HARNESS	1	Rp105.500
23	36617-98L50-000	BRACKET, HARNESS	2	Rp33.000
24	36626-98L00-000	HOLDER, MAIN HARNESS	1	Rp357.500
25	09169-06053-000	WASHER	2	Rp7.500
26	09169-06053-000	WASHER	2	Rp7.500
27	09180-08229-000	SPACER (8.1X16X17)	1	Rp32.000
28	09320-04013-000 SUB: 09320-04009-000	BUSH	1	Rp17.500
29	DISCONTINUE SUB: 09320-08076-000	GROMMET	2	-
30	09321-06013-000	CUSHION	1	Rp8.000
31	09403-25001-000	CLAMP	1	Rp24.500
32	09403-26401-000	CLAMP	1	Rp29.500
33	36990-25G00-000 SUB: 09407-11401-000	CLAMP (L:95)	1	Rp13.000
34	09407-19401-000 SUB: 09407-25402-000	CLAMP (L:250)	1	Rp31.500
35	DISCONTINUE SUB: 09408-00008-000	CLIP (ID:20)	3	-
36	09408-00327-000	CLIP, HARNESS (ID:42)	4	Rp30.500
37	01547-06127-000	BOLT	2	Rp10.500
38	01550-0612C-000	BOLT	7	Rp19.500
39	01550-0612C-000	BOLT	1	Rp19.500
40	01550-0620C-000	BOLT	4	Rp5.500
41	01550-08357-000	BOLT	1	Rp24.000
42	02142-0616A-000 SUB: 02142-06167-000	SCREW	2	Rp3.000
43	02142-0616A-000 SUB: 02142-06167-000	SCREW	2	Rp3.000
44	08310-00067-000	NUT	1	Rp13.000
45	08321-01067-000	LOCK WASHER	1	Rp13.500
