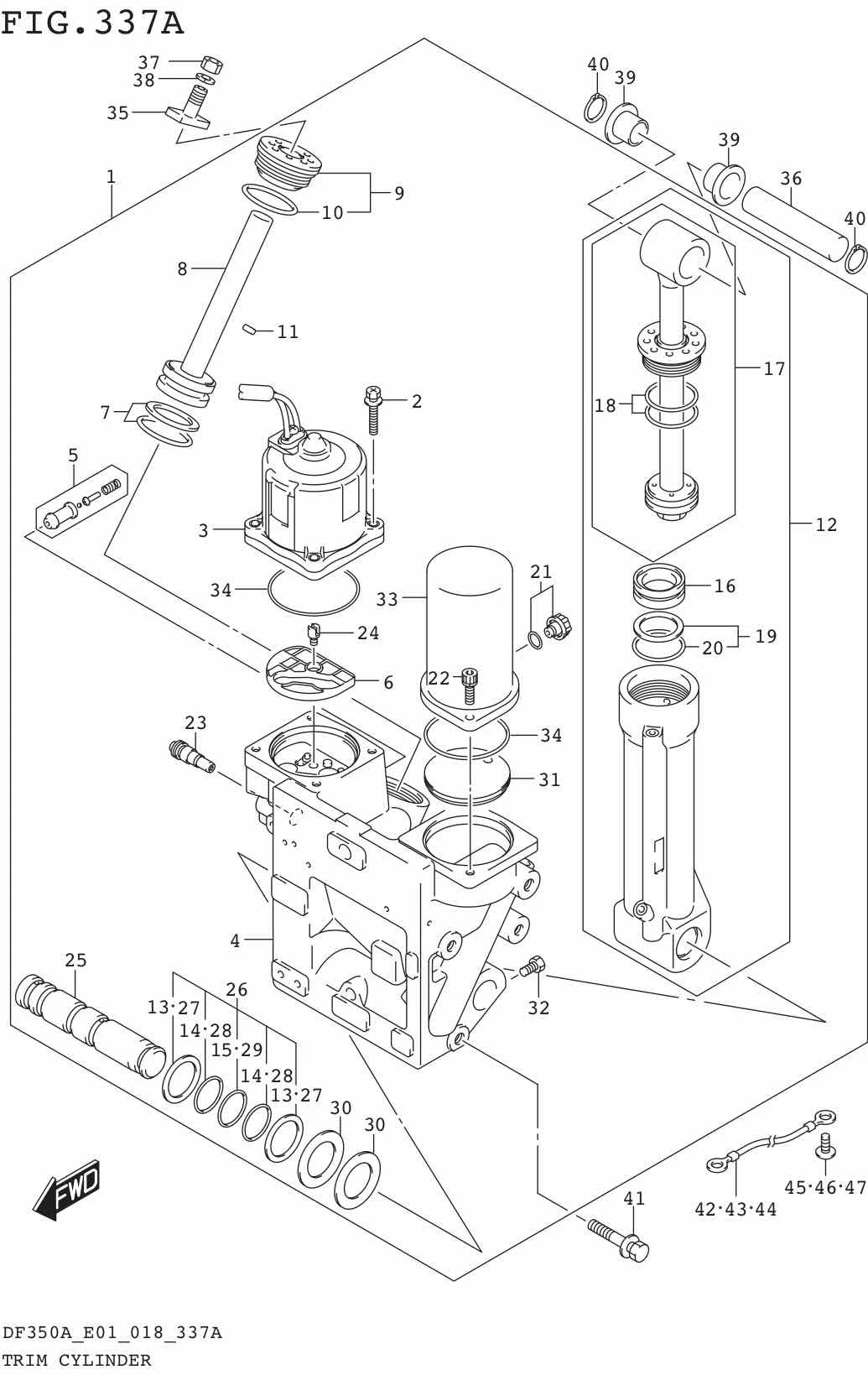

FIG.337A TRIM CYLINDER

No	No. Part	Description	Qty	Price Per Pcs
1	48000-98L00-000	TRIM ASSY, POWER WITH TILT	1	Rp19.163.000
2	31281-92J10-000	.BOLT	4	Rp86.500
3	38100-98L02-000 SUB: 38100-98L00-000	.MOTOR ASSY, PTT	1	Rp7.490.500
4	48500-98L00-000	.MANIFOLD ASSY	1	Rp9.114.500
5	48320-93J00-000	..VALVE SET, UP BLOW	1	Rp175.000
6	48582-95E01-000	..FILTER	1	Rp304.000
7	48605-93J00-000	..O RING SET	1	Rp98.000
8	48610-98L00-000	..PISTON / RAM	2	Rp1.879.500
9	48630-98L02-000 SUB: 48630-98L00-000	..ROD GUIDE	2	Rp650.500
10	48633-93J00-000	...O RING	2	Rp66.000
11	48691-93J00-000	..CHECK VALVE	1	Rp53.000
12	48400-98L00-000	.CYLINDER ASSY	1	Rp4.385.000
13	48451-93J00-000	..BACK UP RING	2	Rp48.500
14	48452-93J00-000	..O RING	2	Rp26.500
15	48452-93J10-000	..O RING	1	Rp30.000
16	48650-93J00-000	..PISTON, FREE	1	Rp520.000
17	48401-98L00-000	..PISTON ROD SUB ASSY	1	Rp3.226.000
18	48427-87D00-000	...O RING, PISTON	1	Rp30.500
19	48627-93J00-000	..O RING SET	1	Rp71.000
20	48427-87D00-000	...O RING, PISTON	1	Rp30.500
21	48572-87J10-000	.PLUG	1	Rp169.500
22	48862-87J20-000	.BOLT, RESERVOIR	2	Rp111.500
23	48864-93J01-000	.MANUAL VALVE	1	Rp1.094.000
24	48583-95E00-000	.JOINT, DRIVE	1	Rp95.500
25	48121-93J20-000	.SHAFT	1	Rp784.000
26	48125-93J10-000	.O RING SET	1	Rp221.000
27	48451-93J00-000	..BACK UP RING	4	Rp48.500
28	48452-93J00-000	..O RING	4	Rp26.500
29	48452-93J10-000	..O RING	2	Rp30.000
30	48126-93J00-000	.WASHER, TILT CYL TO MANIF	2	Rp149.000
31	48573-93J00-000	.COVER	1	Rp310.000
32	48128-93J11-000	.BOLT	1	Rp75.000
33	48571-93J00-000	.RESERVOIR TANK	1	Rp1.403.000
34	48585-95E00-000	.O RING	2	Rp34.000
35	48311-96J10-000 SUB: 48311-93J01-000	PAD, TRIM CYL RAM	2	Rp292.000
36	48321-93J00-000	SHAFT, TILT CYL UPPER	1	Rp384.000
37	09140-10031-000	NUT	2	Rp14.500
38	09162-10005-000	LOCK WASHER	2	Rp13.000
39	09306-24001-000	BUSH	2	Rp18.000
40	09380-21002-000	CIRCLIP	2	Rp23.500
41	09116-10175-000	BOLT (10X50)	8	Rp77.500
42	36894-87D00-000	LEAD, PTT TO ANODE (L:165)	1	Rp98.500
43	36895-87D01-000	LEAD, PTT TO ANODE (L:230)	1	Rp116.000
44	36895-87D01-000	LEAD, PTT TO ANODE (L:230)	1	Rp116.000
45	09125-06063-000	SCREW (6X10)	1	Rp15.000
46	09125-06063-000	SCREW (6X10)	1	Rp15.000
47	09125-06063-000	SCREW (6X10)	1	Rp15.000
