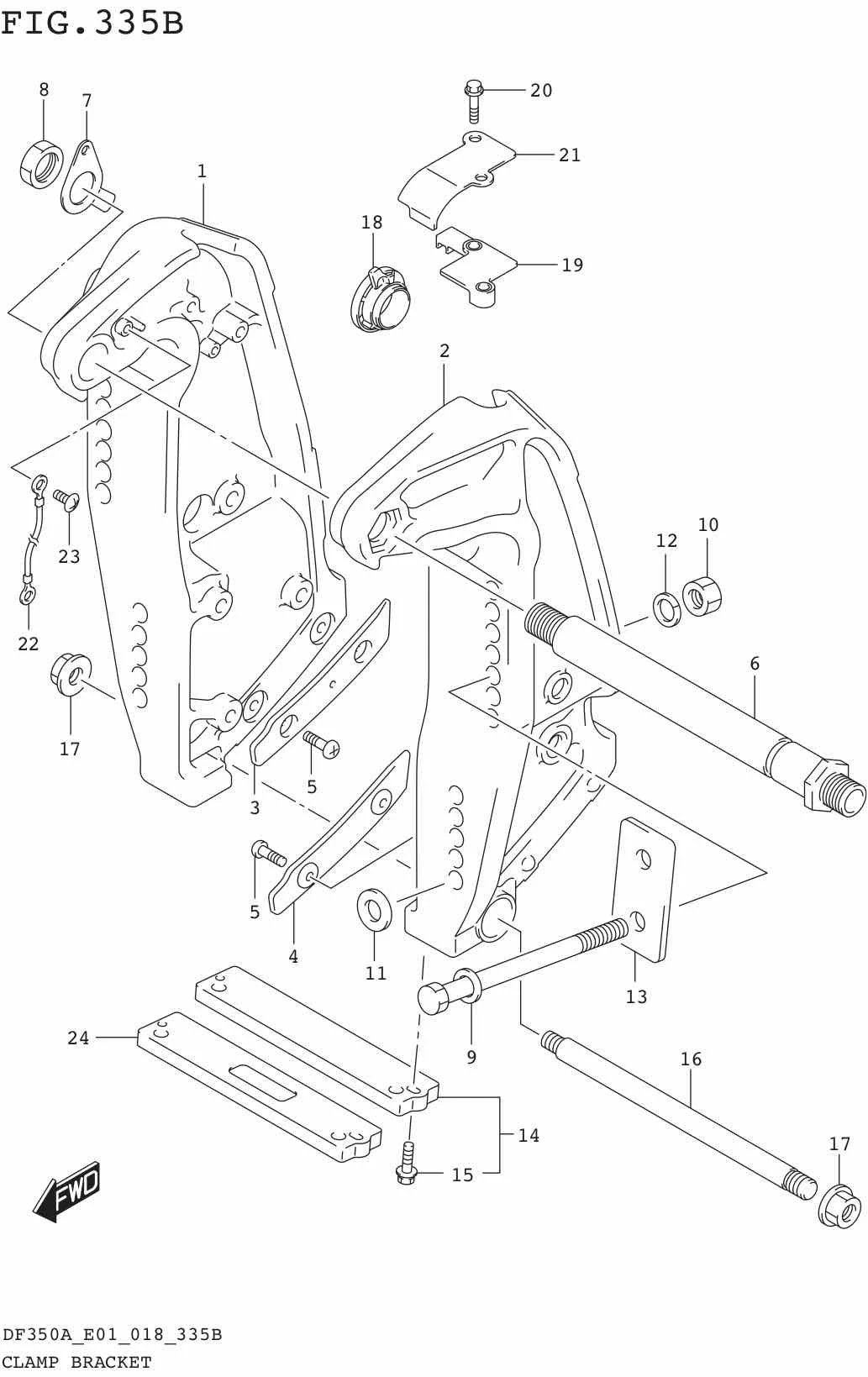

FIG.335B CLAMP BRACKET (DF350A:FROM VIN.811464)

FIG.335B CLAMP BRACKET (DF350A:FROM VIN.811464)
No No. Part Description Qty Price Per Pcs Remarks
1-2 41111-98L00-Y5S BRACKET, CLAMP STBD (WHITE) 1 Rp5.133.500
1-1 41111-98L00-YAY BRACKET, CLAMP STBD (BLACK) 1 Rp4.664.000
2-1 41121-98L00-YAY BRACKET, CLAMP PORT (BLACK) 1 Rp4.664.000
2-2 41121-98L00-Y5S BRACKET, CLAMP PORT (WHITE) 1 Rp5.133.500
3 41117-93J02-000 PLATE, CLAMP BRKT LOWER STBD 1 Rp126.000
4 41122-93J02-000 PLATE, CLAMP BRKT LOWER PORT 1 Rp126.000
5 09125-06063-000 SCREW (6X10) 4 Rp15.000
6 41130-93J12-000 SHAFT, CLAMP BRKT 1 Rp2.093.000
7 41135-93J11-000 WASHER, CLAMP BRACKET SHAFT 1 Rp50.500
8 09159-22006-000 NUT 1 Rp186.500
9-1 09100-12086-000 BOLT (12.7X150) 6 Rp244.000
9-2 09100-12085-000 BOLT (12.7X115) 1 Rp137.000 OPT
9-3 09100-12092-000 BOLT (12.7X75) 1 Rp123.500 OPT
9-4 09100-12125-000 BOLT (12.7X170) 1 Rp396.000 OPT
9-5 09100-12126-000 BOLT (12.7X190) 1 Rp402.500 OPT
10 09159-12062-000 NUT 6 Rp64.500
11 09160-13022-000 WASHER (13.2X45X3) 4 Rp105.000
12 09160-13021-000 WASHER (13.2X26X3) 6 Rp112.000
13 41155-93J02-000 PLATE, TRANSOM 2 Rp213.000
14 55320-94900-000 ANODE SET, PROTECTION 1 Rp421.000
15 09116-06121-000 .BOLT (6X25) 2 Rp18.000
16 45421-87D03-000 PIN, TILT LOCK 1 Rp288.000
17 09159-14020-000 NUT 2 Rp31.000
18 48140-93J01-000 CAM, TILT LIMIT SWITCH 1 Rp143.500
19 DISCONTINUE
SUB: 48144-93J00-000		 HOLDER, TILT LIMIT SWITCH 1 -
20 09103-06278-000 BOLT (6X25) 2 Rp14.000
21 DISCONTINUE
SUB: 48145-93J00-000		 COVER, TILT LIMIT SWITCH 1 -
22 36894-87D00-000 LEAD (CLAMP TO SWIVEL) 1 Rp98.500
23 09125-06063-000 SCREW (6X10) 2 Rp15.000
24 55321-94910-000 ANODE (MAGNESIUM) 1 Rp483.000 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
