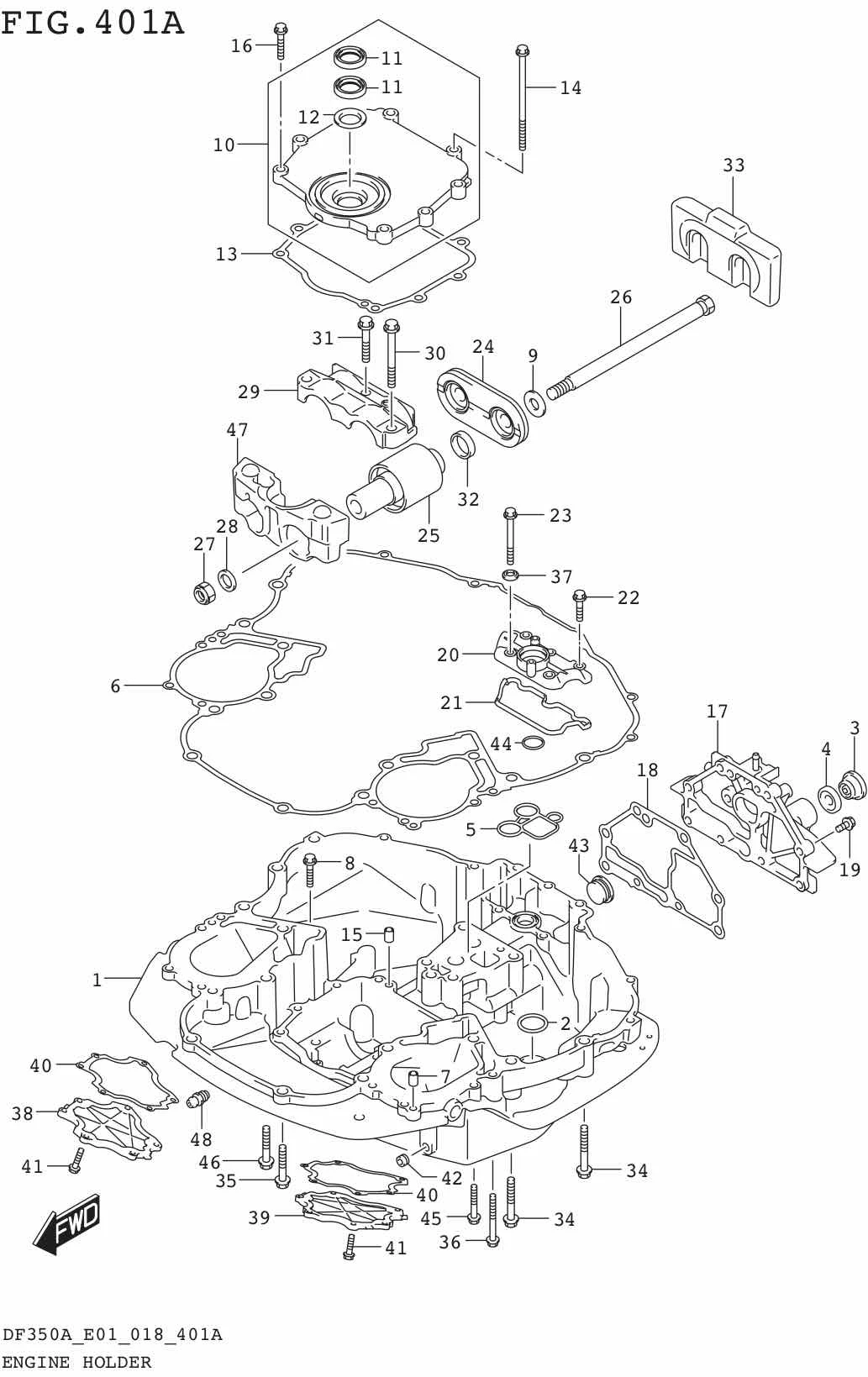

FIG.401A ENGINE HOLDER

No	No. Part	Description	Qty	Price Per Pcs
1-2	51111-98L00-Y5S	HOLDER, ENGINE (WHITE)	1	Rp9.681.000
1-1	51111-98L01-YAY SUB: 51111-98L00-YAY	HOLDER, ENGINE (BLACK)	1	Rp12.622.500
2	16519-93J00-000	SEAL, ENGINE HOLDER OIL	1	Rp42.500
3	17913-93J00-000	PLUG, WATER	1	Rp39.000
4	17914-93J01-000 SUB: 17914-93J00-000	GASKET, WATER PLUG	1	Rp25.000
5	51116-98L00-000	SEAL, WATER RETURN	1	Rp67.500
6	51211-98L00-000	GASKET, ENGINE HOLDER	1	Rp784.000
7	09206-08001-000	PIN (8X11)	2	Rp5.500
8	01550-1050A-000	BOLT	4	Rp6.000
9	09160-14076-000	WASHER (14.5X32X3)	2	Rp189.500
10	51120-98L00-000	COVER, MOUNT OIL SEAL	1	Rp1.838.000
11	51124-93J01-000	.OIL SEAL	2	Rp89.500
12	51125-93J00-000	.SCRAPER	1	Rp114.500
13	51123-98L00-000	GASKET, MOUNT OIL SEAL COVER	1	Rp63.500
14	09103-08109-000	BOLT (8X120)	2	Rp19.000
15	09206-08001-000	PIN (8X11)	2	Rp5.500
16	01550-0830A-000	BOLT	6	Rp4.000
17	51140-98L00-019	COVER, ENGINE HOLDER (BLACK)	1	Rp2.505.500
18	51142-98L00-000	GASKET, ENGINE HOLDER COVER	1	Rp61.500
19	09116-08122-000	BOLT (8X30)	8	Rp29.000
20	51151-98L00-000	COVER, ENGINE HOLDER UPPER	1	Rp1.303.000
21	51152-98L00-000	SEAL, ENGINE HOLDER UPPER COV	1	Rp134.500
22	01550-0830C-000	BOLT	3	Rp19.000
23	01550-08607-000	BOLT	2	Rp38.000
24	54120-98L00-000	PLATE, UPPER MOUNT	1	Rp919.500
25	54130-98L01-000 SUB: 54130-98L00-000	MOUNT, UPPER	2	Rp722.500
26	54112-93J00-000	BOLT, UPPER MOUNT	2	Rp795.500
27	29159-93J00-000	NUT, UPPER MOUNT BOLT	2	Rp140.500
28	09160-15051-000	WASHER (15X24X3)	2	Rp16.000
29	54137-93J02-000	COVER, UPPER MOUNT	1	Rp567.000
30	DISCONTINUE SUB: 09116-10135-000	BOLT (10X95)	2	-
31	09116-10175-000	BOLT (10X50)	1	Rp77.500
32	54127-98L00-000	MOUNT, UPPER SIDE	2	Rp71.000
33	54140-98J10-000	MOUNT, UPPER THRUST REVERSE	1	Rp700.500
34	09116-10137-000	BOLT (10X70)	6	Rp88.000
35	09116-10175-000	BOLT (10X50)	4	Rp77.500
36	DISCONTINUE SUB: 09116-08126-000	BOLT (8X65)	2	-
37	09169-08038-000	WASHER	2	Rp24.500
38	51161-98L00-000	COVER, ENG HLDR WATER JKT STBD	1	Rp1.303.000
39	51165-98L00-000	COVER, ENG HLDR WATER JKT PORT	1	Rp1.303.000
40	51162-98L00-000	GASKET, ENG HLDR WATER JKT COV	2	Rp111.500
41	09116-06516-000	BOLT (6X25)	12	Rp25.500
42	09246-08006-000	PLUG	2	Rp54.500
43	09248-26003-000	PLUG	1	Rp149.500
44	09280-26014-000	O RING (D:2.4,ID:25.8)	1	Rp15.500
45	09116-08131-000	BOLT (8X45)	4	Rp40.500
46	DISCONTINUE SUB: 09116-10135-000	BOLT (10X95)	2	-
47	54180-98L01-000 SUB: 54180-98L00-000	MOUNT, UPPER SIDE	1	Rp966.000
48	22511-99011-000	NIPPLE, GREASE	1	Rp39.500
