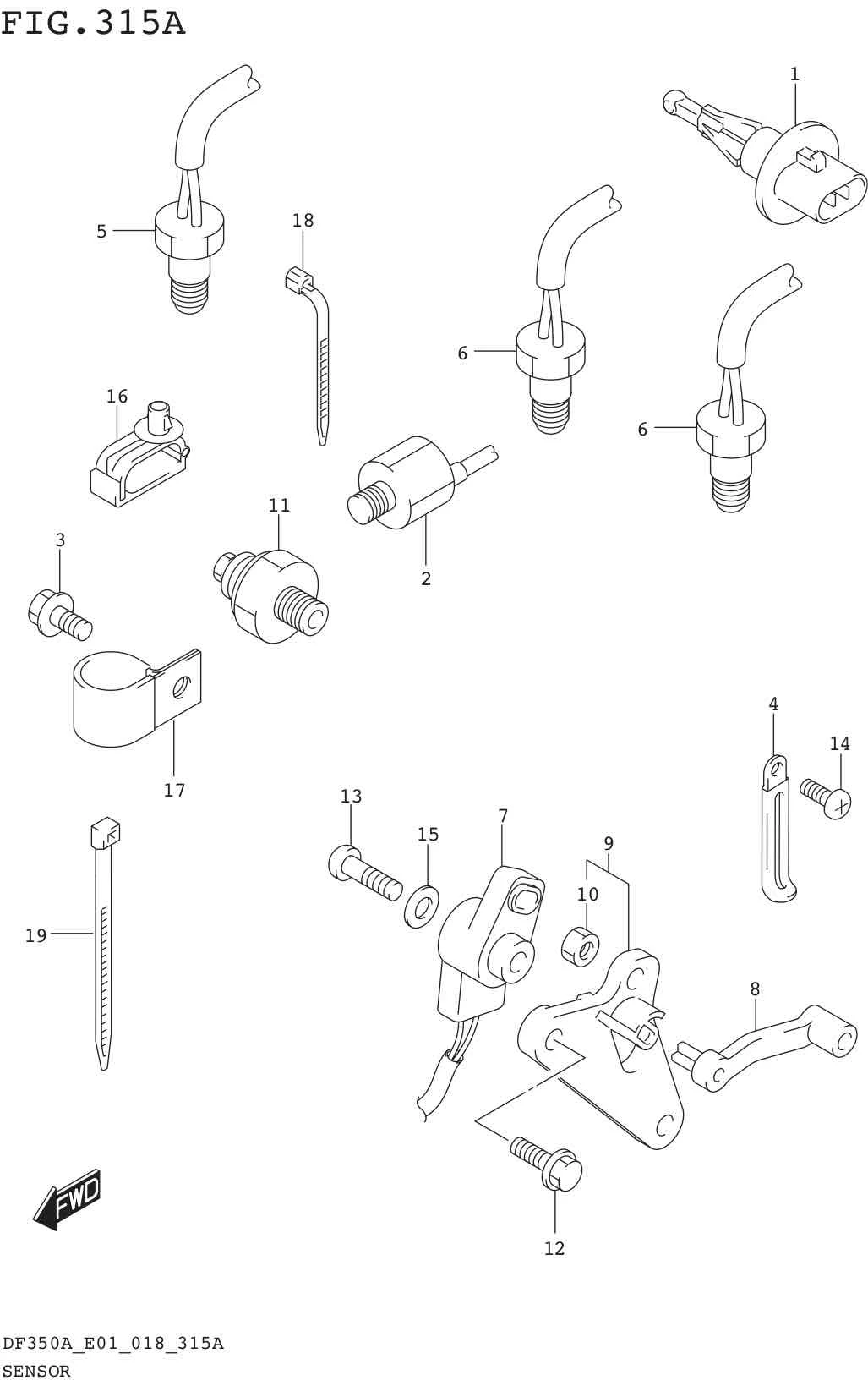

FIG.315A SENSOR

FIG.315A SENSOR
No No. Part Description Qty Price Per Pcs Remarks
1 13650-52G00-000 SENSOR, INLET AIR TEMP 1 Rp762.500
2 18640-98L00-000 SENSOR ASSY, KNOCK 1 Rp917.000
3 DISCONTINUE
SUB: 29103-93J00-000		 BOLT, PTT MOTOR LEAD CLAMP 1 -
4 DISCONTINUE
SUB: 29404-93J10-000		 CLAMP, PTT MOTOR LEAD 1 -
5 34830-87J20-000 SENSOR ASSY, EXHAUST TEMP 1 Rp526.000
6 34830-87J20-000 SENSOR ASSY, CYLINDER TEMP 2 Rp526.000
7 34840-98J03-000 SENSOR ASSY, TRIM 1 Rp2.590.500
8 34841-88L01-000
SUB: 34841-88L00-000		 LEVER, TRIM SENSOR 1 Rp61.000
9 34845-88L02-000
SUB: 34845-88L01-000		 BRACKET, TRIM SENSOR 1 Rp125.000
10 09140-05005-000 .NUT 1 Rp20.000
11 37820-99E02-000 SWITCH ASSY, OIL PRESSURE 1 Rp230.000
12 09103-06093-000 BOLT (6X20) 2 Rp13.000
13 09125-05048-000 SCREW (5X16) 1 Rp14.000
14 09125-06063-000 SCREW (6X10) 1 Rp15.000
15 09160-05029-000 WASHER (5.5X12X0.8) 1 Rp14.000
16 09403-07340-000 CLAMP 1 Rp20.500
17 DISCONTINUE
SUB: 09403-19409-000		 CLAMP 1 -
18 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 1 Rp13.000
19 09407-14407-000 CLAMP (L:145) 2 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
