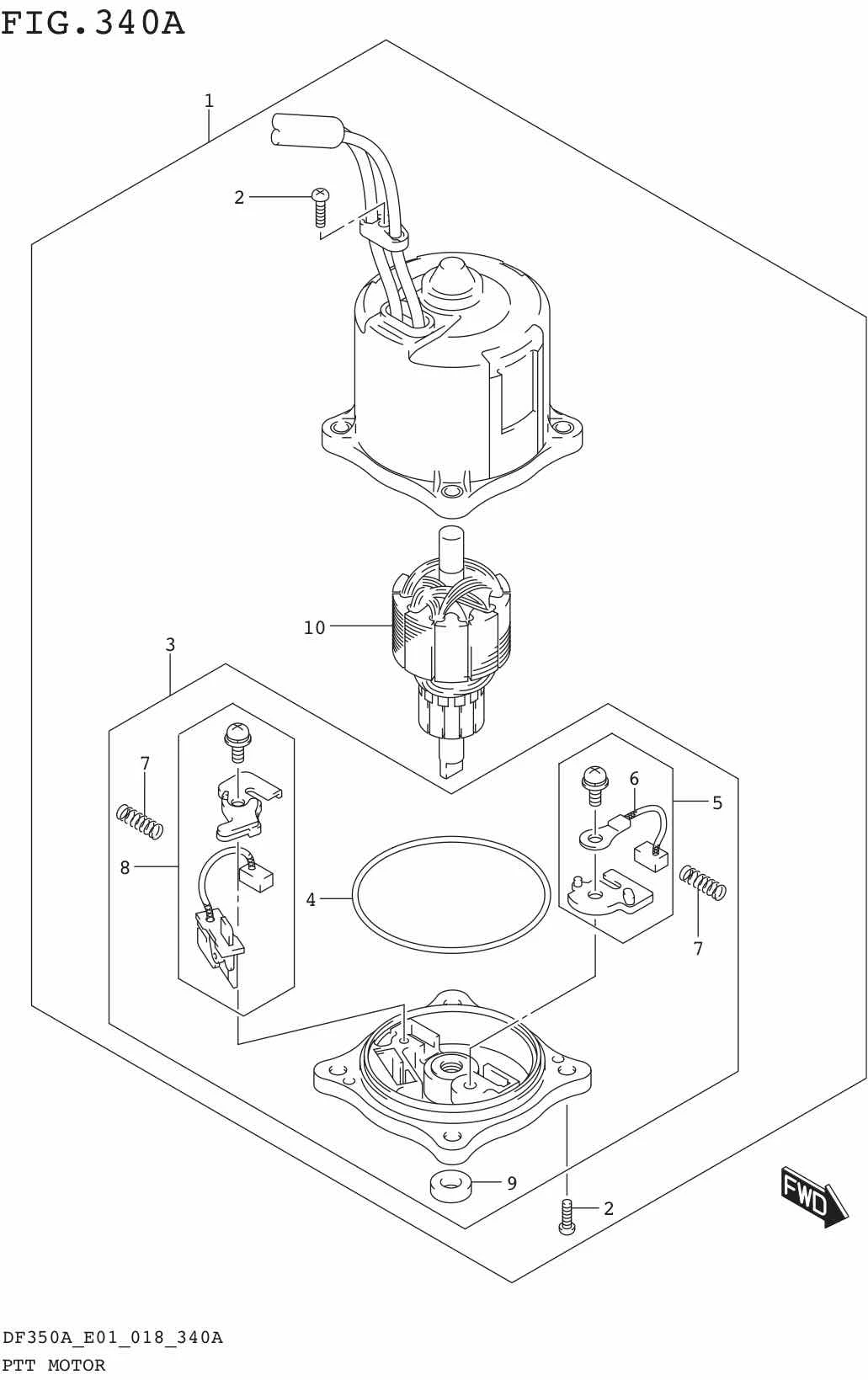

FIG.340A PTT MOTOR

FIG.340A PTT MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	38100-98L02-000 SUB: 38100-98L00-000	MOTOR ASSY, PTT	1	Rp7.490.500
2	31111-94900-000	.SCREW, YOKE	3	Rp36.000
3	31173-94920-000	.HOLDER ASSY, BRUSH	1	Rp3.282.500
4	31123-94910-000	..O RING	1	Rp111.500
5	31133-90J10-000	..BRUSH SET, PLUS	1	Rp129.000
6	31133-94910-000	...BRUSH	1	Rp132.000
7	31135-94900-000	..SPRING	2	Rp43.000
8	31136-90J30-000 SUB: 31136-90J20-000	..BREAKER	1	Rp629.500
9	33799-97E00-000	..OIL SEAL	1	Rp207.000
10	31311-93J00-000	.ARMATURE	1	Rp3.759.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
