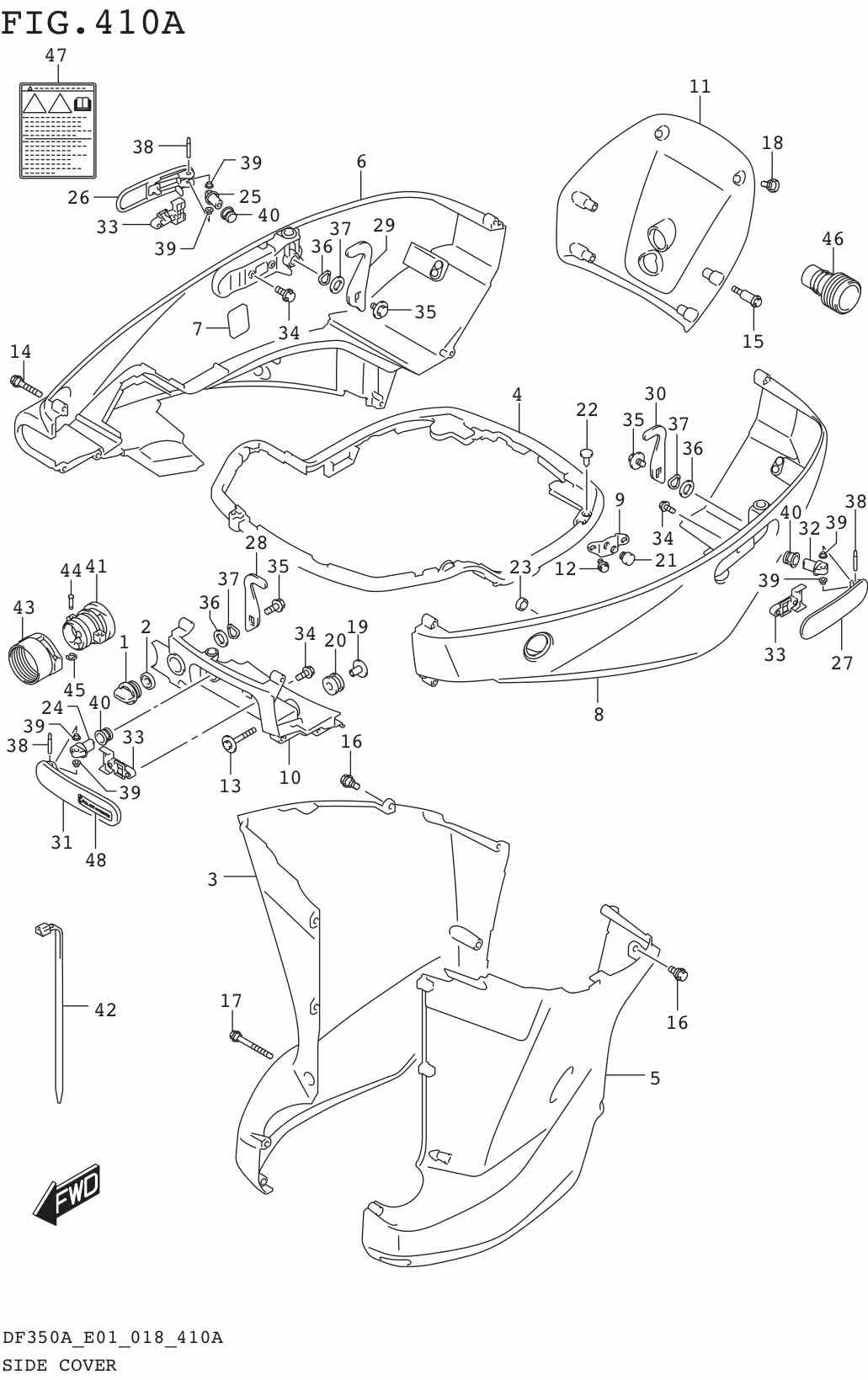

FIG.410A SIDE COVER (DF350A)

FIG.410A SIDE COVER (DF350A)
No No. Part Description Qty Price Per Pcs Remarks
1 17913-93J00-000 PLUG, WATER 1 Rp39.000
2 17914-93J01-000
SUB: 17914-93J00-000		 GASKET, WATER PLUG 1 Rp25.000
3-2 61131-98L00-Y5S COVER, OIL PAN STBD (WHITE) 1 Rp2.135.500 UP TO VIN.810080 ->61140-98800-Y5S COVER SET, OIL PAN STBD/PORT
3-3 61131-98L01-YAY COVER, OIL PAN STBD (BLACK) 1 Rp2.135.500 FROM VIN.810081
3-4 61131-98L01-Y5S COVER, OIL PAN STBD (WHITE) 1 Rp2.135.500 FROM VIN.810081
3-1 61131-98L00-YAY COVER, OIL PAN STBD (BLACK) 1 Rp2.135.500 UP TO VIN.810080 ->61140-98800-YAY COVER SET, OIL PAN STBD/PORT
4 61134-98L00-000 SEAL, ENGINE HOLDER 1 Rp657.500
5-1 61140-98L00-YAY COVER, OIL PAN PORT (BLACK) 1 Rp2.505.500 UP TO VIN.810080
5-2 61140-98L00-Y5S COVER, OIL PAN PORT (WHITE) 1 Rp2.505.500 UP TO VIN.810080
5-3 61140-98L01-YAY COVER, OIL PAN PORT (BLACK) 1 Rp2.505.500 FROM VIN.810081
5-4 61140-98L01-Y5S COVER, OIL PAN PORT (WHITE) 1 Rp2.505.500 FROM VIN.810081
6-1 61810-98L00-YAY COVER, SIDE STBD (BLACK) 1 Rp2.429.000
6-2 61810-98L00-Y5S COVER, SIDE STBD (WHITE) 1 Rp2.429.000
7 61814-98L00-000 PROTECTOR, SIDE COVER 2 Rp33.000
8-1 61820-98L00-YAY COVER, SIDE PORT (BLACK) 1 Rp3.132.000
8-2 61820-98L00-Y5S COVER, SIDE PORT (WHITE) 1 Rp3.476.500
9 61827-98L00-000 HOLDER, SIDE COVER 1 Rp148.500
10-1 61830-98L00-YAY PANEL, FRONT (BLACK) 1 Rp1.190.000
10-2 61830-98L00-Y5S PANEL, FRONT (WHITE) 1 Rp1.309.000
11 61861-98L00-20H PANEL, REAR (SILVER) 1 Rp769.000
12 DISCONTINUE
SUB: 01550-0816C-000		 BOLT 2 -
13 09116-08170-000 BOLT (8X60) 2 Rp38.500
14 09139-06249-000
SUB: 09136-06148-000		 SCREW (6X35) 8 Rp20.000
15 09111-06253-000 BOLT 4 Rp74.500
16 09139-06135-000 SCREW (6X17) 8 Rp45.000
17 09139-06136-000 SCREW (6X65) 2 Rp143.500
18 09139-06135-000 SCREW (6X17) 2 Rp45.000
19 09169-08050-000 WASHER, FRONT PANEL (ID:8.5) 2 Rp49.500
20 09320-11023-000
SUB: 09320-11013-000		 CUSHION 2 Rp26.000
21 09321-10030-000 CUSHION 2 Rp12.000
22 09409-05302-5PK CLIP (BLACK) 2 Rp11.500
23 DISCONTINUE
SUB: 09329-14002-000		 CUSHION 1 -
24 61632-93J00-000 SHAFT, ENGINE COVER HOOK 1 Rp389.000
25 61632-98L00-000 SHAFT, ENGINE COVER HOOK STBD 1 Rp246.000
26-1 61633-93J00-YAY LEVER, HOOK REAR STBD (BLACK) 1 Rp1.212.000
26-2 61633-93J00-Y5S LEVER, HOOK REAR STBD (WHITE) 1 Rp1.212.000
27-1 61634-93J00-YAY LEVER, HOOK REAR PORT (BLACK) 1 Rp1.497.000
27-2 61634-93J00-Y5S LEVER, HOOK REAR PORT (WHITE) 1 Rp1.212.000
28 61641-93J10-000 HOOK, ENGINE COVER 1 Rp273.500
29 61641-93J10-000 HOOK, ENGINE COVER RR STBD 1 Rp273.500
30 61641-93J20-000 HOOK, ENGINE COVER RR PORT 1 Rp273.500
31-1 61645-93J01-YAY LEVER, HOOK FRONT (BLACK) 1 Rp1.212.000
31-2 61645-93J01-Y5S LEVER, HOOK FRONT (WHITE) 1 Rp1.212.000
32 61652-98L00-000 SHAFT, ENGINE COVER HOOK PORT 1 Rp246.000
33 61673-93J02-000
SUB: 61673-93J01-000		 LATCH, HOOK LEVER 3 Rp119.500
34 DISCONTINUE
SUB: 09116-05010-000		 BOLT (5X12) 6 -
35 09116-06127-000 BOLT (6X12) 3 Rp27.000
36 09160-13014-000 WASHER (13.2X25X1) 3 Rp25.500
37 09164-14008-000 WASHER 3 Rp19.500
38 09202-04022-000 PIN 3 Rp32.000
39 09306-04005-000 BUSH 6 Rp33.500
40 09306-13007-000 BUSH 3 Rp25.500
41-1 61124-98L10-000 GROMMET, R/CON HARNESS 1 Rp156.000 UP TO VIN.811874
41-2 61124-98L20-000 GROMMET, R/CON HARNESS 1 Rp236.500 FROM VIN.811875
42 09407-19401-000
SUB: 09407-25402-000		 CLAMP (L:250) 1 Rp31.500
43 67361-90J10-000 ADAPTER, HOSE (RIGGING) 1 Rp90.500
44 09208-06009-000 PIN 2 Rp23.500
45 09383-04002-000 E RING 2 Rp6.500
46 17917-87L00-000 CONNECTOR, FLUSH WATER 1 Rp67.500
47 61458-90J01-000
SUB: 61458-90J00-000		 LABEL, ENGINE COVER 1 Rp50.000
48-1 61649-93J00-000 LABEL, HOOK LEVER 1 Rp44.500 FOR YAY
48-2 61649-93J10-000 LABEL, HOOK LEVER 1 Rp44.500 FOR Y5S

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
