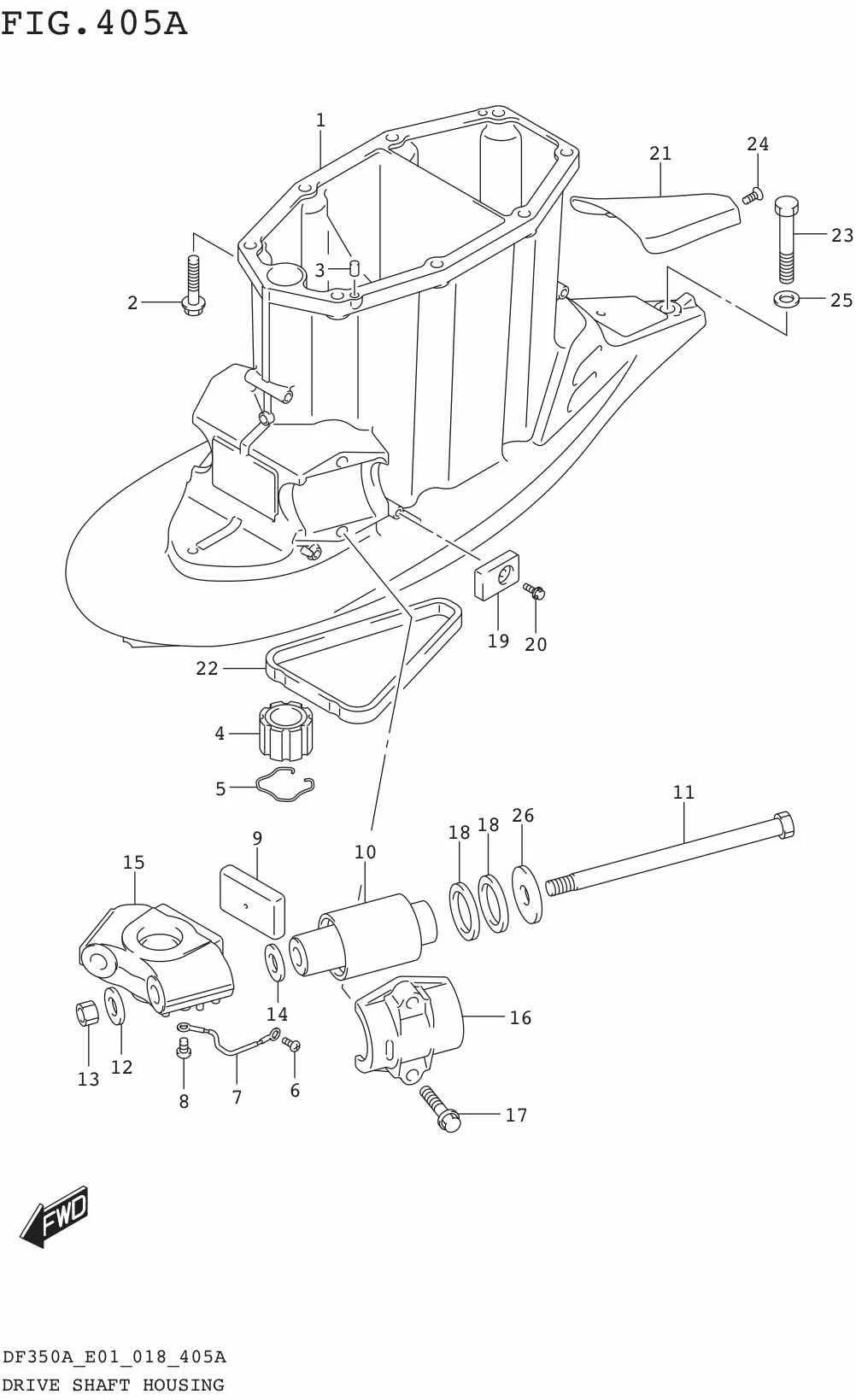

FIG.405A DRIVE SHAFT HOUSING (X)

FIG.405A DRIVE SHAFT HOUSING (X)
No No. Part Description Qty Price Per Pcs Remarks
1-2 52111-98L00-Y5S HOUSING, DRIVE SHAFT (WHITE) 1 Rp9.368.000
1-1 52111-98L00-YAY HOUSING, DRIVE SHAFT (BLACK) 1 Rp8.502.500
2 09116-10176-000 BOLT (10X44) 8 Rp100.000
3 09202-08006-000 PIN (8X12) 2 Rp27.000
4 57130-87D10-000 BUSH, DRIVE SHAFT 1 Rp381.500
5 09387-38002-000 RING 1 Rp58.000
6 09125-06063-000 SCREW (6X10) 1 Rp15.000
7 36894-87D00-000 LEAD, MT BRKT TO HSG 1 Rp98.500
8 09125-06063-000 SCREW (6X10) 1 Rp15.000
9 54151-98L00-000 MOUNT, LOWER THRUST 1 Rp138.000
10 54160-98L00-000 MOUNT, LOWER 2 Rp877.000
11 54112-93J00-000 BOLT, LOWER MOUNT 2 Rp795.500
12 09160-14073-000 WASHER (14.5X34X3) 2 Rp64.000
13 29159-93J00-000 NUT, LOWER MOUNT BOLT 2 Rp140.500
14 09160-14073-000 WASHER (14.5X34X3) 2 Rp64.000
15-1 54211-98L00-YAY BRACKET, LOWER MOUNT (BLACK) 1 Rp1.510.000
15-2 54211-98L00-Y5S BRACKET, LOWER MOUNT (WHITE) 1 Rp1.664.000
16-1 54221-93J00-YAY COVER, LOWER MOUNT (BLACK) 2 Rp407.000
16-2 54221-93J00-Y5S COVER, LOWER MOUNT (WHITE) 2 Rp407.000
17 09116-10175-000 BOLT (10X50) 4 Rp77.500
18 54165-98L00-000 STOPPER, LOWER THRUST REVERSE 4 Rp60.000
19 55321-93J01-000 ANODE, PROTECTION 1 Rp181.000
20 09116-06236-000 BOLT (6X16) 1 Rp19.000
21-1 52115-98L00-YAY CAP, DRIVE SHAFT HOUSING (BLACK) 1 Rp725.000
21-2 52115-98L00-Y5S CAP, DRIVE SHAFT HOUSING (WHITE) 1 Rp646.500
22 52118-98L00-000 SEAL, DRIVE SHAFT HOUSING 1 Rp188.000
23 09100-12124-000 BOLT (12X75) 2 Rp194.500
24 09120-06016-000 SCREW 1 Rp89.000
25 09160-12066-000 WASHER (12.5X22X2.5) 2 Rp13.500
26 09160-16055-000 WASHER (16X50X4) 2 Rp102.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
