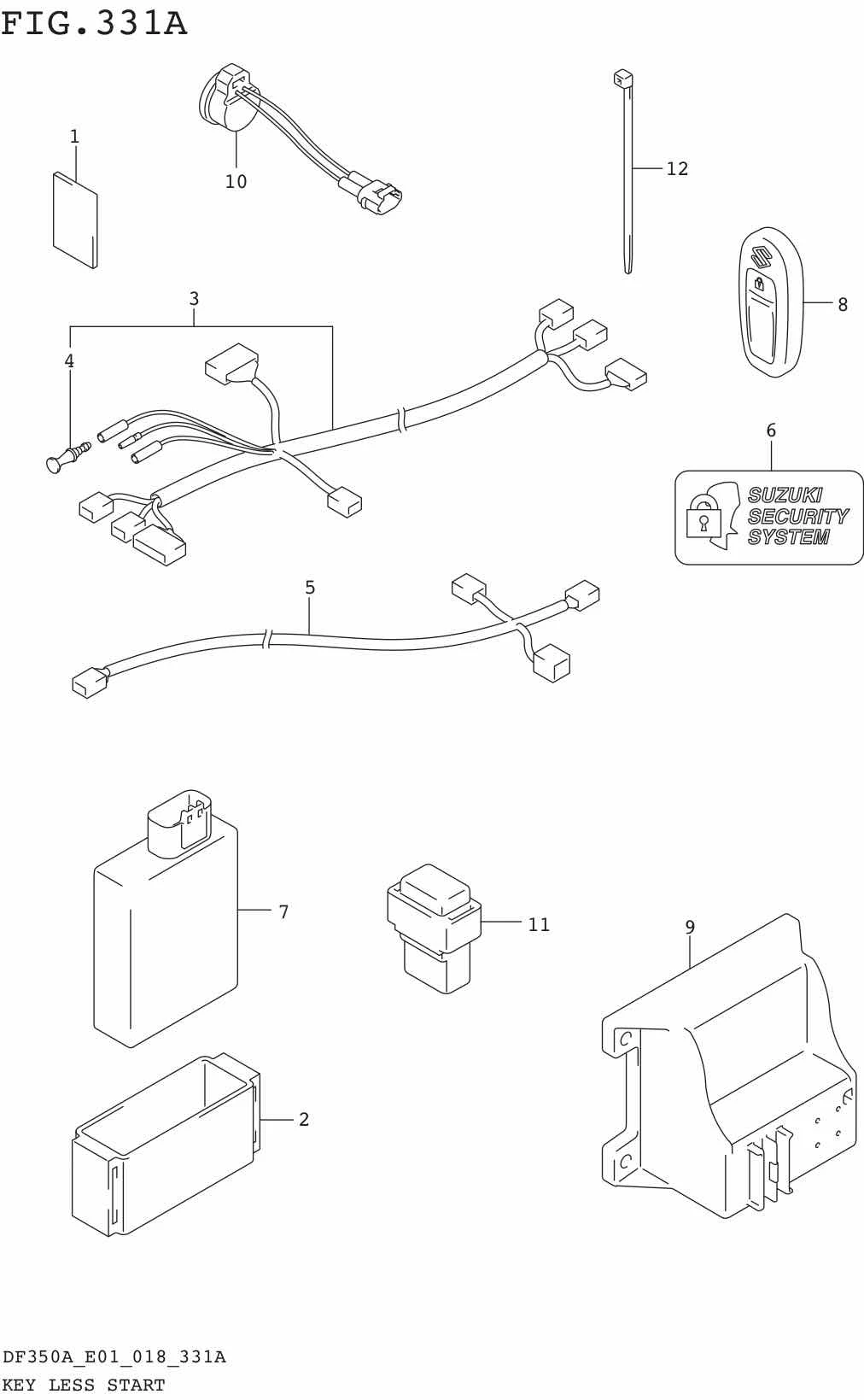

FIG.331A KEY LESS START (E01)

FIG.331A KEY LESS START (E01)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32851-93J00-000	CUSHION, KLS CONTROLLER	1	Rp27.500
2	32980-38F00-000	HOLDER, KLS CONTROLLER	1	Rp60.500
3	36623-96L01-000	HARNESS ASSY, KLS CONT	1	Rp1.968.500
4	36615-96300-000	.TERMINAL, RESIN	1	Rp11.000
5	36662-96L00-000	HARNESS ASSY, KLS CAN	1	Rp799.500	L:6500+110
6	37117-96L00-000	DECAL, KLS	2	Rp55.000
7	37171-96L02-000	CONTROLLER ASSY, KLS 433MHZ	1	Rp2.562.500
8	37172-96L01-000	REMOCON ASSY, KLS 433MHZ	2	Rp1.406.500
9	37173-96L10-000	HOLDER, KLS PARTS	1	Rp92.000
10	38500-93J90-000	BUZZER ASSY	1	Rp297.000
11	38860-96L01-000	RELAY ASSY, KLS	1	Rp528.000
12	09407-14407-000	CLAMP (L:145)	1	Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
