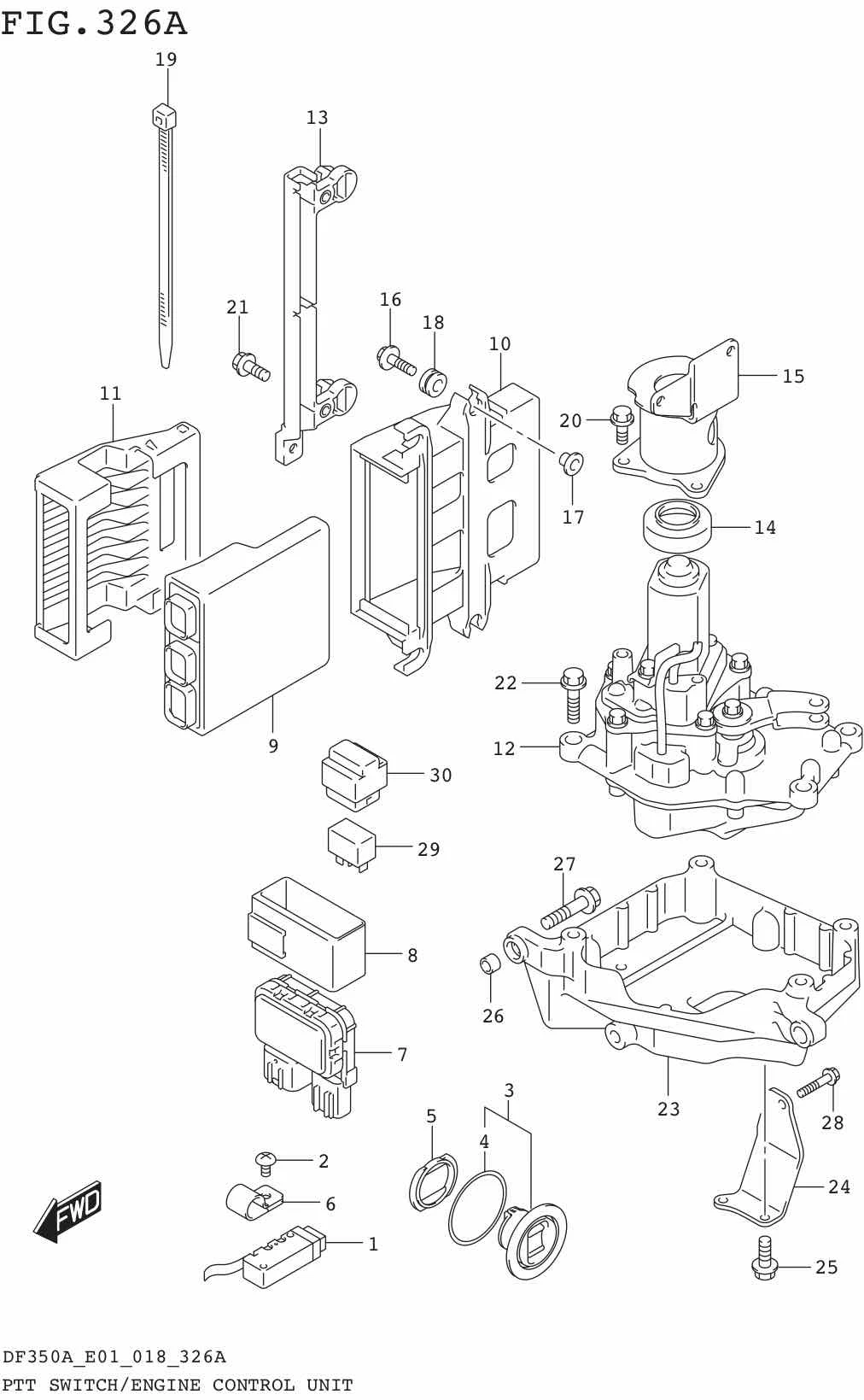

FIG.326A PTT SWITCH/ENGINE CONTROL UNIT (DF350A:UP TO VIN.811005)

FIG.326A PTT SWITCH/ENGINE CONTROL UNIT (DF350A:UP TO VIN.811005)
No No. Part Description Qty Price Per Pcs Remarks
1 37722-93J14-000
SUB: 37722-93J11-000		 SWITCH ASSY, TILT LIMIT 1 Rp371.500
2 DISCONTINUE
SUB: 29125-93J00-000		 SCREW, TILT LIMIT LEAD CLAMP 1 -
3 37850-92J00-000 SWITCH ASSY, PTT 1 Rp931.000
4 37856-92J00-000 .TAPE, PTT SWITCH 1 Rp29.000
5 37857-92J01-000
SUB: 37857-92J00-000		 BUSH, PTT SWITCH 1 Rp27.000
6 09403-09316-000 CLAMP 1 Rp9.000
7 38410-93J21-000
SUB: 38410-93J20-000		 RELAY ASSY, PTT 1 Rp1.196.500
8 38415-93J20-000 HOLDER, PTT RELAY 1 Rp58.500
9 33920-98L01-000
SUB: 33920-98L00-000		 UNIT, ENGINE CONTROL 1 Rp15.433.000
10 33924-98L00-000 HOLDER, ENGINE CONTROL UNIT 1 Rp225.000
11 DISCONTINUE
SUB: 33925-98J00-000		 CUSHION, ENGINE CONTROL UNIT 1 -
12 38800-98L00-000 ACTUATOR ASSY, SHIFT 1 Rp26.500.000
13 38831-98L00-000 GUIDE, ACTUATOR CABLE 1 Rp460.500
14 38892-98L00-000 DAMPER, SHIFT ACTUATOR 1 Rp100.000
15 38895-98L10-000 BRACKET, SHIFT ACTUATOR 1 Rp726.000 ->38895-98L11 USED WITH 38895-98L20 (1PCS), 01550-06127 (2PCS)
16 09116-06215-000 BOLT (6X30) 2 Rp21.000
17 09169-06062-000 WASHER 2 Rp16.500
18 09320-09016-000 CUSHION 4 Rp4.000
19 09407-14407-000 CLAMP (L:145) 2 Rp18.500
20 01550-0616C-000 BOLT 3 Rp3.500
21 01550-0625C-000 BOLT 2 Rp14.500
22 01560-0830C-000 BOLT 4 Rp19.000
23 19115-98L00-000 HOLDER, ACTUATOR 1 Rp723.500
24 19116-98L00-000 BRACKET, ACTUATOR HOLDER 1 Rp225.000
25 09116-08137-000 BOLT (8X22) 2 Rp49.000
26 DISCONTINUE
SUB: 09206-11006-000		 PIN (8.4X11X8) 2 -
27 01550-0835C-000 BOLT 3 Rp19.000
28 01550-0840C-000 BOLT 1 Rp19.000
29 38860-76F01-000 RELAY, ACTUATOR 2 Rp47.000
30 38915-90J00-000 HOLDER, RELAY 2 Rp33.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
