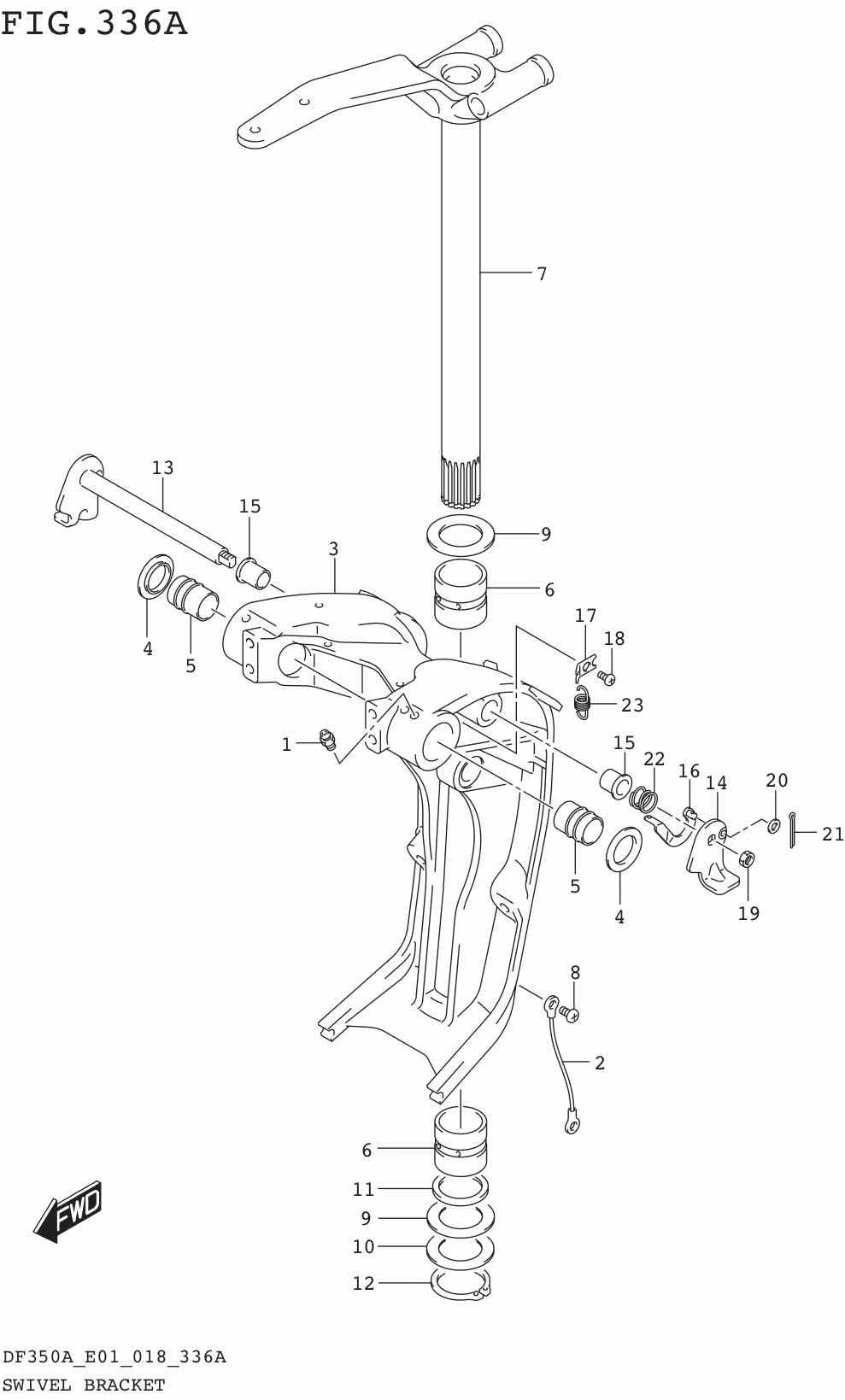

FIG.336A SWIVEL BRACKET

FIG.336A SWIVEL BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 22511-99011-000 NIPPLE, GREASE SWIVEL BRKT 4 Rp39.500
2 36894-87D00-000 LEAD (SWIVEL TO MOUNT BRKT) 1 Rp98.500
3-1 43111-93J24-YAY BRACKET, SWIVEL (BLACK) 1 Rp9.529.000
3-2 43111-93J24-Y5S BRACKET, SWIVEL (WHITE) 1 Rp10.502.000
4 43114-93J00-000 WASHER, SWIVEL TO CLAMP BRKT 2 Rp45.500
5 43211-93J11-000
SUB: 43211-93J00-000		 BUSH, CLAMP SHAFT SWIVEL 2 Rp75.000
6 43711-97E11-000
SUB: 43711-97E01-000		 BUSH, STEERING 2 Rp106.500
7-1 43750-93J21-YAY BRACKET, STEERING (BLACK) 1 Rp7.046.000
7-2 43750-93J21-Y5S BRACKET, STEERING (WHITE) 1 Rp7.046.000
8 09125-06063-000 SCREW (6X10) 1 Rp15.000
9 09160-39004-000 WASHER (39.5X65.5X1) 2 Rp48.000
10 09181-39001-000 SHIM (39.5X64X0.3) 0 Rp31.500
11 09282-39001-000 OIL SEAL (39X51X5) 1 Rp53.000
12 09380-38003-000 CIRCLIP 1 Rp50.500
13 41220-93J12-000
SUB: 41220-93J11-000		 LEVER, TILT LOCK 1 Rp734.000
14 41234-93J12-000
SUB: 41234-93J11-000		 LEVER, TILT LOCK PORT 1 Rp335.000
15 41224-95E01-000 BUSH, TILT STOPPER ROD 2 Rp41.500
16 41230-96J00-000 LINK, TILT LOCK LEVER 1 Rp217.000
17 41233-95E10-000 BRACKET, TILT LOCK SPRING 1 Rp81.000
18 09125-06063-000 SCREW (6X10) 1 Rp15.000
19 09140-10032-000 NUT 1 Rp15.000
20 09160-06082-000 WASHER (6.5X13X1.0) 1 Rp10.500
21 09204-01006-000 PIN 1 Rp14.000
22 09440-19028-000 SPRING 1 Rp24.500
23 09443-10043-000 SPRING 1 Rp29.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
