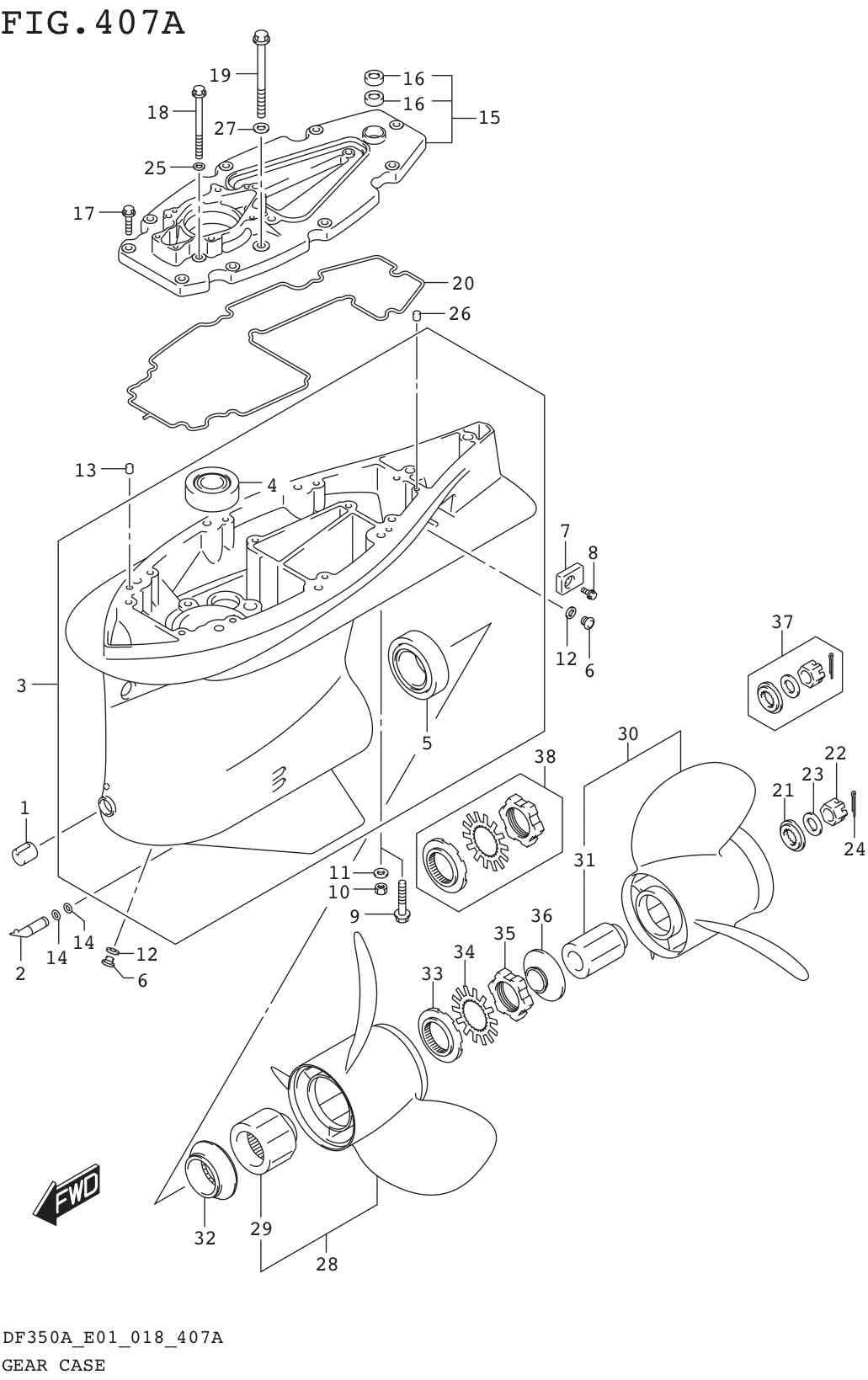

FIG.407A GEAR CASE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17631-98L03-000 SUB: 17631-98L01-000	FILTER, WATER	1	Rp138.500
2	17635-98L01-000 SUB: 17635-98L00-000	FILTER, SUB WATER	2	Rp226.500
3-1	55100-98850-YAY	CASE SET, GEAR (BLACK)	1	Rp11.144.000	INCLUDE FIG.220A REF29
3-2	55100-98850-Y5S	CASE SET, GEAR (WHITE)	1	Rp7.688.000
4	57710-98L00-000	.BEARING ASSY, CONTRA PINION	1	Rp784.000
5	09265-50001-000	.BEARING (50X90X32)	1	Rp1.067.500
6	55128-93L00-000	PLUG, DRAIN	3	Rp126.000
7	55321-93J01-000	ANODE, PROTECTION	2	Rp181.000
8	09116-06236-000	BOLT (6X16)	2	Rp19.000
9	09116-10150-000	BOLT (10X55)	6	Rp128.000	W/TRANSOM(X)
10	09140-10031-000	NUT	6	Rp14.500	W/TRANSOM(XX)
11	09160-10141-000	WASHER (10.5X19X2)	6	Rp27.000	W/TRANSOM(XX)
12	09168-10038-000 SUB: 09168-10034-000	GASKET (9.5X16.5X2)	3	Rp20.500
13	09202-08006-000	PIN (8X12)	2	Rp27.000
14	09280-10012-000	O RING (D:1.5,ID:10)	2	Rp11.000
15	56130-98L11-000	HOUSING, DRIVE SFT BRG	1	Rp2.441.000	INCLUDE FIG.220A REF38
16	09282-15010-000 SUB: 09282-15008-000	.OIL SEAL (14.7X25X6.5)	2	Rp52.000
17	29116-93J10-000	BOLT, DRIVE SHAFT BRG HOUSIN	11	Rp29.500
18	09103-08552-000	BOLT (8X105)	2	Rp102.000
19	09103-10461-000	BOLT (10X107)	3	Rp145.500
20	55122-98L00-000	SEAL, DRIVE SHAFT BRG HSG	1	Rp642.500
21	58641-98L00-000	SPACER, REAR PROPELLER NUT	1	Rp394.500
22	09141-18005-000	NUT	1	Rp71.000
23	DISCONTINUE SUB: 09160-18019-000	WASHER (18.5X32X2.5)	1	-
24	09204-03003-000	PIN	1	Rp17.500
25	09169-08038-000	WASHER	2	Rp24.500
26	09202-06031-000	PIN (6X12)	1	Rp21.500
27	09169-10023-000	WASHER	3	Rp46.500
28-10	58500-98L90-000	PROPELLER, FR (3X15-1/2X18)	1	Rp18.229.000
28-2	58500-98L10-000	PROPELLER, FR (3X15-1/2X22.5)	1	Rp18.754.000
28-9	58500-98L80-000	PROPELLER, FR (3X15-1/2X31.5)	1	Rp18.229.000
28-8	58500-98L70-000	PROPELLER, FR (3X15-1/2X30)	1	Rp18.229.000
28-7	58500-98L60-000	PROPELLER, FR (3X15-1/2X19.5)	1	Rp18.754.000
28-5	58500-98L40-000	PROPELLER, FR (3X15-1/2X27)	1	Rp18.229.000
28-4	58500-98L30-000	PROPELLER, FR (3X15-1/2X25.5)	1	Rp18.754.000
28-3	58500-98L20-000	PROPELLER, FR (3X15-1/2X24)	1	Rp18.754.000
28-1	58500-98L00-000	PROPELLER, FR (3X15-1/2X21)	1	Rp18.754.000
28-6	58500-98L50-000	PROPELLER, FR (3X15-1/2X28.5)	1	Rp18.229.000
29	58520-98L00-000	.BUSH, FRONT PROPELLER	1	Rp2.376.000
30-7	58600-98L61-000 SUB: 58600-98L60-000	PROPELLER, RR (3X15-1/2X19.5)	1	Rp15.850.000
30-10	58600-98L90-000	PROPELLER, RR (3X15-1/2X18)	1	Rp8.542.000
30-9	58600-98L80-000	PROPELLER, RR (3X15-1/2X31.5)	1	Rp13.674.000
30-8	58600-98L70-000	PROPELLER, RR (3X15-1/2X30)	1	Rp13.674.000
30-6	58600-98L50-000	PROPELLER, RR (3X15-1/2X28.5)	1	Rp8.542.000
30-5	58600-98L40-000	PROPELLER, RR (3X15-1/2X27)	1	Rp8.542.000
30-4	58600-98L31-000 SUB: 58600-98L30-000	PROPELLER, RR (3X15-1/2X25.5)	1	Rp15.850.000
30-3	58600-98L21-000 SUB: 58600-98L20-000	PROPELLER, RR (3X15-1/2X24)	1	Rp15.850.000
30-2	58600-98L11-000 SUB: 58600-98L10-000	PROPELLER, RR (3X15-1/2X22.5)	1	Rp15.850.000
30-1	58600-98L01-000 SUB: 58600-98L00-000	PROPELLER, RR (3X15-1/2X21)	1	Rp15.850.000
31	58620-98L00-000	.BUSH, REAR PROPELLER	1	Rp2.128.000
32	58531-98L00-000	STOPPER, FRONT PROPELLER BUSH	1	Rp688.500
33	58541-98L00-000	SPACER, FRONT PROPELLER NUT	1	Rp517.000
34	58551-98L00-000	STOPPER, FRONT PROPELLER NUT	1	Rp64.000
35	58561-98L00-000	NUT, FRONT PROPELLER	1	Rp823.500
36	58631-98L00-000	STOPPER, REAR PROPELLER BUSH	1	Rp509.500
37	58640-98L00-000	KIT, REAR PROPELLER NUT	1	Rp274.500	OPT
38	58540-98L00-000	KIT, FRONT PROPELLER NUT	1	Rp1.321.500	OPT
39	25700-98L00-000	KIT, GEAR CASE SEALING	1	Rp655.000	OPT NOT ILLUSTRATED
