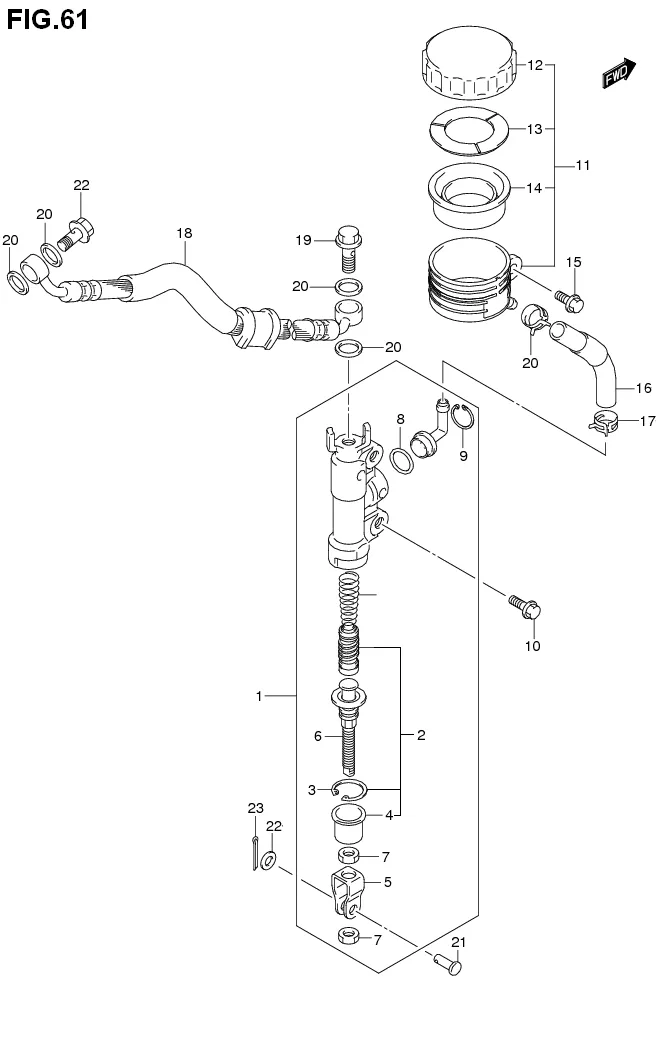

FIG.61 REAR MASTER CYLINDER (FL125RCD/RCMDL1 P12)

FIG.61 REAR MASTER CYLINDER (FL125RCD/RCMDL1 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 69600-16H00-000
SUB: 69600B16H00N000		 CYLINDER ASSY, REAR MASTER 1 Rp331.000
2 69600-04A00-000
SUB: 69600B04A00N000		 ?PISTON/CUP SET 1 Rp76.500
3 DISCONTINUE
SUB: 51162-70040-000		 ??CIRCLIP 1 -
4 69691-00A00-000
SUB: 69691B00A00N000		 ??BOOT 1 Rp13.500
5 69692-27A30-000
SUB: 69692B27A30N000		 ?YOKE 1 Rp43.000
6 DISCONTINUE
SUB: 69670B07G00N000		 ?ROD, PUSH 1 -
7 69693-05A00-000
SUB: 69693-05A00L000		 ?NUT 2 Rp5.500
8 69686-34200-000
SUB: 69686B34200N000		 ?O RING 1 Rp8.000
9 DISCONTINUE
SUB: 69674B00B20N000		 ?CIRCLIP 1 -
10 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 2 Rp3.500
11 69740-20G00-000
SUB: 69740B20G00N000		 TANK ASSY, RESERVOIR 1 Rp82.500
12 DISCONTINUE
SUB: 69669B20G00N000		 ?CAP 1 -
13 59668-18441-000
SUB: 59668B18441N000		 ?PLATE 1 Rp3.000
14 59667-18441-000
SUB: 59667B18441N000		 ?DIAPHRAGM 1 Rp13.500
15 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 1 Rp3.000
16 DISCONTINUE
SUB: 69730B16H00N000		 HOSE, RESERVOIR TANK 1 -
17 69735-38D00-000
SUB: 69735B38D00N000		 CLAMP, HOSE 2 Rp9.000
18 69480-16H00-000
SUB: 69480B16H00N000		 HOSE, REAR BRAKE 1 Rp91.500
19 09360-10062-000
SUB: 09360B10062N000		 UNION 2 Rp13.000
20 09168-10033-000
SUB: 09168B10033N000		 WASHER (10.2X15X1.4) 4 Rp8.500
21 09200-06037-000
SUB: 09200-06068-000		 PIN 1 Rp3.500
22 08322-0106B-000
SUB: 08322B0106BN000		 WASHER 1 Rp6.000
23 04111-2015A-000
SUB: 04111B2015AN000		 COTTER PIN 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
