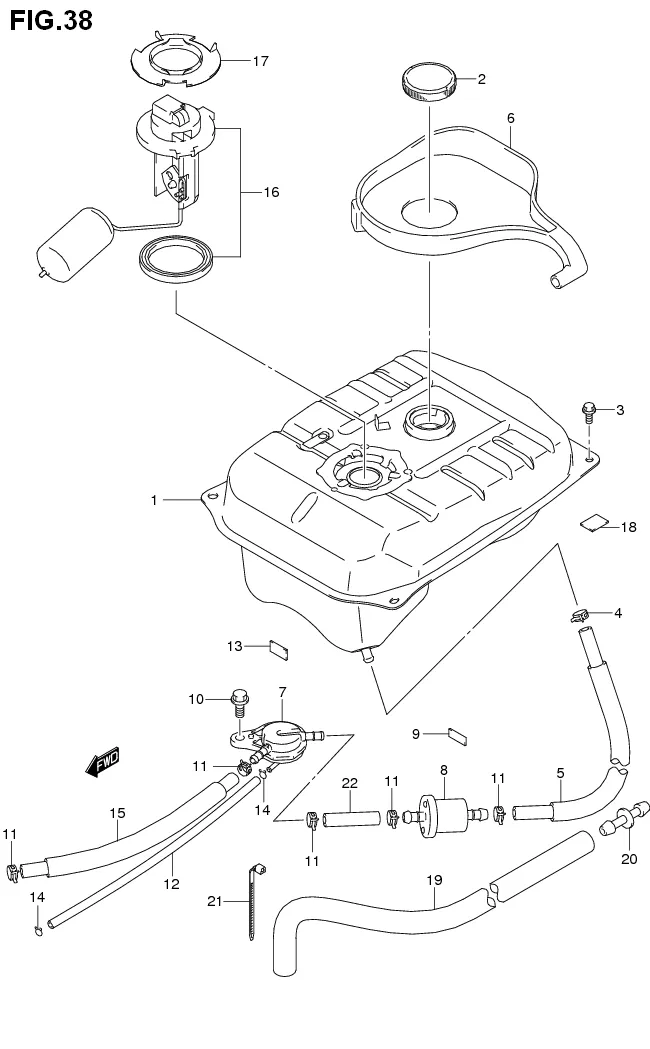

FIG.38 FUEL TANK

FIG.38 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-10J00-000
SUB: 44110B10J00N000		 TANK, FUEL 1 Rp279.500
2 44210-35014AS01 CAP ASSY, FUEL 1 Rp21.500
3 09103-06285-000 BOLT (6X12) 4 Rp9.000
4 09401-11413-000 CLIP 1 Rp2.500
5 44421-10J00-000
SUB: 44421B10J00N000		 HOSE, FUEL TANK & FILTER 1 Rp18.500
6 44261-10J00-000
SUB: 44261B10J00N000		 TRAY, INLET 1 Rp23.000
7 44300-09G00-000
SUB: 44300B09G00N000		 COCK ASSY, FUEL 1 Rp278.000
8 44330-13H00-000
SUB: 44330B13H00N000		 FILTER, FUEL 1 Rp142.000
9 44341B10J00N000 CUSHION, FUEL FILTER NO.2 1 -
10 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
11 09401-09403-000
SUB: 09401B09403N000		 CLIP 5 Rp3.500
12 09352-40703-230
SUB: 09352-40703-600		 HOSE (4X7X600) 1 Rp11.000 L:600->290
13 44472-16H00-000
SUB: 44472B16H00N000		 CUSHION, HOSE VACUUME 1 Rp4.000
14 09401-06101-000
SUB: 09401B06101N000		 CLIP 2 Rp2.000
15 44424-10J00-000
SUB: 44424B10J00N000		 HOSE, CARB 1 Rp14.500
16 34810-45H20-000
SUB: 34810B45H20N000		 GAUGE ASSY, FUEL LEVEL 1 Rp99.500
17 34886-03A00-000 PLATE, GAUGE 1 Rp8.000
18 33652-38000-000
SUB: 33652-38000L000		 CUSHION 1 Rp3.000
19 44423-10J00-000
SUB: 44423B10J00N000		 HOSE, FUEL DRAIN 1 Rp23.500
20 09367-08001-000 JOINT 1 Rp6.500
21 36990-25G00-000
SUB: 09407-11401-000		 CLAMP (L:95) 1 Rp13.000
22 44422-10J00-000
SUB: 44422B10J00N000		 HOSE, FUEL FILTER & COCK 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
