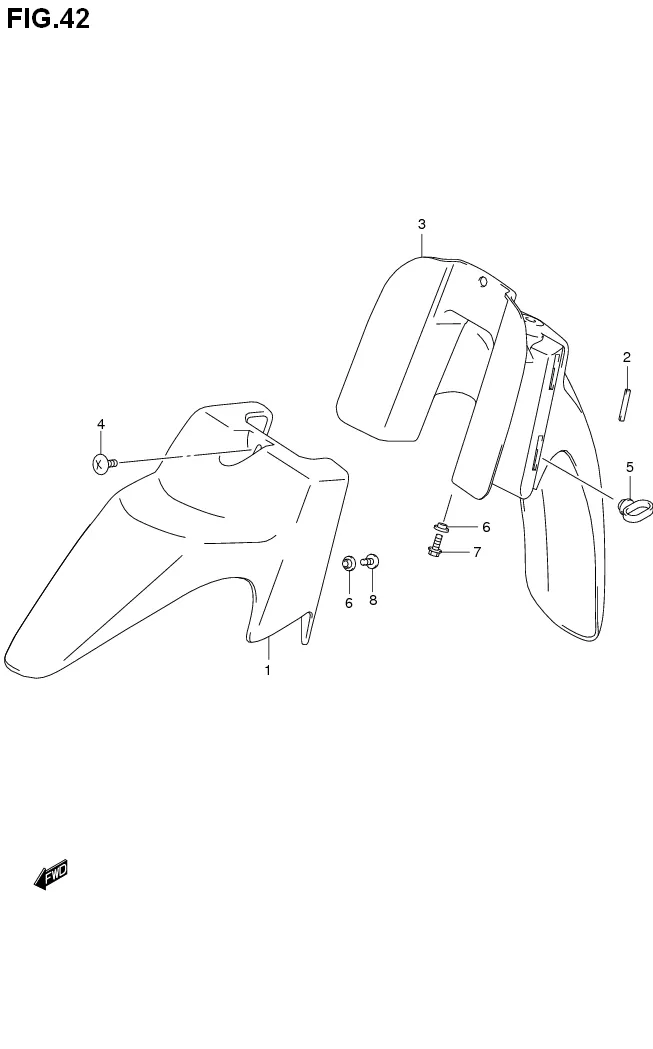

FIG.42 FRONT FENDER

FIG.42 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 53111-10J00-PZ5
SUB: 53111B10J00NPZ5		 FENDER FRONT NO.1 (FRASH GREEN) 1 Rp124.500
1-2 53111-10J00-YTB
SUB: 53111B10J00NYTB		 FENDER FRONT NO.1 (SUMMER RED) 1 Rp127.500
1-3 53111-10J00-YUH
SUB: 53111B10J00NYUH		 FENDER FRONT NO.1 (BRILLIANT WHITE) 1 Rp124.500
1-4 53111-10J00-YUJ
SUB: 53111B10J00NYUJ		 FENDER FRONT NO.1 (MACHO BRIGHT BLUE) 1 Rp124.500
1-5 53111-10J00-YVE
SUB: 53111B10J00NYVE		 FENDER FRONT NO.1 (MARINE BLUE) 1 Rp124.500
1-6 53111-10J00-YVU
SUB: 53111B10J00NYVU		 FENDER FRONT NO.1 (TITAN BLACK) 1 Rp124.500
1-7 53111-10J00-ZRP
SUB: 53111B10J00NZRP		 FENDER FRONT NO.1 (MAT PLATINUM SILVER) 1 Rp124.500
2 53146-10J00-000
SUB: 53146B10J00N000		 CUSHION, FRONT FENDER 2 Rp4.000
3 53211-16H01-000
SUB: 53211B16H01N000		 FENDER, FRONT NO.2 1 Rp35.500
4 53274-09G00-000
SUB: 53274B09G00N000		 SCREW, FRONT FENDER UPPER 1 Rp7.000
5 58621-47E00-000
SUB: 58621B47E00N000		 GUIDE, FRONT BRAKE CABLE 1 Rp4.000
6 09169-06071-000 WASHER 3 Rp7.500
7 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
8 02142-0616A-000
SUB: 02142B0616AN000		 SCREW 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
