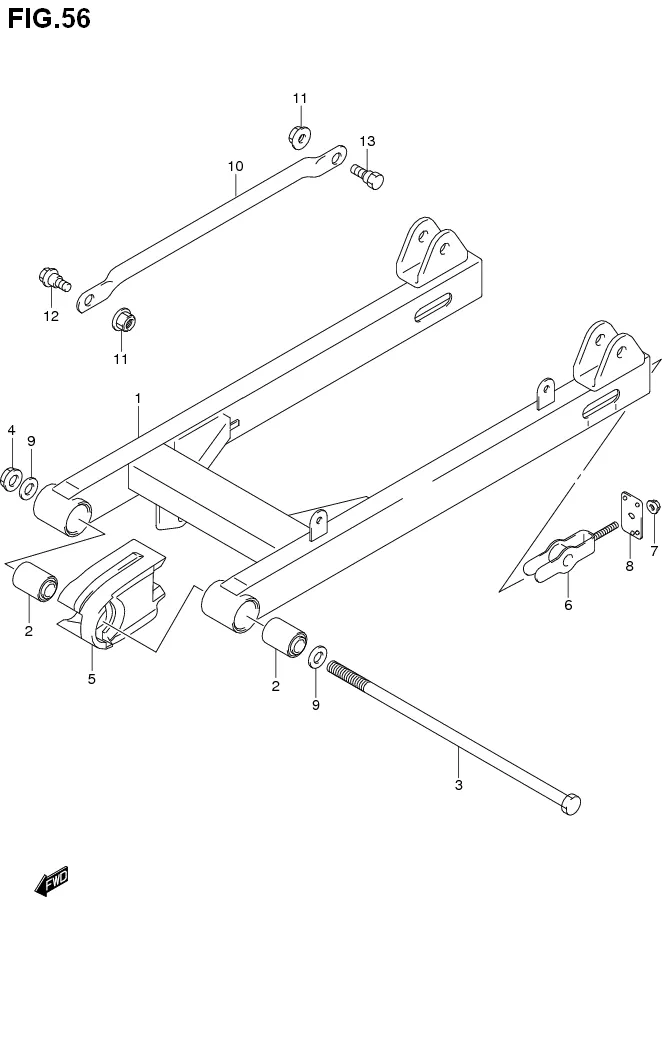

FIG.56 REAR SWINGINGARM

FIG.56 REAR SWINGINGARM
No No. Part Description Qty Price Per Pcs Remarks
1-1 61100-16H30-019
SUB: 61100B16H30N019		 SWINGINGARM COMP,REAR (SOLID BLACK) 1 Rp333.000 SCD
1-2 61100-16H40-019
SUB: 61100B16H40N019		 SWINGINGARM COMP,REAR (SOLID BLACK) 1 Rp307.000 RCD/RCMD
2 61230-16H00-000
SUB: 61230B16H00N000		 BUSHING (10X23X35) 2 Rp22.500
3 61211-16H20-000
SUB: 61211B16H20N000		 SHAFT, REAR SWINGINGARM 1 Rp28.000
4 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
5 61273-16H00-000
SUB: 61273B16H00N000		 BUFFER, CHAIN TOUCH DEFENSE 1 Rp20.000
6 61410-16H00-000
SUB: 61410B16H00N000		 ADJUSTER, CHAIN 2 Rp36.000
7 08319-3106A-000 NUT 2 Rp6.500
8 61421-16H00-000
SUB: 61421B16H00N000		 GUIDE, CHAIN ADJUSTER 2 Rp29.000
9 DISCONTINUE
SUB: 09160B12118N000		 WASHER (12X27X2) 2 -
10 64310-45H00-000
SUB: 64310B45H00N000		 TORQUE LINK, REAR 1 Rp29.000 SCD
11 08319-3108A-000
SUB: 08319B3108AN000		 NUT 2 Rp4.000 SCD
12 64321-45H00-000
SUB: 64321B45H00N000		 BOLT, FRONT 1 Rp4.000 SCD
13 64331-45H00-000
SUB: 64331B45H00N000		 BOLT 1 Rp4.000 SCD

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
