  5. FIG.51 FRONT FORK DAMPER

AXELO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.35 FRAMEFIG.36 STANDFIG.37 FOOTRESTFIG.38 FUEL TANKFIG.39 FRAME COVERFIG.40 FRAME HEAD COVERFIG.41 LEGSHIELDFIG.42 FRONT FENDERFIG.43 HANDLEBAR (FL125SCD/RCDL1 P12)FIG.44 HANDLEBAR (FL125RCMDL1 P12)FIG.45 HANDLE COVERFIG.46 HANDLE LEVERFIG.47 REAR FENDERFIG.48 LUGGAGE BOXFIG.49 LABELFIG.50 SEATFIG.51 FRONT FORK DAMPERFIG.52 FRONT FORK BRACKETFIG.53 FRONT WHEELFIG.54 FRONT CALIPERFIG.55 FRONT MASTER CYLINDERFIG.56 REAR SWINGINGARMFIG.57 CHAINCASEFIG.58 REAR WHEEL (FL125RCD/RCMDL1 P12)FIG.59 REAR WHEEL (FL125SCDL1 P12)FIG.60 REAR CALIPER (FL125RCD/RCMDL1 P12)FIG.61 REAR MASTER CYLINDER (FL125RCD/RCMDL1 P12)

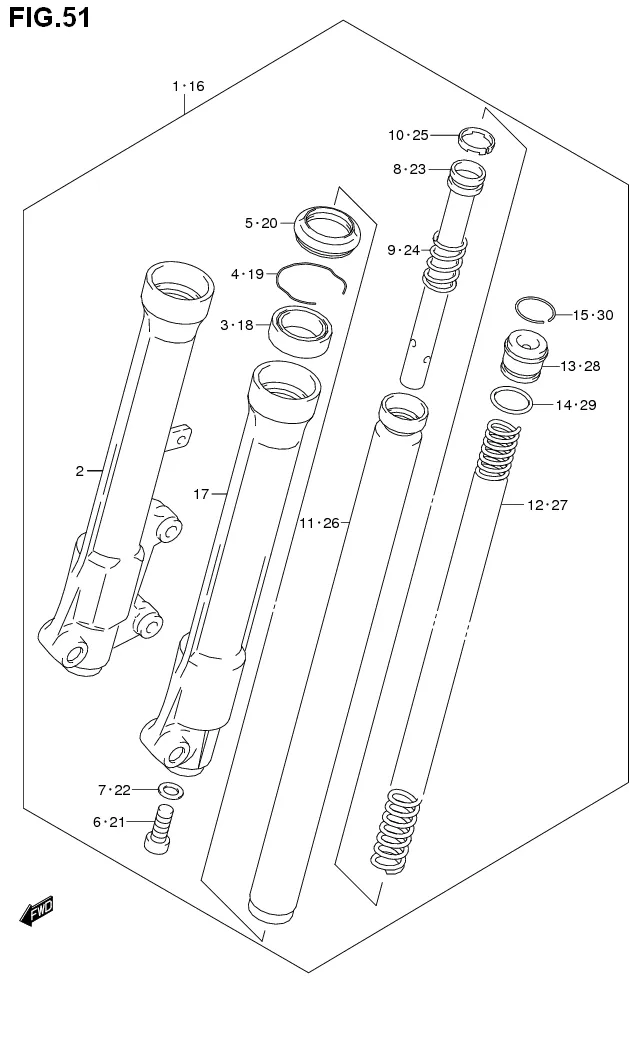

FIG.51 FRONT FORK DAMPER

FIG.51 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51103B10J00N291		 DAMPER ASSY FRONT FORK RH (BLACK 50% GLOSS) 1 -
2 DISCONTINUE
SUB: 51131B10J00N291		 ?TUBE OUTER RH (BLACK 50% GLOSS) 1 -
3 51153-09G00-000
SUB: 51153B09G00N000		 ?OIL SEAL 1 Rp16.500
4 51156-09G00-000
SUB: 51156B09G00N000		 ?RING, SNAP 1 Rp4.500
5 51571-09G00-000
SUB: 51571B09G00N000		 ?SEAL, DUST 1 Rp8.000
6 51147-42AA0-000
SUB: 51147B42AA0N000		 ?BOLT 1 Rp8.500
7 51148-31030-000
SUB: 51148B31030N000		 ?PACKING 1 Rp4.000
8 51194-10J00-000
SUB: 51194B10J00N000		 ?CYLINDER 1 Rp25.500
9 51177-47E01-000
SUB: 51177B47E01N000		 ?SPRING 1 Rp5.500
10 51196-16H00-000
SUB: 51196B16H00N000		 ?RING, PISTON 1 Rp7.000
11 51110-16H00-000
SUB: 51110B16H00N000		 ?TUBE, INNER 1 Rp164.500
12 51171-10J00-000
SUB: 51171B10J00N000		 ?SPRING, FRONT 1 Rp25.000
13 51175-09G00-000
SUB: 51175B09G00N000		 ?CAP 1 Rp10.500
14 51117-09G00-000
SUB: 51117B09G00N000		 ?O RING 1 Rp3.500
15 51169-09G00-000
SUB: 51169B09G00N000		 ?RING, STOPPER 1 Rp4.000
16 DISCONTINUE
SUB: 51104B10J00N291		 DAMPER ASSY FRONT FORK LH (BLACK 50% GLOSS) 1 -
17 DISCONTINUE
SUB: 51141B10J00N291		 ?TUBE OUTER LH (BLACK 50% GLOSS) 1 -
18 51153-09G00-000
SUB: 51153B09G00N000		 ?SEAL, OIL 1 Rp16.500
19 51156-09G00-000
SUB: 51156B09G00N000		 ?RING, SNAP 1 Rp4.500
20 51571-09G00-000
SUB: 51571B09G00N000		 ?SEAL, DUST 1 Rp8.000
21 51147-42AA0-000
SUB: 51147B42AA0N000		 ?BOLT 1 Rp8.500
22 51148-31030-000
SUB: 51148B31030N000		 ?PACKING 1 Rp4.000
23 51194-10J00-000
SUB: 51194B10J00N000		 ?CYLINDER 1 Rp25.500
24 51177-47E01-000
SUB: 51177B47E01N000		 ?SPRING 1 Rp5.500
25 51196-16H00-000
SUB: 51196B16H00N000		 ?RING, PISTON 1 Rp7.000
26 51110-16H00-000
SUB: 51110B16H00N000		 ?TUBE, INNER 1 Rp164.500
27 51171-10J00-000
SUB: 51171B10J00N000		 ?SPRING, FRONT 1 Rp25.000
28 51175-09G00-000
SUB: 51175B09G00N000		 ?CAP 1 Rp10.500
29 51117-09G00-000
SUB: 51117B09G00N000		 ?O RING 1 Rp3.500
30 51169-09G00-000
SUB: 51169B09G00N000		 ?RING, STOPPER 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
