AXELO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.35 FRAMEFIG.36 STANDFIG.37 FOOTRESTFIG.38 FUEL TANKFIG.39 FRAME COVERFIG.40 FRAME HEAD COVERFIG.41 LEGSHIELDFIG.42 FRONT FENDERFIG.43 HANDLEBAR (FL125SCD/RCDL1 P12)FIG.44 HANDLEBAR (FL125RCMDL1 P12)FIG.45 HANDLE COVERFIG.46 HANDLE LEVERFIG.47 REAR FENDERFIG.48 LUGGAGE BOXFIG.49 LABELFIG.50 SEATFIG.51 FRONT FORK DAMPERFIG.52 FRONT FORK BRACKETFIG.53 FRONT WHEELFIG.54 FRONT CALIPERFIG.55 FRONT MASTER CYLINDERFIG.56 REAR SWINGINGARMFIG.57 CHAINCASEFIG.58 REAR WHEEL (FL125RCD/RCMDL1 P12)FIG.59 REAR WHEEL (FL125SCDL1 P12)FIG.60 REAR CALIPER (FL125RCD/RCMDL1 P12)FIG.61 REAR MASTER CYLINDER (FL125RCD/RCMDL1 P12)

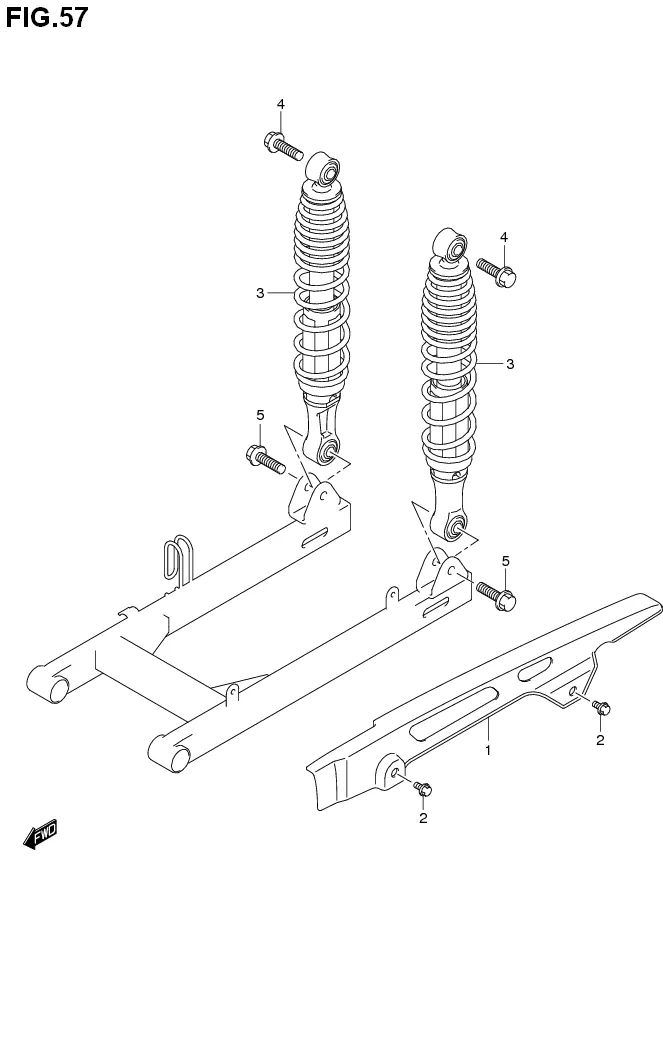

FIG.57 CHAINCASE

FIG.57 CHAINCASE
No No. Part Description Qty Price Per Pcs Remarks
1 61310-23F00-000
SUB: 61310B23F00N000		 CASE, CHAIN UPPER 1 Rp63.500
2 09111-06107-000
SUB: 09111B06107N000		 BOLT (6X12) 2 Rp4.000
3 62100-10J00-019
SUB: 62100B10J00N019		 ABSORBER ASSY,REAR SHOCK (SOLID BLACK) 2 Rp246.500
4 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 2 Rp5.500
5 09103-10229-000
SUB: 09103B10229N000		 BOLT (10X32) 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
