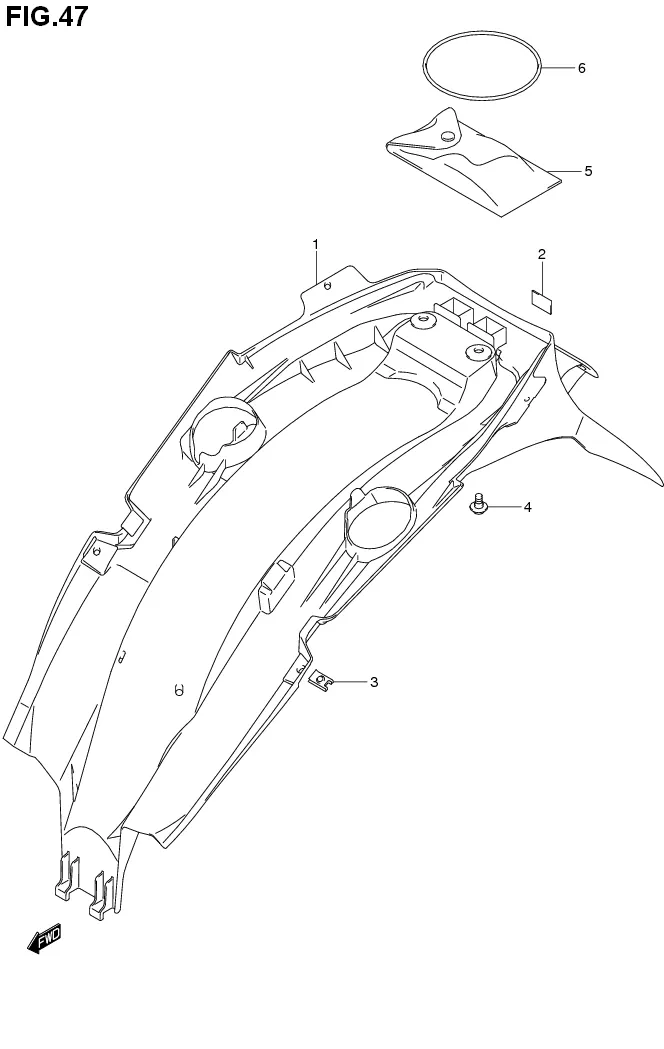

FIG.47 REAR FENDER

FIG.47 REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 63111-10J10-000
SUB: 63111B10J10N000		 FENDER, REAR 1 Rp64.500 SCD
1-2 63111-10J00-000
SUB: 63111B10J00N000		 FENDER, REAR 1 Rp64.500 RCD/RCMD
2 63191-10J00-000
SUB: 63191B10J00N000		 CUSHION, REARFENDER 2 Rp3.000
3 09148-05038-000
SUB: 09148B05038N000		 NUT 4 Rp4.000
4 09111-06107-000
SUB: 09111B06107N000		 BOLT (6X12) 2 Rp4.000
5 96510-10J00-000
SUB: 96510B10J00N000		 TOOL ASSY 1 Rp41.500
6 47435-09G10-000
SUB: 47435B09G10N000		 BAND, TOOL 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
