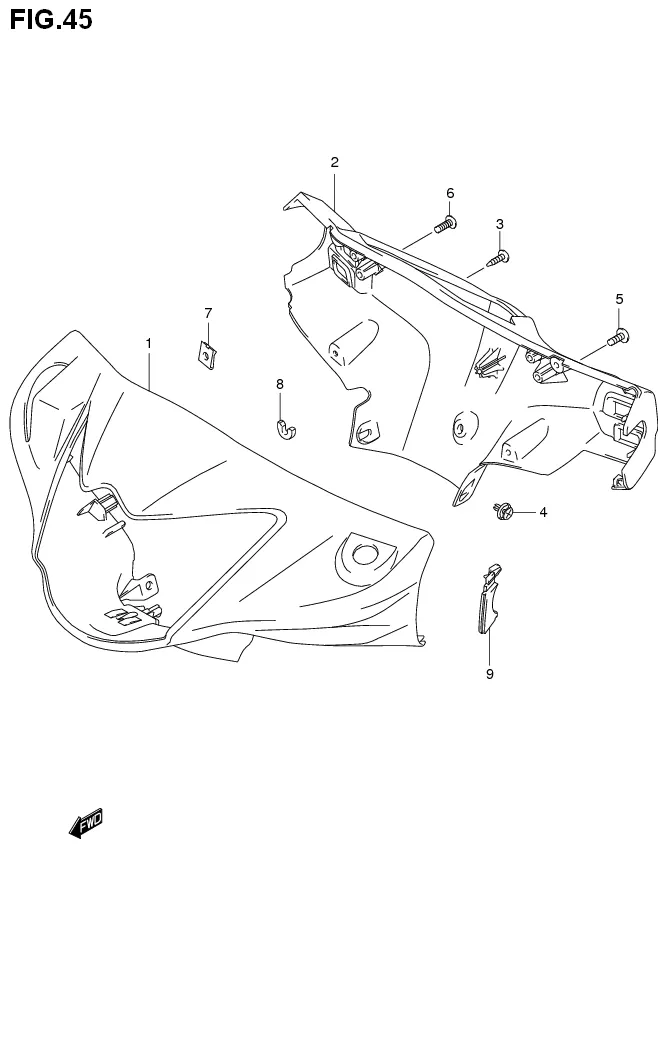

FIG.45 HANDLE COVER

FIG.45 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 56311-10J00-YTB
SUB: 56311B10J00NYTB		 COVER,HANDLE FRONT (SUMMER RED) 1 Rp98.000 SCD/RCD
1-10 56311-10J10-ZRP
SUB: 56311B10J10NZRP		 COVER,HANDLE FRONT (MAT PLATINUM SILVER) 1 Rp99.000 RCMD
1-9 56311-10J10-YVU
SUB: 56311B10J10NYVU		 COVER,HANDLE FRONT (TITAN BLACK) 1 Rp98.000 RCMD
1-8 56311-10J10-YVE
SUB: 56311B10J10NYVE		 COVER,HANDLE FRONT (MARINE BLUE) 1 Rp98.000 RCMD
1-7 56311-10J10-YUJ
SUB: 56311B10J10NYUJ		 COVER,HANDLE FRONT (MACHO BRIGHT BLUE) 1 Rp98.000 RCMD
1-6 56311-10J10-YTB
SUB: 56311B10J10NYTB		 COVER,HANDLE FRONT (SUMMER RED) 1 Rp98.000 RCMD
1-5 56311-10J00-ZRP
SUB: 56311B10J00NZRP		 COVER,HANDLE FRONT (MAT PLATINUM SILVER) 1 Rp99.000 SCD/RCD
1-4 56311-10J00-YVU
SUB: 56311B10J00NYVU		 COVER,HANDLE FRONT (TITAN BLACK) 1 Rp98.000 SCD/RCD
1-3 56311-10J00-YVE
SUB: 56311B10J00NYVE		 COVER,HANDLE FRONT (MARINE BLUE) 1 Rp98.000 SCD/RCD
1-1 56311-10J00-PZ5
SUB: 56311B10J00NPZ5		 COVER,HANDLE FRONT (FRASH GREEN) 1 Rp99.000 SCD/RCD
2 56321-10J00-291
SUB: 56321B10J00N291		 COVER,HANDLE REAR (BLACK 50% GLOSS) 1 Rp40.000
3 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
4 09409-06322-5PK CLIP 2 Rp19.000
5 02142-0512B-000
SUB: 02142B0512BN000		 SCREW 1 Rp5.500
6 56316-45H00-000
SUB: 56316B45H00N000		 SCREW, HANDLE COVER RR UPPER 2 Rp6.500
7 09148-04019-000
SUB: 09148-04034-000		 NUT 2 Rp6.500
8 DISCONTINUE
SUB: 56313B16H00N000		 CUSHION, HANDLE COVER FR 1 -
9 56323-10J00-291
SUB: 56323B10J00N291		 CAP,HANLDE COVER (BLACK 50% GLOSS) 1 Rp8.000 SCD/RCD

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
