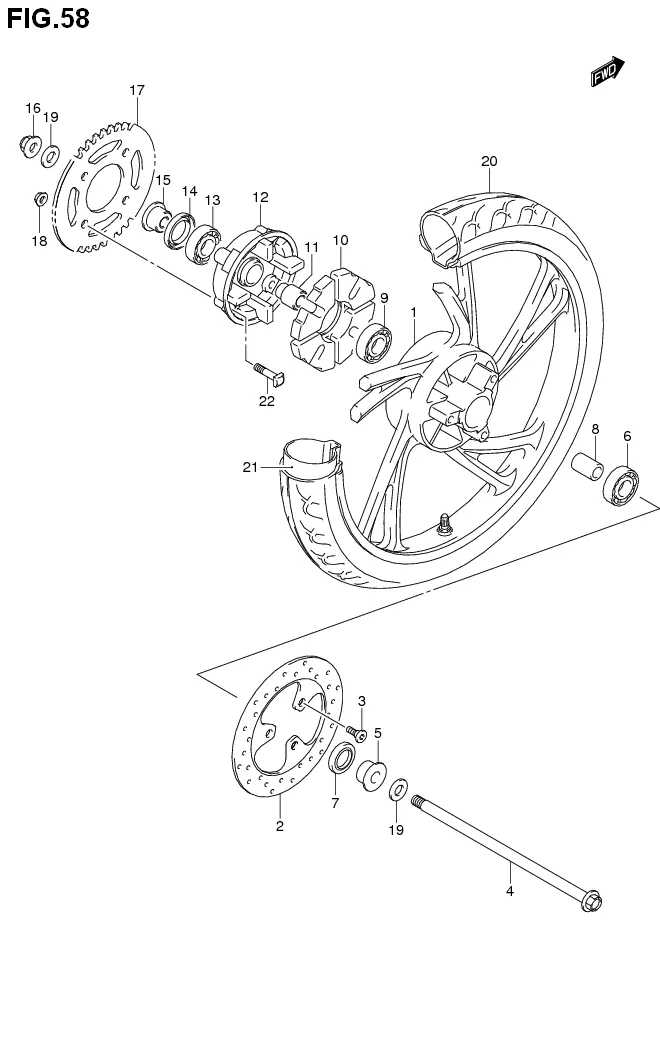

FIG.58 REAR WHEEL (FL125RCD/RCMDL1 P12)

FIG.58 REAR WHEEL (FL125RCD/RCMDL1 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 64111-16H00-000
SUB: 64111B16H00N000		 WHEEL, REAR (17X1.60) 1 Rp964.000
2 69211-16H20-000
SUB: 69211B16H20N000		 DISC, REAR BRAKE 1 Rp255.000
3 59218-09G10-000
SUB: 59218B09G10N000		 BOLT 3 Rp7.000
4 64711-16H00-000
SUB: 64711B16H00N000		 AXLE, REAR 1 Rp24.500
5 64721-20G00-000
SUB: 64721B20G00N000		 SPACER, REAR AXLE 1 Rp23.500
6 08140-63017-000
SUB: 08140B63017N000		 BEARING 1 Rp32.000 RH
7 09285-25008-000
SUB: 09285-25003L000		 OIL SEAL (25X40X6) 1 Rp8.000
8 09180-12086-000
SUB: 09180B12086N000		 SPACER (12.6X19X68) 1 Rp44.000
9 08140-62017-000
SUB: 08140B62017N000		 BEARING 1 Rp25.000 LH
10 64651-30D00-000
SUB: 64651B30D00N000		 ABSORBER, REAR HUB SHOCK 1 Rp27.000
11 64733-16H00-000
SUB: 64733B16H00N000		 RETAINER, REAR SPROCKET DRUM 1 Rp12.000
12 64610-10J00-000
SUB: 64610B10J00N000		 DRUM, REAR SPROCKET 1 Rp87.000
13 08113-62037-001
SUB: 08113B62037N001		 BEARING 1 Rp20.000
14 09285-25008-000
SUB: 09285-25003L000		 OIL SEAL (25X40X6) 1 Rp8.000
15 64721-20G00-000
SUB: 64721B20G00N000		 SPACER, REAR AXLE 1 Rp23.500
16 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
17 64511-10J00-000
SUB: 64511B10J00N000		 SPROCKET, REAR (NT:34) 1 Rp118.000
18 08319-3108A-000
SUB: 08319B3108AN000		 NUT 4 Rp4.000
19 09160-12085-000
SUB: 09160B12085N000		 WASHER (12.5X26X2.3) 2 Rp6.500
20 DISCONTINUE
SUB: 65110B16H20N000		 TIRE, REAR (80/90-17 44P) 1 -
21 DISCONTINUE
SUB: 55200B16H30N000		 TUBE ASSY, WHEEL INNER 1 -
22 09105-08011-000
SUB: 09105-08011L000		 BOLT (8X36) 4 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
