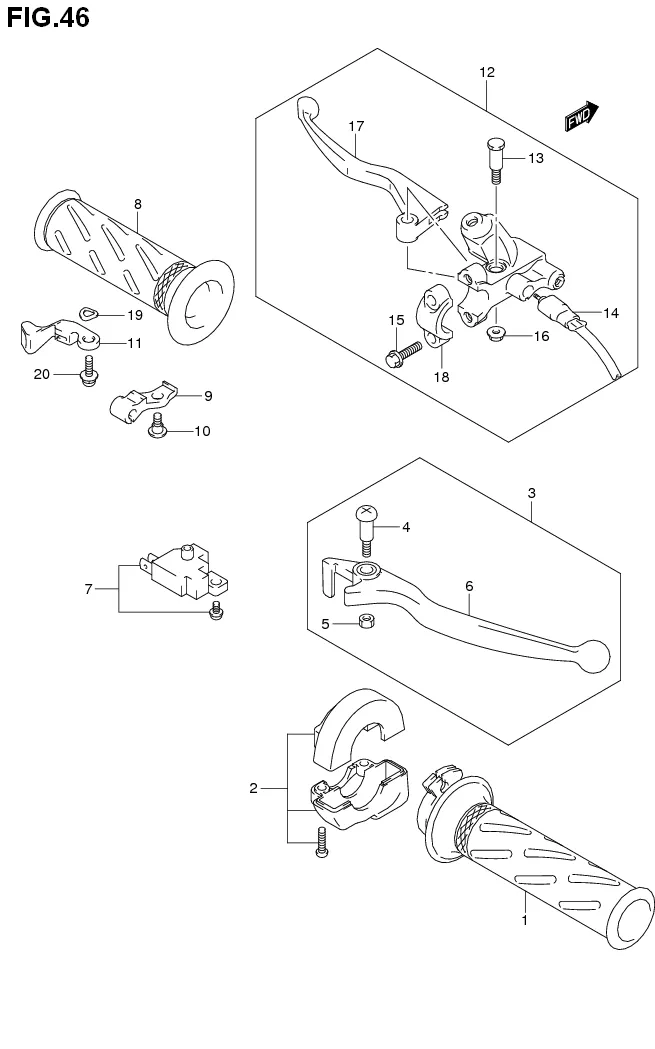

FIG.46 HANDLE LEVER

FIG.46 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-09GD0-000
SUB: 57110B09GD0N000		 GRIP, THROTTLE 1 Rp24.000
2 57100-09G11-000
SUB: 57100B09G11N000		 CASE ASSY, THROTTLE 1 Rp19.500
3 57300-41HC0-000
SUB: 57300B41HC0N000		 LEVER, BRAKE 1 Rp55.000
4 09139-06114-000 ?SCREW (6X28) 1 Rp15.000
5 57433-09F00-000
SUB: 57433B09F00N000		 ?NUT 1 Rp3.500
6 57421-41HC0-000
SUB: 57421B41HC0N000		 ?LEVER, BRAKE 1 Rp47.000
7 57460-41H00-000
SUB: 57460B41H00N000		 SWITCH, STOP 1 Rp69.500
8 57211-22D01-000
SUB: 57211-22D01L000		 GRIP, LH 1 Rp38.500
9 DISCONTINUE
SUB: 58711B09G00N000		 HOLDER, STARTER CABLE 1 -
10 09139-05057-000
SUB: 09139B05057N000		 SCREW (5X12.8) 1 Rp6.500
11 58721-23F01-000
SUB: 58721B23F00N000		 LEVER, STARTER 1 Rp10.500
12 DISCONTINUE
SUB: 57500B10J10N000		 LEVER ASSY, CLUTCH 1 - RCMD
13 57431-23F00-000 ?BOLT, LEVER SET 1 Rp8.500 RCMD
14 57470-10J40-000
SUB: 57470B10J10N000		 ?SWITCH ASSY, CLUTCH 1 Rp46.500 RCMD
15 57512-21D10-000 ?BOLT, CLUTCH LEVER HOLDER 2 Rp3.500 RCMD
16 57513-23F00-000 ?NUT, LEVER SET 1 Rp4.000 RCMD
17 DISCONTINUE
SUB: 57620B16H00N000		 ?LEVER, CLUTCH 1 - RCMD
18 DISCONTINUE
SUB: 59671B09G00N000		 ?HOLDER 1 - RCMD
19 DISCONTINUE
SUB: 09164B07001N000		 WASHER 1 -
20 02112-7516A-000
SUB: 02112B7516AN000		 SCREW 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
