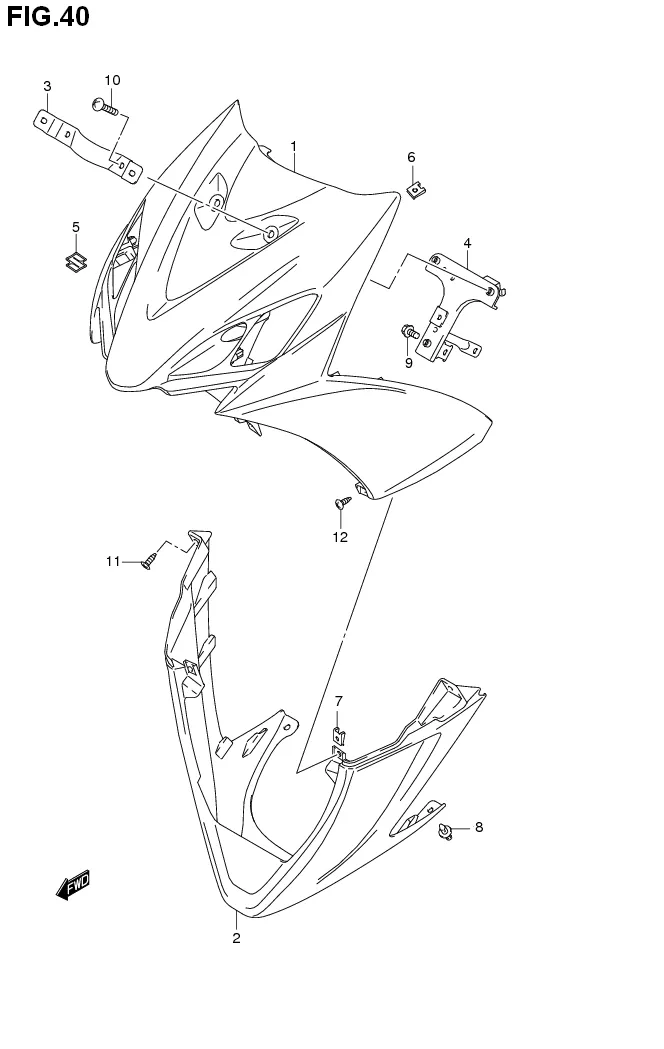

FIG.40 FRAME HEAD COVER

FIG.40 FRAME HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 48111-10J00-YUH
SUB: 48111B10J00NYUH		 SHIELD,LEG FRONT (BRILLIANT WHITE) 1 Rp236.500
1-3 48111-10J00-YUJ
SUB: 48111B10J00NYUJ		 SHIELD LEG FRONT (MACHO BRIGHT BLUE) 1 Rp231.000
1-4 48111-10J00-YVE
SUB: 48111B10J00NYVE		 SHIELD LEG FRONT (MARINE BLUE) 1 Rp251.500
1-5 48111-10J00-YVU
SUB: 48111B10J00NYVU		 SHIELD LEG FRONT (TITAN BLACK) 1 Rp230.500
1-6 48111-10J00-ZRP
SUB: 48111B10J00NZRP		 SHIELD LEG FRONT (MAT PLATINUM SILVER) 1 Rp224.000
1-1 48111-10J00-YTB
SUB: 48111B10J00NYTB		 SHIELD LEG FRONT (SUMMER RED) 1 Rp299.500
2-7 48138-10J00-YVU
SUB: 48138B10J00NYVU		 SHIELD,LEG LOWER (TITAN BLACK) 1 Rp139.500
2-8 48138-10J00-ZRP
SUB: 48138B10J00NZRP		 SHIELD,LEG LOWER (MAT PLATINUM SILVER) 1 Rp142.000
2-6 48138-10J00-YVE
SUB: 48138B10J00NYVE		 SHIELD,LEG LOWER (MARINE BLUE) 1 Rp139.500
2-5 48138-10J00-YUJ
SUB: 48138B10J00NYUJ		 SHIELD,LEG LOWER (MACHO BRIGHT BLUE) 1 Rp142.000
2-4 48138-10J00-YUH
SUB: 48138B10J00NYUH		 SHIELD,LEG LOWER (BRILLIANT WHITE) 1 Rp142.000
2-3 48138-10J00-YTB
SUB: 48138B10J00NYTB		 SHIELD,LEG LOWER (SUMMER RED) 1 Rp139.500
2-2 48138-10J00-YMG
SUB: 48138B10J00NYMG		 SHIELD,LEG LOWER (MAJESTIC GOLD) 1 Rp142.000
2-1 48138-10J00-PZ5
SUB: 48138B10J00NPZ5		 SHIELD,LEG LOWER (FRASH GREEN) 1 Rp142.000
3 DISCONTINUE
SUB: 48190B10J00N000		 PLATE, FRONT LICENSE 1 -
4 51860-16H50-000
SUB: 51860B16H50N000		 BRACE, LEG SHIELD 1 Rp45.500
5 68641-22J11-000
SUB: 68211B25GA0N000		 EMBLEM, S 1 Rp24.000
6 09148-05038-000
SUB: 09148B05038N000		 NUT 4 Rp4.000
7 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
8 09409-06314-5PK
SUB: 09409B06314N5PK		 CLIP 2 Rp3.500
9 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
10 02142-0635A-000 SCREW 2 Rp6.500
11 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
12 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
