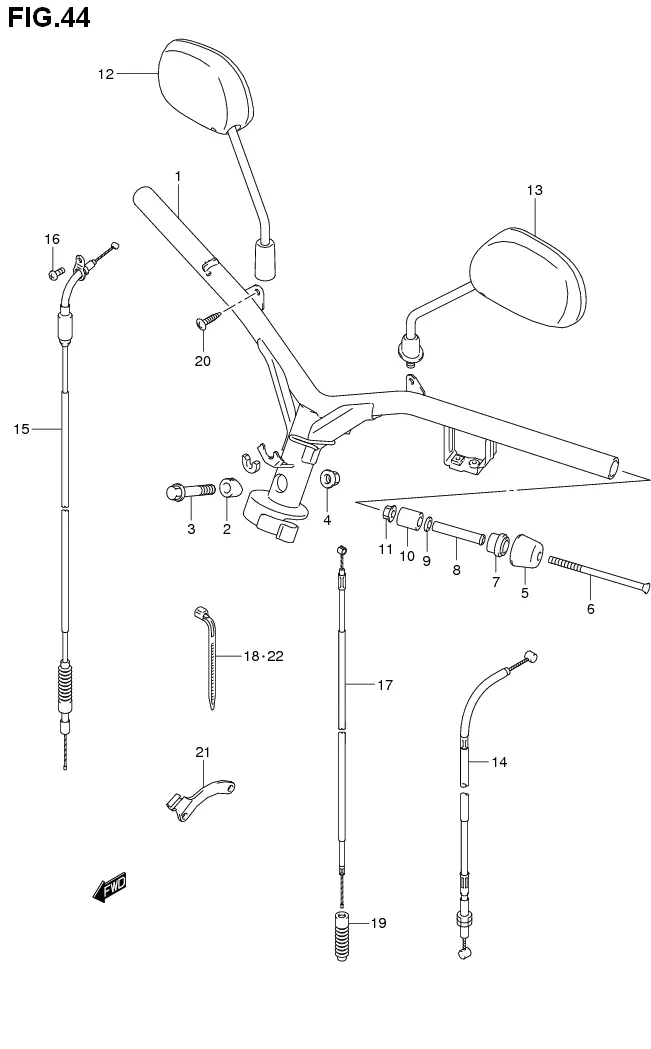

FIG.44 HANDLEBAR (FL125RCMDL1 P12)

FIG.44 HANDLEBAR (FL125RCMDL1 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 56110-10J10-000
SUB: 56110B10J10N000		 HANDLEBAR 1 Rp152.000
2 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER, HANDLE 1 Rp8.000
3 09103-10126-000
SUB: 09103B10126N000		 BOLT (10X48) 1 Rp28.500
4 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
5 56278-28F10-000
SUB: 56278B28F10N000		 BALANCER 2 Rp115.500
6 56277-16H00-000
SUB: 56277B16H00N000		 SCREW 2 Rp10.500
7 56272-28F00-000
SUB: 56272B28F00N000		 EXPANDER, OUTER 2 Rp11.500
8 56276-16H00-000 SPACER 2 Rp10.000
9 09160-06126-000
SUB: 09160B06126N000		 WASHER (6.5X14X2) 2 Rp3.000
10 56272-23F10-000
SUB: 56272B23F10N000		 EXPANDER, INNER 2 Rp4.500
11 09159-06024-000
SUB: 09159B06024N000		 NUT 2 Rp4.000
12 56500-10J10-000
SUB: 56500B10J10N000		 MIRROR ASSY, REAR VIEW RH 1 Rp94.000
13 56600-10J10-000
SUB: 56600B10J10N000		 MIRROR ASSY, REAR VIEW LH 1 Rp94.000
14 58200-10J10-000
SUB: 58200B10J10N000		 CABLE ASSY, CLUTCH 1 Rp58.000
15 58300-10J10-000
SUB: 58300B10J10N000		 CABLE ASSY, THROTTLE 1 Rp50.500
16 02112-0512A-000
SUB: 02112B0512AN000		 SCREW 1 Rp2.500
17 58410-10J10-000
SUB: 58410B10J10N000		 CABLE, STARTER 1 Rp23.500
18 09407-19401-000 CLAMP (L:235) 1 Rp31.500
19 58333-35401-000 SEAL, DUST 1 Rp35.500
20 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
21 DISCONTINUE
SUB: 58634B16H00N000		 STOPPER, CLUTCH CABLE 1 -
22 09407-14407-000 CLAMP (L:145) 1 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
