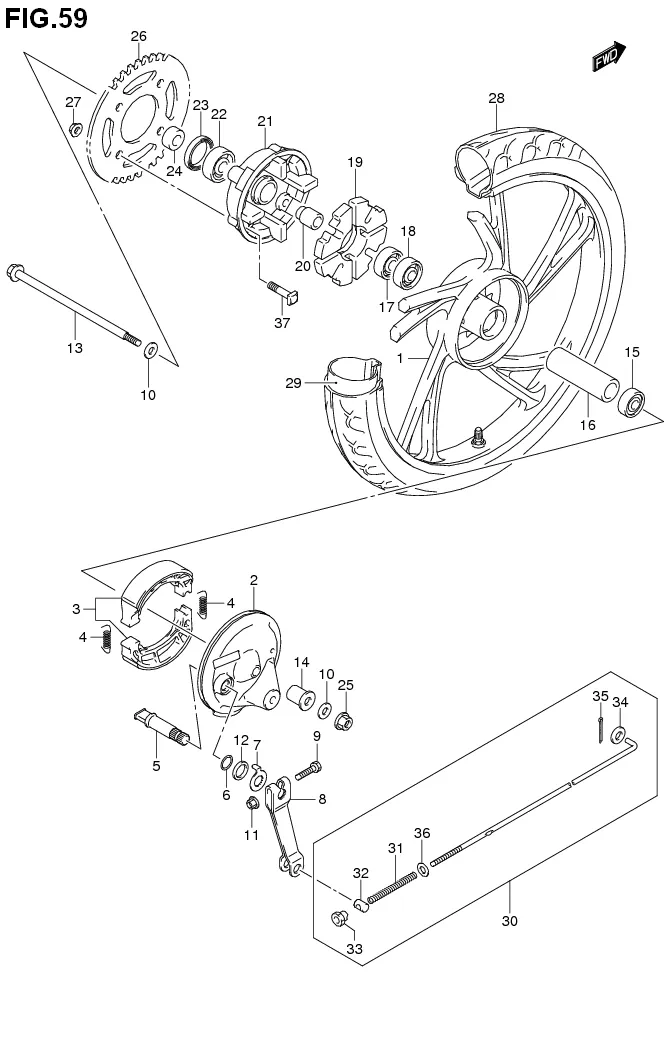

FIG.59 REAR WHEEL (FL125SCDL1 P12)

FIG.59 REAR WHEEL (FL125SCDL1 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 64150B10J00N291		 WHEEL COMP,REAR(17X1.60) (BLACK 50% GLOSS) 1 -
2 DISCONTINUE
SUB: 64210B10J00N000		 PANEL, REAR BRAKE ANCHOR 1 -
3 DISCONTINUE
SUB: 54410B23F10N000		 SHOE, BRAKE 2 -
4 09443-07025-000
SUB: 09443B07025N000		 SPRING 2 Rp3.500
5 DISCONTINUE
SUB: 64441B21D10N000		 SHAFT, BRAKE CAM 1 -
6 09280-14011-000 O RING (D:2.5,ID:13.8) 1 Rp7.500
7 DISCONTINUE
SUB: 54492B35400N000		 PLATE, BRAKE LINING 1 -
8 64451-20G00-000
SUB: 64451B20G00N000		 LEVER, BRAKE CAM 1 Rp9.500
9 DISCONTINUE
SUB: 09103B06045N000		 BOLT (6X32) 1 -
10 09160-12085-000
SUB: 09160B12085N000		 WASHER (12.5X26X2.3) 2 Rp6.500
11 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
12 09160-14054-000
SUB: 09160B14054N000		 WASHER (14.5X22X1) 1 Rp12.500
13 64711-16H00-000
SUB: 64711B16H00N000		 AXLE, REAR 1 Rp24.500
14 64741-07H00-000
SUB: 64741B07H00N000		 SPACER, REAR AXLE RH 1 Rp8.500
15 08140-63017-000
SUB: 08140B63017N000		 BEARING 1 Rp32.000 RH
16 09180-12143-000
SUB: 09180-12143L000		 SPACER (12.5X19X48) 1 Rp9.000
17 08140-62017-000
SUB: 08140B62017N000		 BEARING 1 Rp25.000 LH
18 08113-62017-000
SUB: 08110B62017N000		 BEARING 1 Rp23.500 LH
19 64651-30D00-000
SUB: 64651B30D00N000		 ABSORBER, REAR HUB SHOCK 1 Rp27.000
20 64733-16H00-000
SUB: 64733B16H00N000		 RETAINER, REAR SPROCKET DRUM 1 Rp12.000
21 64610-10J00-000
SUB: 64610B10J00N000		 DRUM, REAR SPROCKET 1 Rp87.000
22 08113-62037-001
SUB: 08113B62037N001		 BEARING 1 Rp20.000
23 09285-25008-000
SUB: 09285-25003L000		 OIL SEAL (25X40X6) 1 Rp8.000
24 64721-20G00-000
SUB: 64721B20G00N000		 SPACER, RR SPROCKET DRUM 1 Rp23.500
25 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
26 64511-10J00-000
SUB: 64511B10J00N000		 SPROCKET, REAR (NT:34) 1 Rp118.000
27 08319-3108A-000
SUB: 08319B3108AN000		 NUT 4 Rp4.000
28 DISCONTINUE
SUB: 65110B16H20N000		 TIRE, REAR (80/90-17M/C 44P) 1 -
29 DISCONTINUE
SUB: 55200B16H30N000		 TUBE ASSY, INNER 1 -
30 DISCONTINUE
SUB: 43300B10J00N000		 ROD ASSY, REAR BRAKE 1 -
31 09440-09004-000
SUB: 09440-09004L000		 ?SPRING 1 Rp12.500
32 09209-11002-000
SUB: 09209B11002N000		 ?PIN 1 Rp7.500
33 09150-06010-000
SUB: 09150B06010N000		 ?NUT 1 Rp4.500
34 08322-0105A-000
SUB: 08322B0105AN000		 ?WASHER 1 Rp3.000
35 04111-2020A-000
SUB: 04111B2020AN000		 ?COTTER PIN 1 Rp5.000
36 08322-0106B-000
SUB: 08322B0106BN000		 ?WASHER 1 Rp6.000
37 09105-08011-000
SUB: 09105-08011L000		 BOLT (8X36) 4 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
