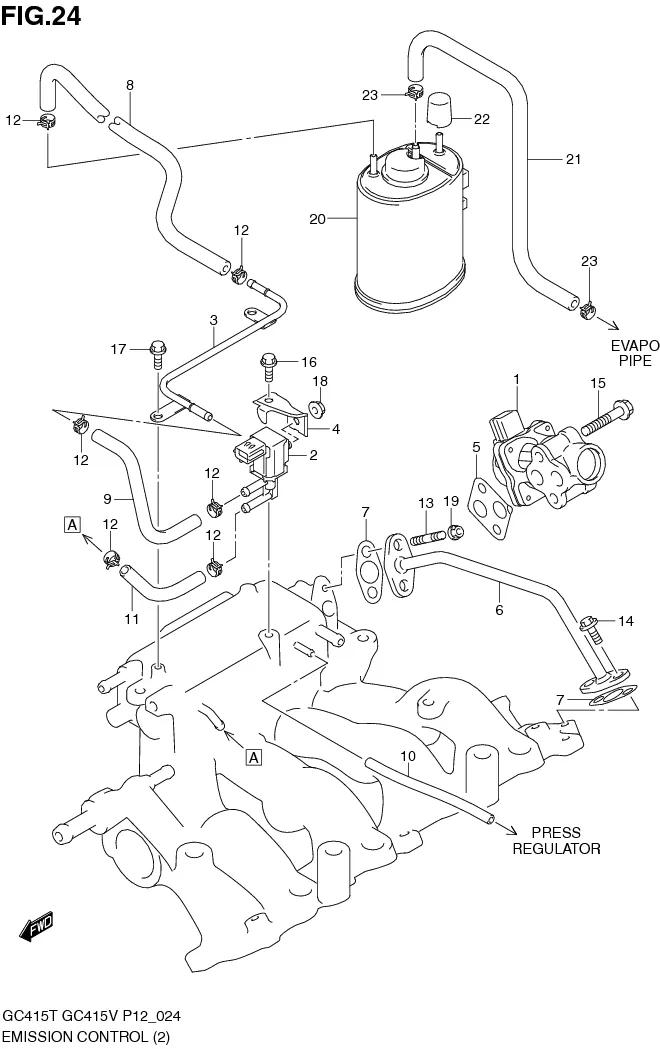

FIG.24 EMISSION CONTROL (TYPE 1: EURO2)

FIG.24 EMISSION CONTROL (TYPE 1: EURO2)
No No. Part Description Qty Price Per Pcs Remarks
1 18111-77E02-000 VALVE, EGR 1 Rp3.137.000
2 DISCONTINUE
SUB: 18117-52G00-000		 VALVE ASSY, DUTY FOR PURGE 1 -
3 18340-61J00-000 PIPE, PURGE 1 Rp43.000
4 DISCONTINUE
SUB: 18417-76A31-000		 BRACKET, PURGE VALVE 1 -
5 18529M77E01-000 GASKET, EGR VALVE 1 Rp5.500
6 18530-61J00-000 PIPE, EGR 1 Rp368.500
7 18533-77E00-000 GASKET, EGR PIPE 2 Rp29.500
8 18562-61J00-000 HOSE, PURGE (CSTR TO PIPE) 1 Rp23.000
9 18563-61J00-000 HOSE, PURGE (PIPE TO VSV) 1 Rp10.000
10 09355-35006-601
SUB: 09355-35754-601		 HOSE, VAC (RGLTR TO MANF) 1 Rp66.000 L:601->200
11 09355-54115-600 HOSE, VAC (VSV TO MANF) 1 Rp106.500 L:600->100
12 09401-10409-000
SUB: 09401B10409N000		 CLIP 6 Rp7.500
13 01421-0616A-000
SUB: 01421B0616AN000		 STUD BOLT 2 Rp3.500
14 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
15 01550-0850A-000 BOLT 2 Rp3.500
16 02162-0612A-000 BOLT 1 Rp11.000
17 02162-0612A-000 BOLT 2 Rp11.000
18 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
19 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
20 18560-76A31-000 CANISTER 1 Rp1.041.500
21 18561-61J10-000
SUB: 18561-61J00-000		 HOSE, CNSTR INLET 1 Rp15.000
22 18571-65H20-000
SUB: 18571B65H20N000		 CAP 1 Rp11.000
23 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
