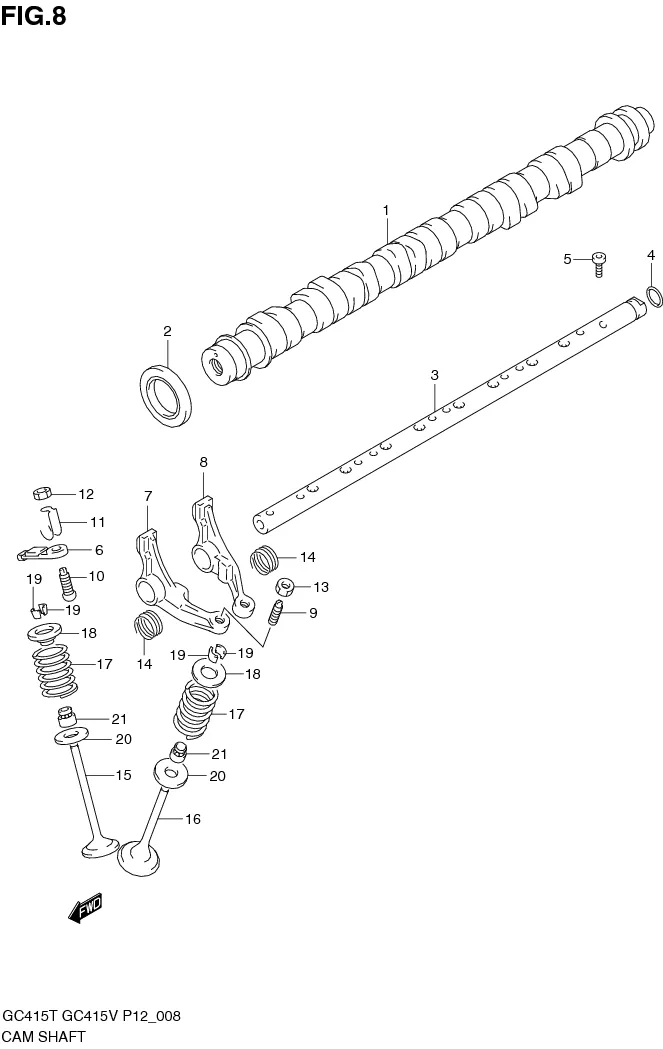

FIG.8 CAM SHAFT

FIG.8 CAM SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12710-52G00-000
SUB: 12710B52G00N000		 CAM SHAFT 1 Rp2.957.000
2 12739M78L00-000
SUB: 09283M32042-000		 SEAL, OIL (32X47X6) 1 Rp35.000
3 12860-71C00-000 SHAFT, ROCKER ARM 1 Rp1.068.500
4 09280-12009-000 O RING (D:1.9,ID:12.6) 1 Rp17.500
5 07130-0616A-000
SUB: 07130B0616AN000		 BOLT 6 Rp3.500
6 12841-71C00-000 ARM, VALVE ROCKER INTAKE 8 Rp235.000
7 12844M71C01-000 ARM, VALVE ROCKER EXHAUST NO.1 4 Rp160.500
8 12845M71C01-000 ARM, VALVE ROCKER EXHAUST NO.2 4 Rp162.000
9 12842M32411-000 SCREW, ADJUSTING 8 Rp11.000
10 12846M61D10-000
SUB: 12846M61D00-000		 SCREW, ADJUSTING 8 Rp16.500
11 12849-71C03-000 CLAMP, ROCKER ARM 8 Rp29.500
12 12843-32400-000 NUT, ADJUSTING SCREW INTK 8 Rp19.000
13 12843-32400-000 NUT, ADJUSTING SCREW INTK 8 Rp19.000
14 12891-71C00-000 SPRING, ROCKER ARM 5 Rp38.500
15 12911-71C20-000 VALVE, INTAKE 8 Rp47.500
16 12915-71C70-000 VALVE, EXHAUST 8 Rp143.000
17 12921-71C01-000 SPRING 16 Rp60.500
18 12931-71C20-000 RETAINER, SPRING 16 Rp42.000
19 12932-24400-000 COTTER, VALVE 32 Rp13.000
20 12933-71C00-000 SEAT, VALVE SPRING 16 Rp19.000
21 12934M68K00-000
SUB: 09289M05012-000		 SEAL (5.5X11.5X9.3) 16 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
