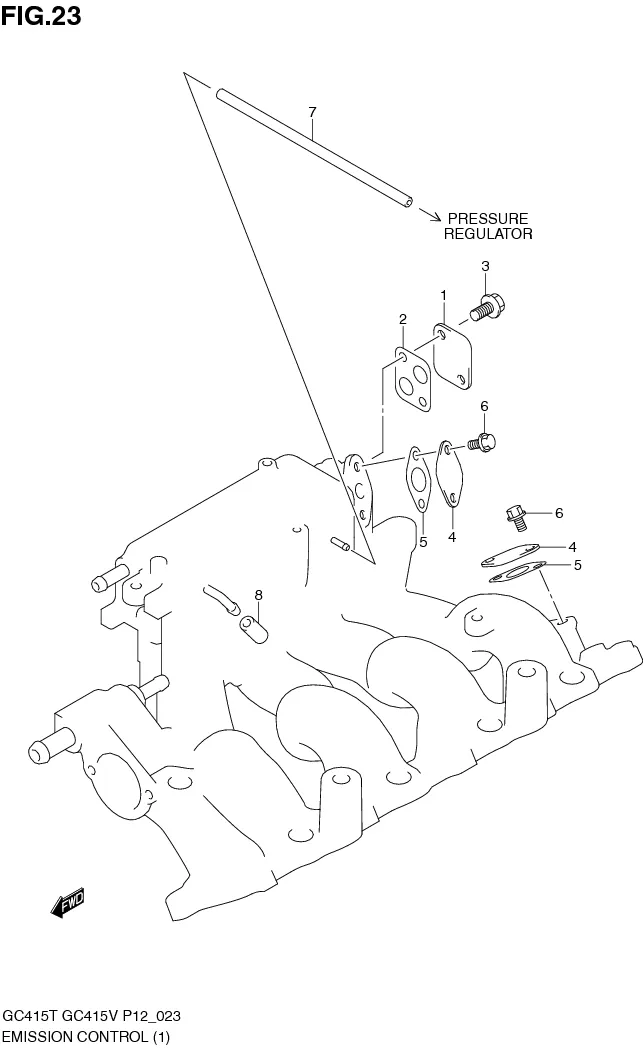

FIG.23 EMISSION CONTROL (TYPE 1)

FIG.23 EMISSION CONTROL (TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1 18491-77E00-000 PLATE, EGR VALVE 1 Rp39.000
2 18529M77E01-000 GASKET 1 Rp5.500
3 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
4 18492-77E00-000 PLATE, EGR PIPE 1 Rp33.000
5 18533-77E00-000 GASKET 1 Rp29.500
6 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
7 09355-35006-601
SUB: 09355-35754-601		 HOSE, VAC (RGLTR TO INTK) 1 Rp66.000 L:601->200
8 DISCONTINUE
SUB: 09251-05006-000		 PLUG, PURGE UNION 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
