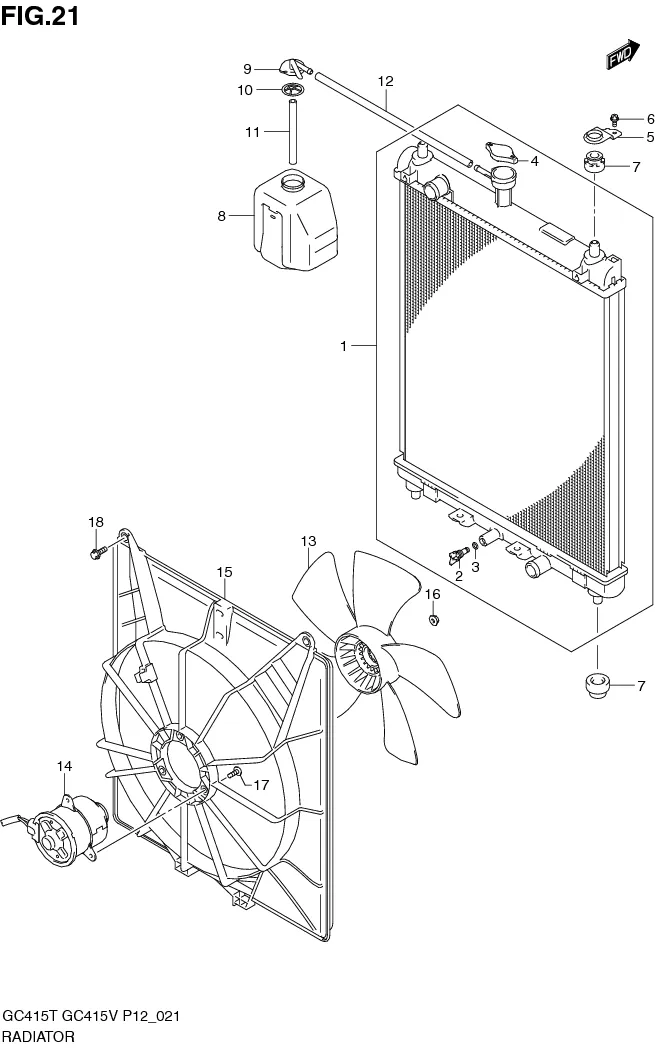

FIG.21 RADIATOR

FIG.21 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 17700-61J10-000 RADIATOR ASSY 1 Rp2.625.500 AT
1-1 17700-61J00-000 RADIATOR ASSY 1 Rp1.464.500 MT
2 17751-61A00-000
SUB: 17751B61A00N000		 .PLUG, DRAIN 1 Rp13.000
3 17759-72010-000 .GASKET, DRAIN PLUG 1 Rp17.000
4 DISCONTINUE
SUB: 17920B75F00N000		 .CAP 1 -
5 17861-61J02-000
SUB: 17861-61J01-000		 BRACKET, RADIATOR UPPER 2 Rp10.500
6 02162-0612A-000 BOLT 2 Rp11.000
7 17879-77A10-000 MOUNTING, RADIATOR 4 Rp41.500
8 17931-53F51-000 TANK, WATER RESERVOIR 1 Rp242.500
9 17932-81AA0-000 CAP, TANK 1 Rp46.000
10 17933-60B00-000
SUB: 17933B60B00N000		 RUBBER, TANK CAP 1 Rp5.500
11 09352-70111-600 HOSE 1 Rp82.500 L:600->140
12 09352-70121-600 HOSE, RESERVE TANK 1 Rp155.000 L:600->330
13-1 17111-61J00-000 FAN, COOLING 1 Rp141.000 MT:N/AIR CON
13-3 17111-61J20-000 FAN, COOLING 1 Rp141.000 AT
13-2 17111-61J10-000 FAN, COOLING 1 Rp224.500 MT:W/AIR CON
14-1 17120-61J00-000 MOTOR ASSY, FAN 1 Rp522.000 MT:N/AIR CON
14-2 17120-61J11-000
SUB: 17120-61J10-000		 MOTOR ASSY, FAN 1 Rp916.000 MT:W/AIR CON
14-3 17120-61J20-000 MOTOR ASSY, FAN 1 Rp1.392.000 AT
15-1 17760-61J00-000 SHROUD ASSY 1 Rp253.000 MT:N/AIR CON
15-2 17760-61J10-000 SHROUD ASSY 1 Rp262.000 MT:W/AIR CON
15-3 17760-61J20-000 SHROUD ASSY 1 Rp504.500 AT
16 08316-2005A-000 NUT 1 Rp13.000
17-1 17129-50F10-000 SCREW 3 Rp21.500 N/AIR CON
17-2 02142-0510A-000
SUB: 02142B0510AN000		 SCREW 3 Rp4.000 W/AIR CON
18 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
