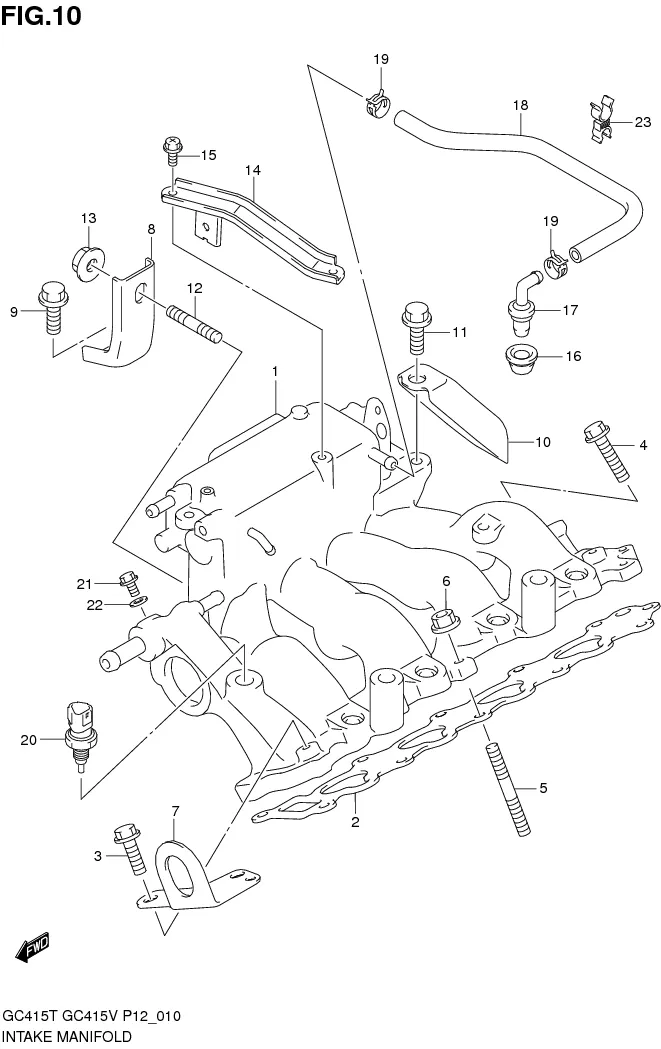

FIG.10 INTAKE MANIFOLD

FIG.10 INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110-61J10-000 MANIFOLD, INTAKE 1 Rp1.452.000
2 13119-57B00-000 GASKET 1 Rp124.000
3 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 6 Rp3.500
4 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
5 01421-0825A-000 STUD BOLT 4 Rp13.000
6 08316-1008A-000
SUB: 08316B1008AN000		 NUT 4 Rp3.500
7 11851-61J00-000 HOOK, ENGINE 1 Rp39.500
8 13161-61J01-000 STIFFENER 1 Rp58.500
9 01550-1020A-000 BOLT 1 Rp21.000
10-1 13162-60K00-000
SUB: 13162-61J00-000		 STIFFENER, REAR 1 Rp56.000 TYPE 1
10-2 13162-60K00-000 STIFFENER, REAR 1 Rp56.000 TYPE 2
11 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 2 Rp5.500
12 DISCONTINUE
SUB: 01421-1016A-000		 STUD BOLT 1 -
13 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
14 13163-61J00-000 STIFFNER, INTK MANF 1 Rp227.000 TYPE 2
15 02162-0612A-000 BOLT 2 Rp11.000 TYPE 2
16 11198M79F00-000
SUB: 11198M58B00-000		 SEAL, PCV VALVE 1 Rp16.500
17 18118-61J00-000 VALVE, PCV 1 Rp160.000
18 11193-61J00-000 HOSE, PCV 1 Rp24.000
19 09401-13414-000 CLIP 2 Rp18.000
20 13650-50G10-000 SENSOR, WATER TEMPERATURE 1 Rp585.000
21 17568-50F00-000 UNION, AIR VENT 1 Rp35.500
22 09168-06026-000 GASKET (6.4X11.5X0.8) 1 Rp20.000
23 DISCONTINUE
SUB: 09408-00174-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
