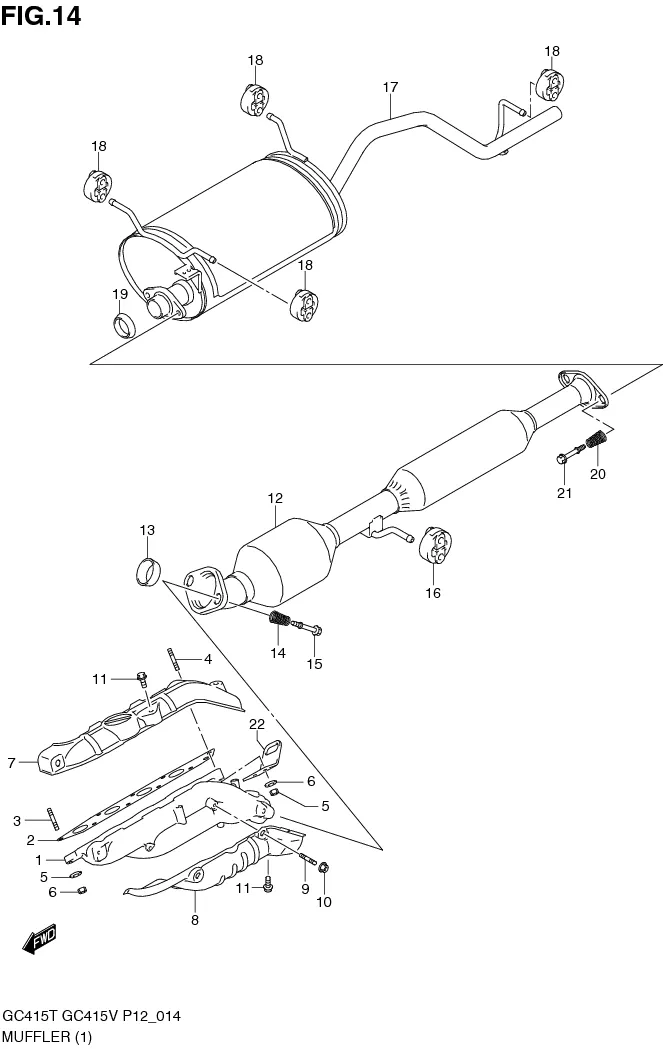

FIG.14 MUFFLER (TYPE 1)

FIG.14 MUFFLER (TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1 14111-61J00-000 MANIFOLD, EXHAUST 1 Rp711.500
2 14140-52G00-000 GASKET 1 Rp171.000
3 09108-08246-000 STUD BOLT 7 Rp21.000
4 01421-0835A-000 STUD BOLT 2 Rp13.500
5 08322M0108A-000 WASHER 7 Rp5.500
6 08310-0008A-000
SUB: 08310M0008A-000		 NUT 9 Rp12.500
7 14120-76A41-000
SUB: 14120-76A40-000		 COVER, EXH MANF UPPER 1 Rp321.500
8 14130-76A40-000 COVER, EXH MANF LOWER 1 Rp450.000
9 01411-0612A-000 STUD BOLT 2 Rp11.500
10 09159-06077-000 NUT 2 Rp17.500
11 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 6 Rp21.500
12 DISCONTINUE
SUB: 14190-61J30-000		 PIPE, EXHAUST 1 -
13 14183-76A00-000 RING, SEAL 1 Rp126.500
14 14492-67D00-000 SPRING 2 Rp64.000
15 09119-10073-000
SUB: 09119-10041-000		 BOLT (10X65) 2 Rp75.000
16 14209M78020-000
SUB: 14281-60G01-000		 MOUNTING, MUFFLER 1 Rp14.500
17 14300-61J12-000 MUFFLER 1 Rp2.034.000
18 14281-79020-000
SUB: 14281B79020N000		 MOUNTING, MUFFLER 4 Rp14.000
19 14183-76A00-000 RING, SEAL 1 Rp126.500
20 14492-67D00-000 SPRING 2 Rp64.000
21 09119-10073-000
SUB: 09119-10041-000		 BOLT (10X65) 2 Rp75.000
22 11851-76A00-000
SUB: 11851B76A00N000		 HOOK, ENGINE 1 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
