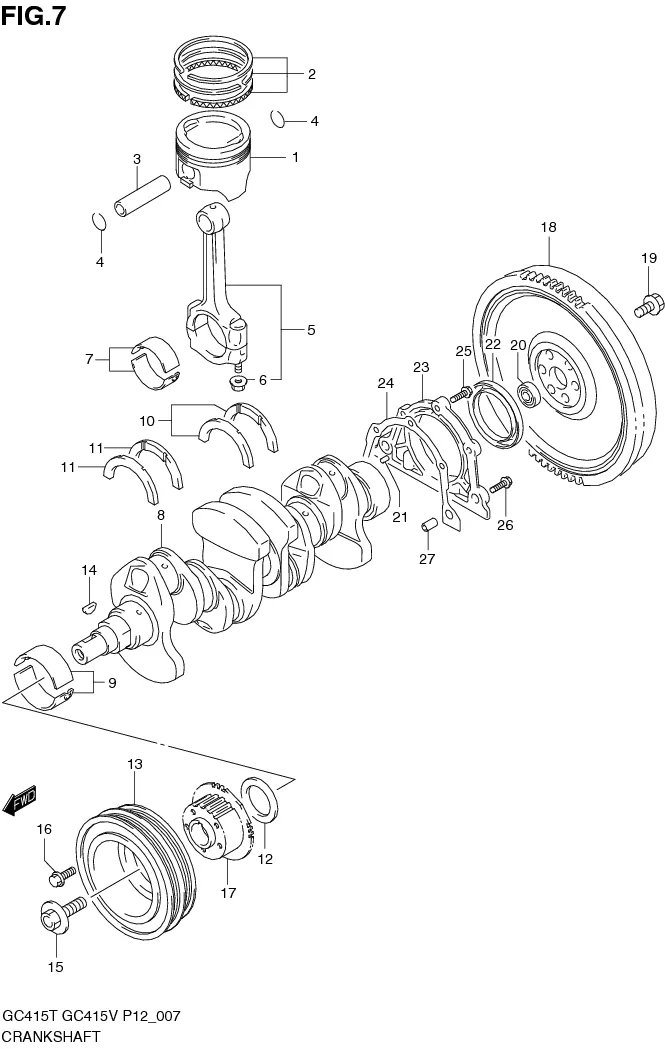

FIG.7 CRANKSHAFT

FIG.7 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1-2 12111-61J10-0A0 PISTON (STD,MARK 1) 4 Rp190.500 TYPE 2
1-3 12111-61J60-0B0 PISTON (STD,MARK 2) 4 Rp150.000 TYPE 1
1-4 12111-61J10-0B0 PISTON (STD,MARK 2) 4 Rp195.000 TYPE 2
1-5 12111-61J60-050 PISTON (OS:0.5) 4 Rp150.000 TYPE 1
1-6 12111-61J10-050 PISTON (OS:0.5) 4 Rp190.500 TYPE 2
1-1 12111-61J60-0A0 PISTON (STD,MARK 1) 4 Rp150.000 TYPE 1
2-1 12140-61J00-000 RING SET, PISTON (STD) 4 Rp98.500
2-2 12140-61J00-050 RING SET, PISTON (OS:0.5) 4 Rp98.500
3 12151-86501-000 PIN, PISTON 4 Rp58.000
4 09381-19001-000 CIRCLIP 8 Rp14.500
5 12160-75C10-000
SUB: 12160-75C00-000		 CONNROD ASSY 4 Rp963.500
6 09159M08033-000 .NUT 8 Rp14.000
7-1 12100-60822-0A0 BEARING SET, CONNROD 4 Rp166.000 (STD,T:1.5)
7-2 12100-60822-025 BEARING SET, CONNROD 4 Rp163.000 (US:0.25,T:1.625)
8 12221-75C00-000 CRANKSHAFT 1 Rp8.355.000
9-10 12300-58810-0EA BEARING SET, CRANKSHAFT 5 Rp265.500 (US:0.25,T:2.125,RED/BLUE)
9-9 12300-58810-0DA BEARING SET, CRANKSHAFT 5 Rp256.500 (US:0.25,T:2.125,RED/YELLOW)
9-8 12300-57820-0EA BEARING SET, CRANKSHAFT 5 Rp266.500 (US:0.25,T:2.125,RED/NON)
9-7 12300-57820-0DA BEARING SET, CRANKSHAFT 5 Rp297.500 (US:0.25,T:2.125,RED/BLACK)
9-6 12300-57820-0CA BEARING SET, CRANKSHAFT 5 Rp268.500 (US:0.25,T:2.125,RED/GREEN)
9-4 12340-58B00-0D0 BEARING SET, CRANKSHAFT 5 Rp176.500 (STD,T:2,YELLOW)
9-3 12340-57K02-0E0 BEARING SET, CRANKSHAFT 5 Rp198.500 (STD,T:2,NON)
9-2 12340-57K02-0D0 BEARING SET, CRANKSHAFT 5 Rp219.000 (STD,T:2,BLACK)
9-1 12340-57K02-0C0 BEARING SET, CRANKSHAFT 5 Rp190.500 (STD,T:2,GREEN)
9-5 12340-58B00-0E0 BEARING SET, CRANKSHAFT 5 Rp192.000 (STD,T:2,BLUE)
10-1 12300-78890-000 BEARING SET, CRANK THRUST 1 Rp172.500 (STD,T:2.5)
10-2 12300-78890-012 BEARING SET, CRANK THRUST 1 Rp167.500 (OS:0.125,T:2.563)
11-1 12351-61J00-000 BEARING, CRANK THRUST 2 Rp33.000 TYPE 2 (STD,T:2.5)
11-2 12351-61J00-012 BEARING, CRANK THRUST 1 Rp49.500 TYPE 2 (OS:0.125,T:2.563)
12 12739M78L00-000
SUB: 09283M32042-000		 SEAL, FRONT OIL (32X47X6) 1 Rp35.000
13 12610-61G00-000 PULLEY, CRANKSHAFT 1 Rp4.852.000
14 08341M31059-000 KEY 1 Rp4.500
15 12619-53B01-000 BOLT 1 Rp83.000
16 09103-06185-000 BOLT (6X20) 5 Rp14.500
17 12630-52G01-000 PULLEY, CRANK TIMING BELT 1 Rp295.500
18 12620-77551-000 FLYWHEEL 1 Rp923.500 MT
19 09100-10275-000
SUB: 09103-10305-000		 BOLT (10X18.5) 6 Rp30.500 MT
20 12623-61J00-000
SUB: 12623-71C01-000		 BEARING, INPUT SHAFT 1 Rp39.500 MT
21 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 1 Rp14.500 MT
22 09283-68002-000 SEAL, REAR OIL (68X86X8) 1 Rp254.500
23 11341-82001-000 HOUSING, OIL SEAL 1 Rp304.500
24 11349-60A01-000 GASKET, OIL SEAL HOUSING 1 Rp58.000
25 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 3 Rp3.500
26 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 2 -
27 04211M09109-000 PIN 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
