  5. FIG.17 FUEL PUMP

APV

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDER BLOCKFIG.4 OIL PANFIG.5 ENGINE MOUNTING (TYPE 1)FIG.6 ENGINE MOUNTING (TYPE 2)FIG.7 CRANKSHAFTFIG.8 CAM SHAFTFIG.9 TIMING BELTFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANER (TYPE 1)FIG.13 AIR CLEANER (TYPE 2)FIG.14 MUFFLER (TYPE 1)FIG.15 MUFFLER (TYPE 1:EURO2)FIG.16 MUFFLER (TYPE 2)FIG.17 FUEL PUMPFIG.18 DELIVERY PIPEFIG.19 OIL PUMPFIG.20 WATER PUMPFIG.21 RADIATORFIG.22 WATER HOSEFIG.23 EMISSION CONTROL (TYPE 1)FIG.24 EMISSION CONTROL (TYPE 1: EURO2)FIG.25 EMISSION CONTROL (TYPE 2)FIG.26 LABEL

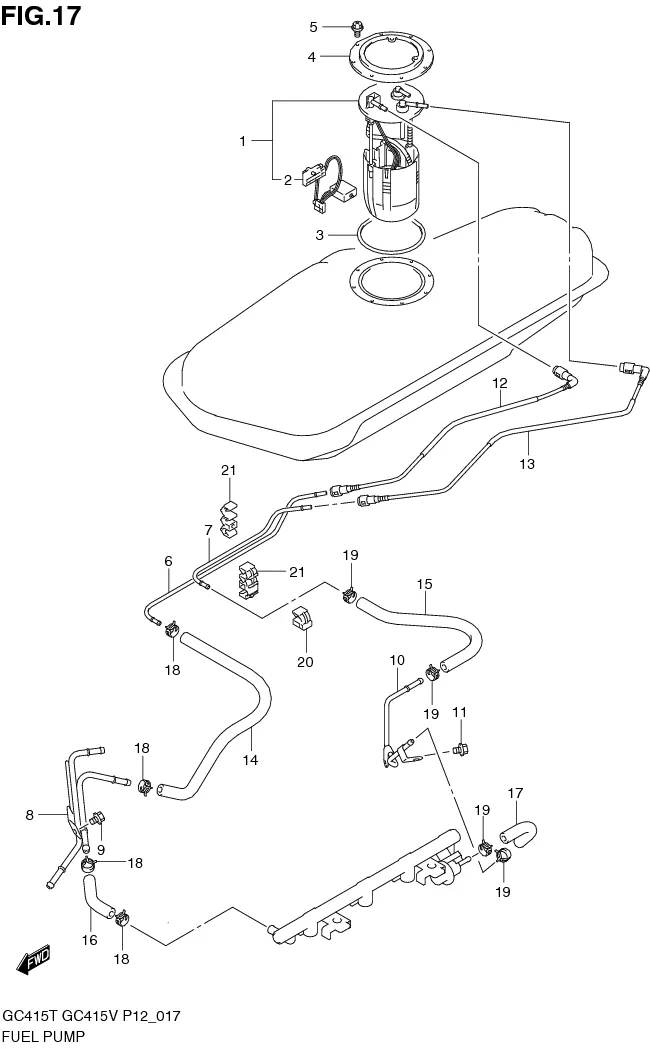

FIG.17 FUEL PUMP

FIG.17 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 15100-60K01-000		 PUMP ASSY, FUEL 1 - TYPE 2
1-1 15100-61J06-000
SUB: 15100-61J05-000		 PUMP ASSY, FUEL 1 Rp1.671.500 TYPE 1
2 34810-61J01-000 .GAUGE, FUEL LEVEL 1 Rp420.500
3 15111-80J00-000
SUB: 15111-61J00-000		 GASKET 1 Rp96.500
4 15121M61J00-000 PLATE 1 Rp23.500
5-1 02162-0610A-000 BOLT 6 Rp5.000 TYPE 1
5-2 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 8 Rp3.000 TYPE 2
6 15811-61J00-000 PIPE, FUEL (BODY SIDE) 1 Rp29.500
7 15861-61J00-000 PIPE, FUEL RTN (BODY SIDE) 1 Rp18.000
8-1 15830-61J03-000
SUB: 15830-61J01-000		 PIPE, FUEL (ENG SIDE) 1 Rp157.500 TYPE 1 ->15830-61J02 USED WITH 09356-75147-600 (L:600->170)
8-2 15830-61J03-000
SUB: 15830-61J02-000		 PIPE, FUEL (ENG SIDE) 1 Rp157.500 TYPE 1:FROM 2006-9 ->15830-61J03 USED WITH 13492-61J01
8-3 15830-61J03-000 PIPE, FUEL (ENG SIDE) 1 Rp157.500 TYPE 1:FROM 2007-7 TYPE 2
9 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
10 15850-61J00-000 PIPE, FUEL RTN (ENG SIDE) 1 Rp50.000
11 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
12 15812-61J00-000 PIPE, FUEL (PUMP TO PIPE) 1 Rp418.000
13 15862-61J00-000 PIPE, FUEL RTN (PIPE TO PUMP) 1 Rp436.000
14 15815-61J01-000 HOSE, FUEL (BODY SIDE) 1 Rp289.000
15 09356-55117-600 HOSE, FUEL RTN (BODY SIDE) 1 Rp666.000 L:600->320
16-1 09356-75147-600 HOSE, FUEL (ENG SIDE) 1 Rp464.000 TYPE 1 L:600->110
16-2 09356-75147-600 HOSE, FUEL (ENG SIDE) 1 Rp464.000 TYPE 1:FROM 2006-9 TYPE 2 L:600->170
17 09356-55117-600 HOSE, FUEL RTN (ENG SIDE) 1 Rp666.000 L:600->90
18 09401-13419-000 CLIP, FUEL HOSE 4 Rp26.500
19 09401-10409-000
SUB: 09401B10409N000		 CLIP, FUEL RTN HOSE 4 Rp7.500
20 DISCONTINUE
SUB: 15891-60A11-000		 CLAMP 1 -
21 15893-60A11-000 CLAMP 4 Rp27.000
