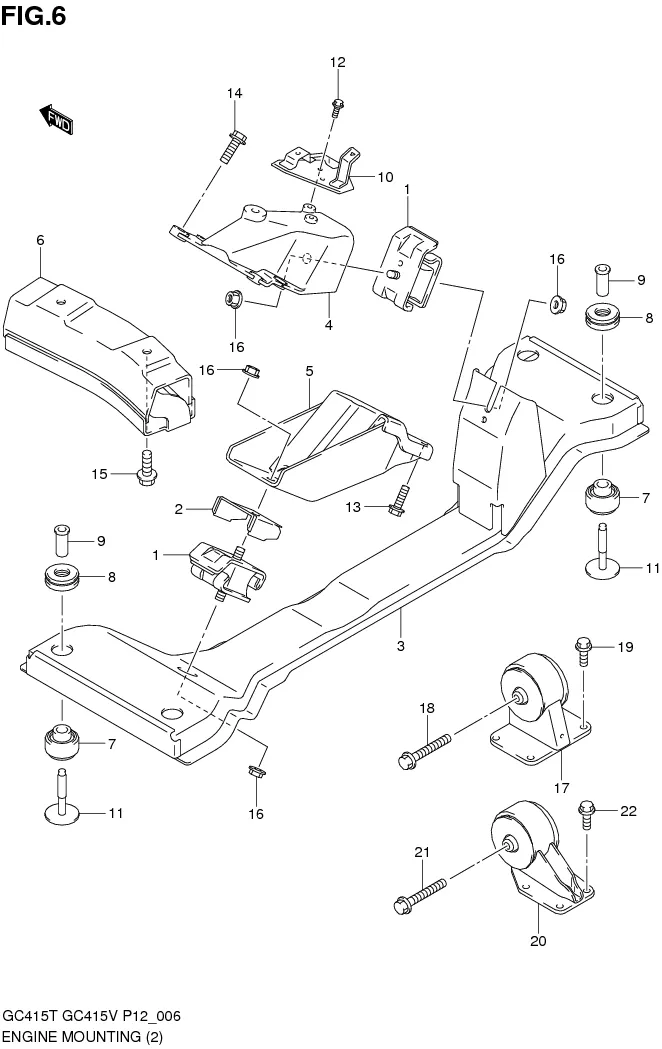

FIG.6 ENGINE MOUNTING (TYPE 2)

FIG.6 ENGINE MOUNTING (TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 11610-60K00-000 MOUNTING, ENGINE FRONT 2 Rp189.000
2 11616-85001-000 COVER, FRONT MTG, L 1 Rp22.000
3 11630-60K00-000 MEMBER, ENG FRONT MTG 1 Rp527.500
4 11640-60K00-000 BRACKET, ENG FR MTG, R 1 Rp1.176.500
5 11650-60K00-000 BRACKET, ENG FR MTG, L 1 Rp210.500
6 11660-60K00-000 BRACKET, ENG MTG MEMBER 1 Rp310.500
7 11684-68H00-000 CUSHION, MTG MEMBER LOWER 4 Rp43.000
8 11686-68H00-000 CUSHION, MTG MEMBER UPPER 4 Rp32.500
9 11687-67H00-000 COLLAR, MTG MEMBER 4 Rp28.500
10 DISCONTINUE
SUB: 17855-60K00-000		 BRACKET, RADIATOR HOSE 1 -
11 09116-10173-000 BOLT, (10X72.5) 4 Rp32.000
12 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
13 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 4 Rp3.500
14 01550-1030B-000
SUB: 01550-1030A-000		 BOLT 4 Rp25.500
15 01550-1030B-000
SUB: 01550-1030A-000		 BOLT 2 Rp25.500
16 08316-1010A-000
SUB: 08316B1010AN000		 NUT 4 Rp3.500
17 11710-60K00-000 MOUNTING, ENG REAR 1 Rp442.500 MT
18 09113-10005-000 BOLT (10X90) 1 Rp27.500 MT
19 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 4 Rp5.500 MT
20 11710-60K10-000 MOUNTING, ENG REAR 1 Rp399.000 AT
21 09113-10005-000 BOLT (10X90) 1 Rp27.500 AT
22 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 4 Rp5.500 AT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
