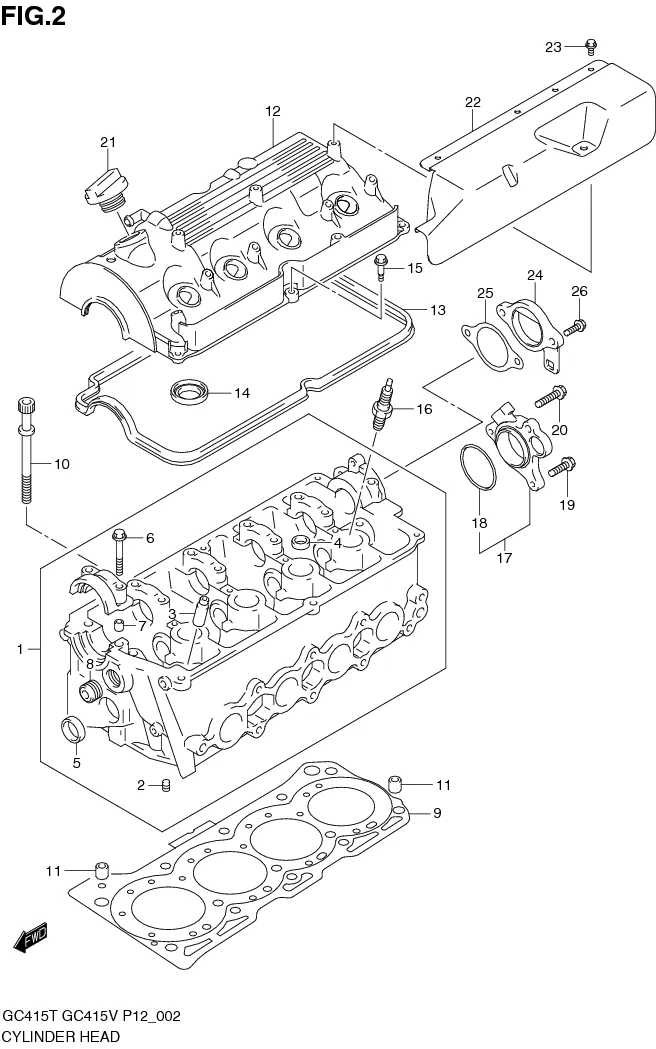

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-52G01-000 HEAD ASSY, CYLINDER 1 Rp15.466.000
2 11112-73010-000 .PLUG, OIL VENTURI 1 Rp24.000
3 11115-60B11-001 .GUIDE, VALVE 16 Rp118.000
4 09241-20006-000 .PLUG (OD:20) 3 Rp18.000
5 09241M30010-000 .PLUG (OD:30) 1 Rp5.500
6 09103-06132-000
SUB: 09103B06132N000		 .BOLT (6X41) 12 Rp3.500
7 09206-08001-000
SUB: 09206B08001N000		 .PIN (6.2X8X11) 12 Rp5.500
8 09246-16021-000
SUB: 09246-16010-000		 .PLUG 1 Rp48.000
9 11141-61J10-000
SUB: 11141-61J00-000		 GASKET 1 Rp615.000
10 11117-73G00-000 BOLT 10 Rp58.500
11 04211M13189-000 PIN 2 Rp9.000
12-1 11170-61J02-000
SUB: 11170-61J01-000		 COVER, CYLINDER HEAD 1 Rp478.000 TYPE 1
12-2 11170-61J02-000 COVER, CYLINDER HEAD 1 Rp478.000 TYPE 2
13 11189-71C00-000 GASKET 1 Rp129.500
14 11179-71C01-000 O RING 4 Rp29.000
15 11178-71C10-000 BOLT 6 Rp17.500
16-1 09482-00427-000 SPARK PLUG (NGK,BKR6E) 4 Rp55.000
16-2 09482-00870-000
SUB: 09482-00429-000		 SPARK PLUG (DENSO,K20PR-U) 4 Rp20.500
17 11160-76810-000 CASE SET, SENSOR 1 Rp384.000
18 11162-71C10-000 .O RING 1 Rp25.500
19 09103-06211-000 BOLT (6X25) 2 Rp19.500
20 01550-0640A-000 BOLT 1 Rp5.500
21 16920-83G02-000
SUB: 16920-83G00-000		 CAP, OIL FILLER 1 Rp149.500
22 11198-61J02-000 COVER, IGNITION COIL 1 Rp146.500
23 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 5 Rp21.500
24 17570-80C00-000 COVER, WATER OUTLET 1 Rp143.000
25 17699-60B02-000 GASKET 1 Rp47.500
26 DISCONTINUE
SUB: 01570-0825A-000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
