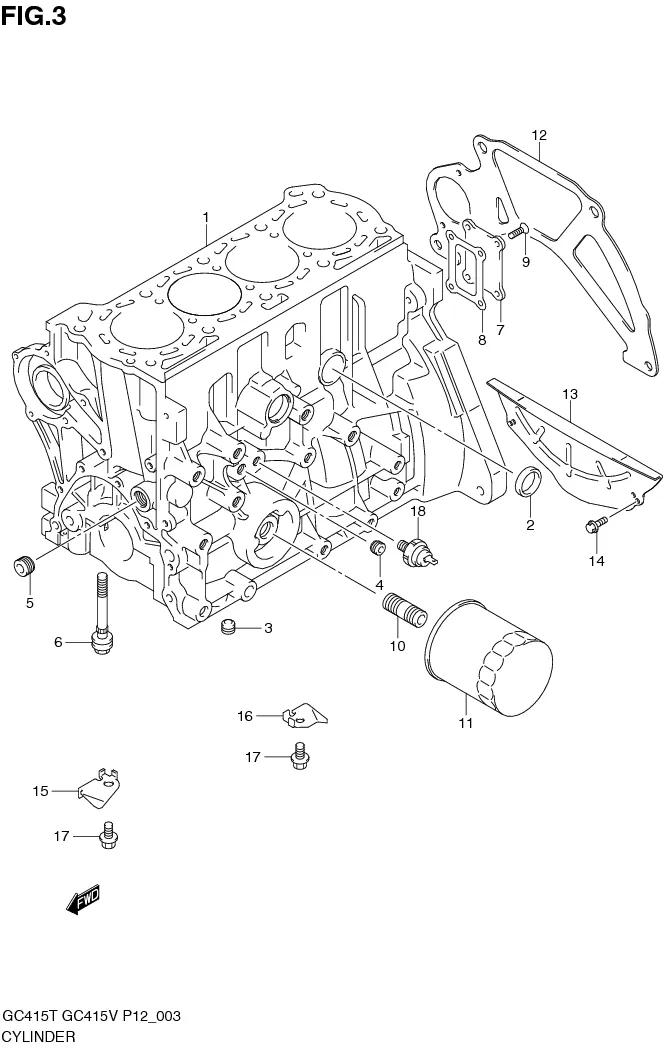

FIG.3 CYLINDER BLOCK

FIG.3 CYLINDER BLOCK
No No. Part Description Qty Price Per Pcs Remarks
1 11200-58B05-000
SUB: 11200-77511L000		 BLOCK ASSY, CYLINDER 1 Rp17.486.000
2 09241M30010-000 .PLUG 4 Rp5.500
3 09246M06001-000
SUB: 09246M06002-000		 .PLUG, OIL GALLERY INNER 1 Rp19.500
4 09246M06001-000
SUB: 09246M06002-000		 .PLUG, OIL GALLERY OUTER 1 Rp19.500
5 09246-08002-000 .PLUG, OIL GALLERY 2 Rp21.500
6 11260-50G01-000 .BOLT, CRANK BEARING CAP 10 Rp41.500
7 11221-60A00-000 .PLATE, CYLINDER BLOCK 1 Rp53.500
8 11229-60A00-000
SUB: 11229-60A00L000		 .GASKET, CYLINDER BLOCK PLATE 1 Rp11.500
9 02122-0612A-000
SUB: 02122B0612AN000		 .SCREW 4 Rp3.500
10 11241-86FA0-000 STAND, OIL FILTER 1 Rp88.000
11 16510-61J00-000 FILTER ASSY, OIL 1 Rp37.000
12 DISCONTINUE
SUB: 11311-61J00-000		 PLATE, CLUTCH HOUSING UPPER 1 -
13 11320-61J01-000 PLATE, CLUTCH HOUSING LOWER 1 Rp158.000
14 02162-0610A-000 BOLT 2 Rp5.000
15-1 11213-72F02-000
SUB: 11213-72F01-000		 PLATE, BREATHER FRONT 1 Rp43.500 TO 2009-7
15-2 11213-72F02-000 PLATE, BREATHER FRONT 1 Rp43.500 FROM 2009-8
16 11214-72F01-000 PLATE, BREATHER REAR 1 Rp40.500
17 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
18 37820-820P0-000
SUB: 37820-82002-000		 SWITCH ASSY, OIL PRESSURE 1 Rp127.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
