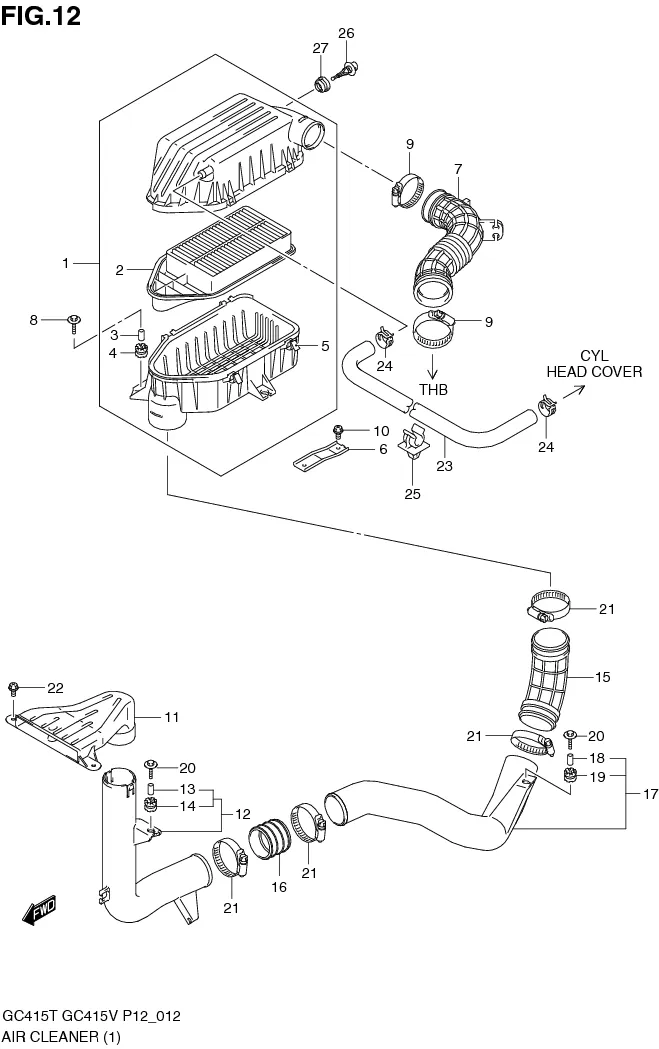

FIG.12 AIR CLEANER (TYPE 1)

FIG.12 AIR CLEANER (TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1 13700-61J00-000 CLEANER ASSY, AIR 1 Rp298.000
2 13780-61J00-000 .ELEMENT 1 Rp98.000
3 13877-65D00-000 .COLLAR 3 Rp45.000
4 13878-65D00-000 .CUSHION 3 Rp43.000
5 13755-54G00-000 .CLIP 2 Rp41.000
6 13811-61J00-000 BRACKET 2 Rp14.000
7 13881-61J00-000 HOSE, OUTLET 1 Rp201.000
8 09116-06171-000 BOLT (6X30) 3 Rp20.500
9 09402-70503-000 CLAMP 2 Rp91.500
10 02162-0612A-000 BOLT 2 Rp11.000
11 13765-61J00-000 PIPE, SUCTION 1 Rp62.500
12 DISCONTINUE
SUB: 13870-61J00-000		 PIPE, INLET 1 -
13 13877-65D00-000 .COLLAR 2 Rp45.000
14 13878-65D00-000 .CUSHION 2 Rp43.000
15 13872-61J00-000 HOSE, INLET 1 Rp70.000
16 13873-61J00-000 JOINT 1 Rp16.500
17 DISCONTINUE
SUB: 13875-61J00-000		 PIPE, INLET NO.2 1 -
18 13877-65D00-000 .COLLAR 1 Rp45.000
19 13878-65D00-000 .CUSHION 1 Rp43.000
20 09116-06171-000 BOLT (6X30) 3 Rp20.500
21 09402-70503-000
SUB: 09402-82511-000		 CLAMP 4 Rp91.500
22 02162-0612A-000 BOLT 2 Rp11.000
23 11191-61J00-000 HOSE, BREATHER 1 Rp41.500
24 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000
25 09403-18305-000 CLAMP 1 Rp18.500
26 13650-52G00-000 SENSOR, AIR TEMP 1 Rp762.500
27 13655-77E10-000
SUB: 13655-77E00-000		 GROMMET 1 Rp30.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
