ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET FIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 MUFFLERFIG.16 FUEL PUMPFIG.17 DELIVERY PIPEFIG.18 OIL PUMPFIG.19 WATER PUMPFIG.20 RADIATOR (MT)FIG.21 RADIATOR (AT)FIG.22 WATER HOSE (GL)FIG.23 WATER HOSE (GLX)FIG.24 EMISSION CONTROLFIG.25 LABEL

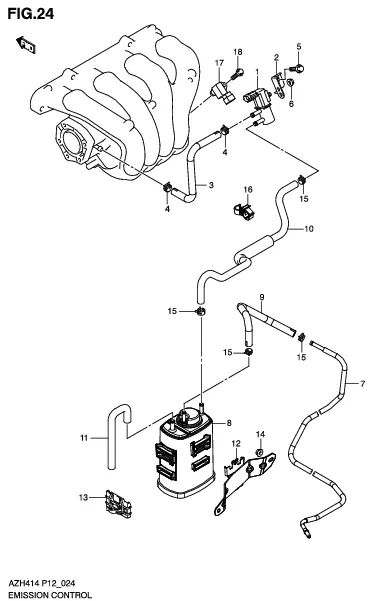

FIG.24 EMISSION CONTROL

FIG.24 EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114-58M00-000 VALVE ASSY, DUTY FOR PURGE 1 Rp887.500
2 18417-58M00-000 BRACKET, VSV 1 Rp466.000
3 18564-58M00-000 HOSE, PURGE (VSV TO INMF) 1 Rp284.500
4 09401-11L04-000 CLIP 2 Rp33.000
5 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
6 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
7 18351-58M00-000 PIPE, PURGE (RH) 1 Rp3.958.000
8 18560-58M00-000
SUB: 18560B58M00N000		 CANISTER 1 Rp342.000
9 18561-58M00-000 HOSE, CANISTER INLET 1 Rp284.500
10 18562-58M00-000 HOSE, PURGE (CSTR TO VSV) 1 Rp364.000
11 18567M74L00-000 HOSE, PURGE AIR SUCTION 1 Rp14.500
12 18570-71L11-000 BRACKET, CANISTER (RH) 1 Rp162.500
13 18581-58M00-000 CLAMP, CANISTER SUCTION 1 Rp10.000
14 09159-06076-000 NUT 2 Rp19.500
15 09401-11L04-000 CLIP 4 Rp33.000
16 09408-00L14-000 CLAMP 2 Rp28.500
17 18590-58M00-000 SENSOR, MAP 1 Rp1.313.000
18 01550-0620C-000 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
