ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET FIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 MUFFLERFIG.16 FUEL PUMPFIG.17 DELIVERY PIPEFIG.18 OIL PUMPFIG.19 WATER PUMPFIG.20 RADIATOR (MT)FIG.21 RADIATOR (AT)FIG.22 WATER HOSE (GL)FIG.23 WATER HOSE (GLX)FIG.24 EMISSION CONTROLFIG.25 LABEL

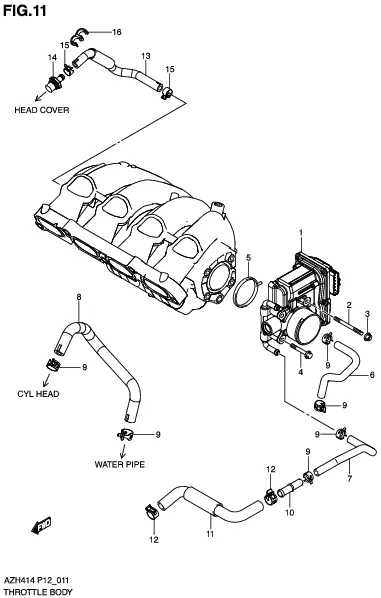

FIG.11 THROTTLE BODY

FIG.11 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-71L00-000 BODY ASSY, THROTTLE 1 Rp7.284.500
2 01421-0650A-000 STUD BOLT 2 Rp14.000
3 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
4 01550-0650A-000 BOLT 2 Rp5.500
5 13421-58M00-000
SUB: 13421B58M00N000		 GASKET, THROTTLE BODY 1 Rp19.500
6 13491-58M00-000 HOSE, WTR THROT BODY INLET 1 Rp1.386.500
7 13492-58M00-000 HOSE, WTR THROT BODY OUTLET 1 Rp35.000
8 17698-58M00-000 HOSE, WATER BYPASS 1 Rp110.500
9 09401-12L03-000 CLIP 6 Rp179.000
10 11190-58M00-000 UNION, BREATHER 1 Rp192.500
11 11191-73K00-000 HOSE, BREATHER 1 Rp181.000
12 11199M68K00-000
SUB: 09401-18404-000		 CLIP 2 Rp11.000
13 11193-71L00-000 HOSE, PCV 1 Rp217.500
14 18118-71L01-000 VALVE, PCV 1 Rp189.000
15 09401-13414-000 CLIP 2 Rp18.000
16 09408-00155-000 CLAMP 1 Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
