ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET FIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 MUFFLERFIG.16 FUEL PUMPFIG.17 DELIVERY PIPEFIG.18 OIL PUMPFIG.19 WATER PUMPFIG.20 RADIATOR (MT)FIG.21 RADIATOR (AT)FIG.22 WATER HOSE (GL)FIG.23 WATER HOSE (GLX)FIG.24 EMISSION CONTROLFIG.25 LABEL

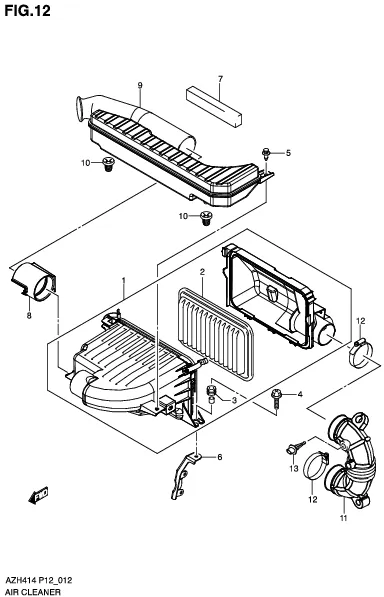

FIG.12 AIR CLEANER

FIG.12 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-58M10-000 CLEANER ASSY, AIR 1 Rp735.000
2 13780-58M00-000
SUB: 13780-58M10-000		 •ELEMENT 1 Rp177.500
3 13723-58M00-000 •CUSHION 2 Rp21.000
4 09136-06141-000 SCREW (6X25) 2 Rp17.000
5 09409M08006-000
SUB: 09409M08L01-000		 CLIP 1 Rp5.000
6 13733-71L00-000
SUB: 13733B71L00N000		 BRACKET, AIR CLEANER 1 Rp9.500
7 13799-71L00-000 SEAL, RESONATOR 1 Rp48.500
8 13825-71L00-000
SUB: 13825B71L00N000		 JOINT, AIR INLET PIPE 1 Rp23.000
9 13870-58M00-000 PIPE, AIR CLNR SUCT 1 Rp527.000
10 13871-73K00-000 GROMMET, AIR INTK 2 Rp22.500
11 13881-58M10-000 HOSE, AIR CLNR OUT 1 Rp483.000
12 09402-70503-000 CLAMP 2 Rp91.500
13 13650-52G00-000 SENSOR, INLET AIR TEMP 1 Rp762.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
